The Hager KNX radio wall-transmitter 1gang flat solar quicklink (S.1, white glossy) offers wireless KNX control for lighting or blinds. Solar powered for battery-free operation, it features 2 channels, on/off, up/down, and up to 6 scenes with factory reset. Quicklink setup, flat surface mounting, 14 mm slim thermoplastic body, IP20, -5 to 45 °C, and dismantling protection. Ideal for retrofits and system extensions.

EAN

4011334369356

Packaging

1 Piece

Actuators, controls, gateways, …

KNX Radio wall transmitter 2-gang quicklink 4-channel K.5 stainless steel 85655182

Technical properties
Environmental value
Documentations
More products

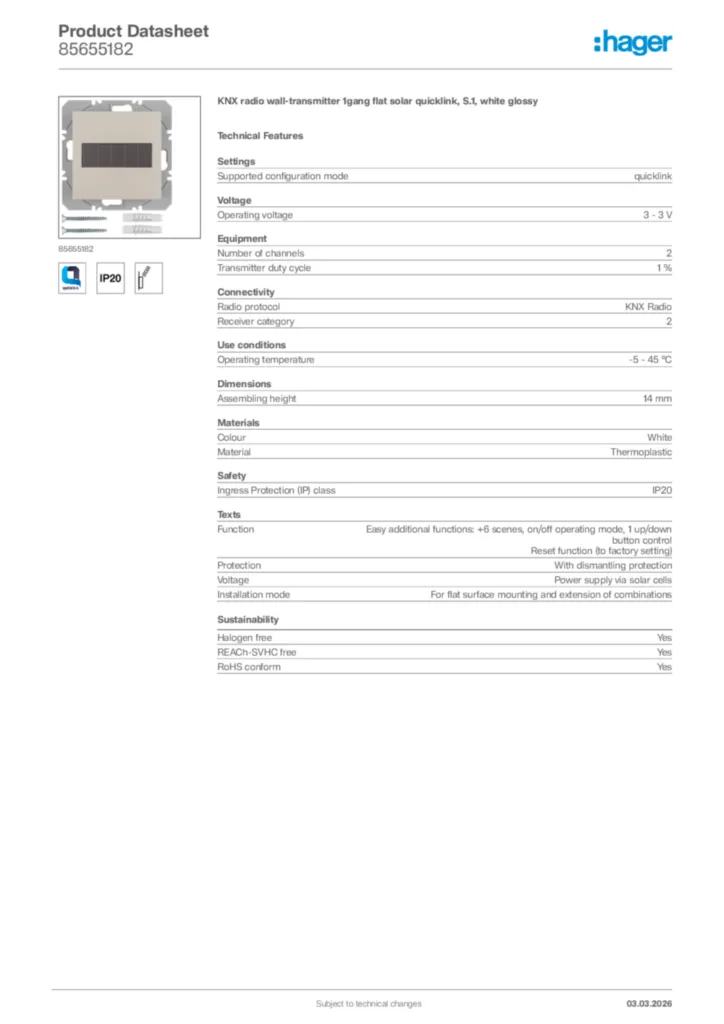

Download the data sheet

Technical properties

Supported configuration mode

quicklink

Operating voltage

3 - 3 V

Number of channels

2
Transmitter duty cycle

1 %

Radio protocol

KNX Radio
Receiver category

2

Operating temperature

-5 - 45 °C

Assembling height

14 mm

Colour

White
Material

Thermoplastic

Ingress Protection (IP) class

IP20

Function

Easy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Reset function (to factory setting)
Protection

With dismantling protection
Voltage

Power supply via solar cells
Installation mode

For flat surface mounting and extension of combinations

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
