The Hager KNX radio 4-gang quicklink push-button (K.5, aluminum, matt lacquered) provides flexible control of lighting and blinds via KNX RF. Each of the 4 channels is freely configurable for up/down or left/right, acting as receiver for local loads and transmitter for remote functions. Features configurable TX/RX behavior, factory reset, dismantling protection, -5…45°C operation, receiver category 2, 1% duty cycle.

EAN

4011334381808

Packaging

1 Piece

Actuators, controls, gateways, …

KNX RF Push-button 4-gang quicklink Anthracite Matt, Configurable TX/RX 85648177

Technical properties
Environmental value
Documentations
More products

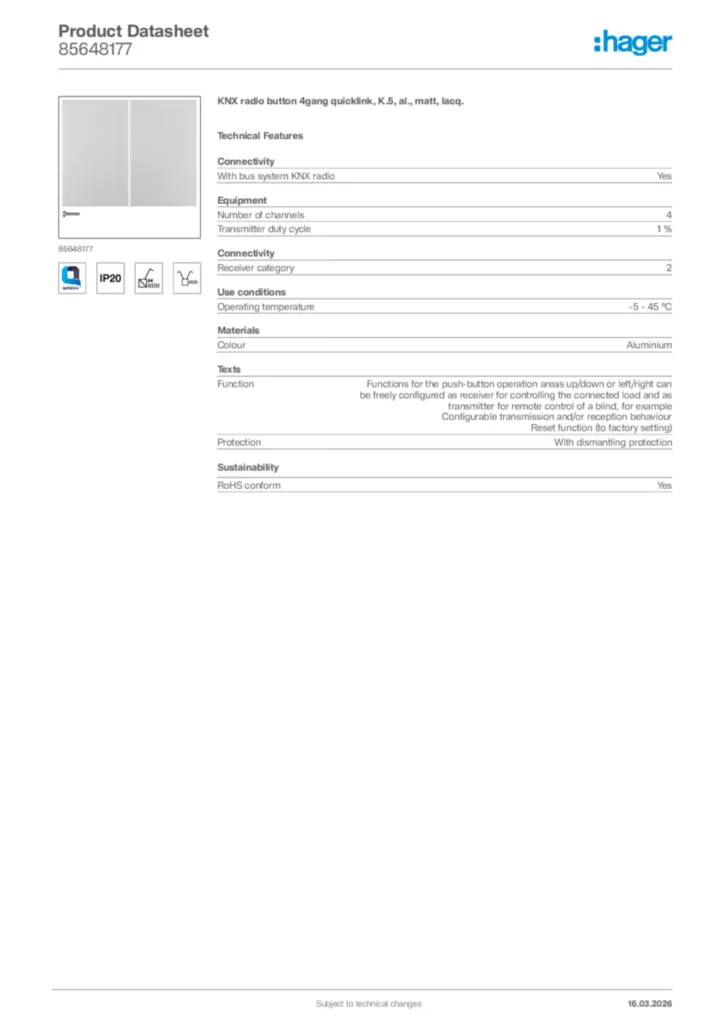

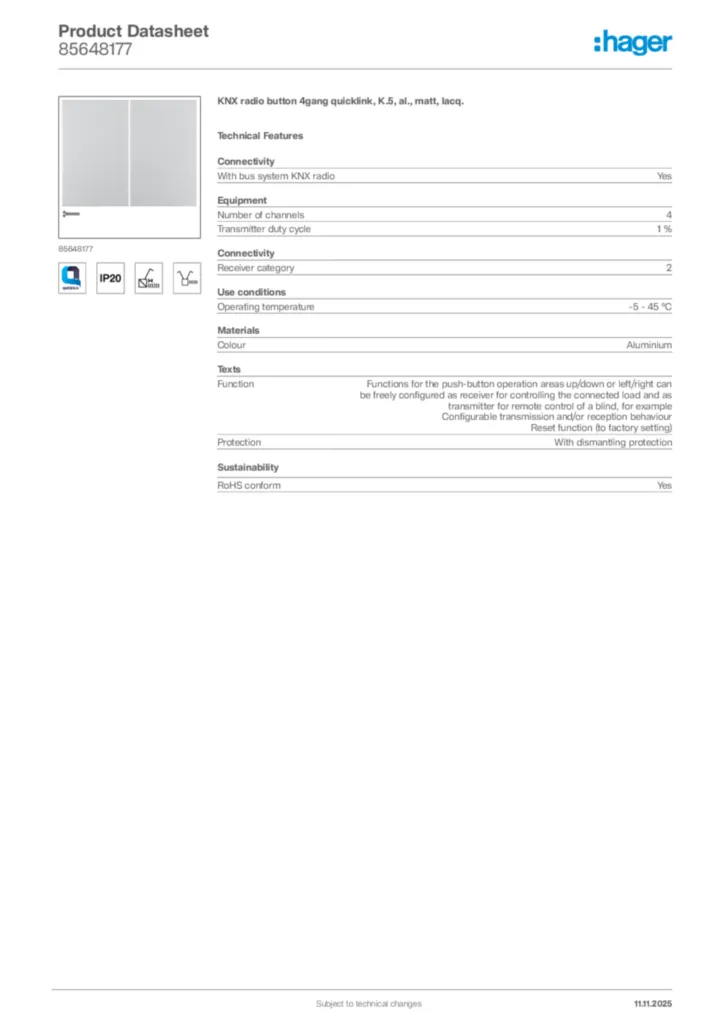

Download the data sheet

Technical properties

Number of channels

4
Transmitter duty cycle

1 %

With bus system KNX radio

Yes
Receiver category

2

Operating temperature

-5 - 45 °C

Colour

Aluminium

Function

Functions for the push-button operation areas up/down or left/right can be freely configured as receiver for controlling the connected load and as transmitter for remote control of a blind, for example, Configurable transmission and/or reception behaviour, Reset function (to factory setting)
Protection

With dismantling protection

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
