The Hager KNX radio motion detector quicklink S.1 (white glossy) delivers automated, energy-saving lighting control at a 2.2 m mounting height. Quicklink setup, 5-1000 lx threshold, 1 s-180 min delay, and 90-180° horizontal detection (45-90° adjustable). KNX radio bus included. Features pre-switch-off warning, presence-simulation memory, teach-in, keylock, 2 h party mode, and factory reset. Ideal for comfort and security.

EAN

4011334374596

Packaging

1 Piece

KNX Touch Control TFT with integrated bus coupling, 6 keys, Black Glossy 85346182

Technical properties
Environmental value
Documentations
More products

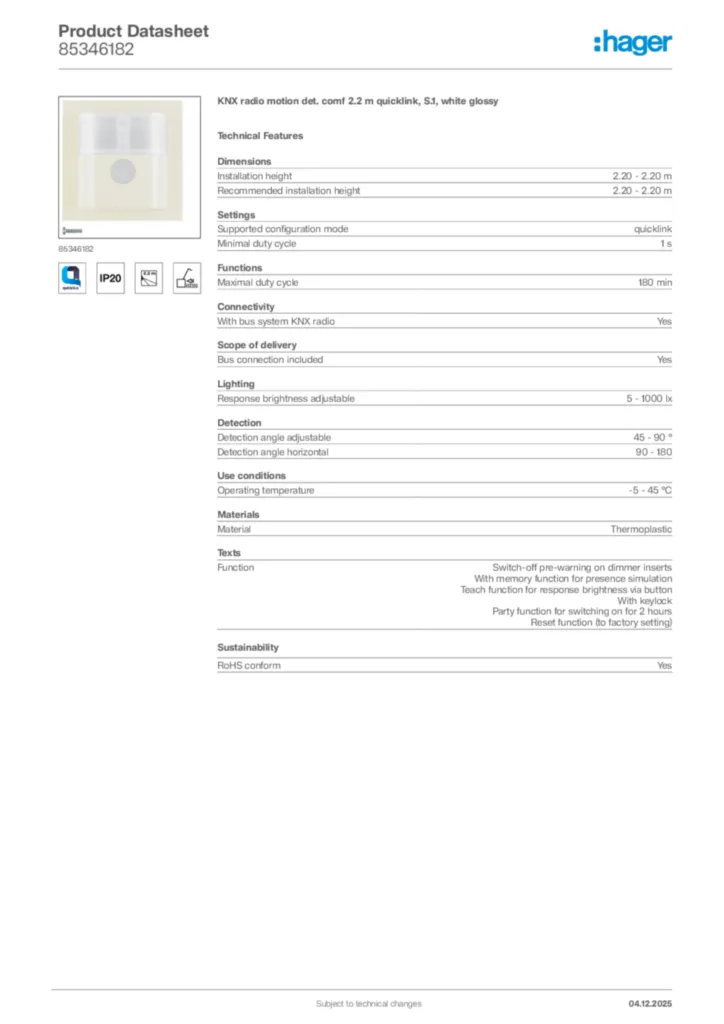

Download the data sheet

Technical properties

Installation height

2.20 - 2.20 m
Recommended installation height

2.20 - 2.20 m

Supported configuration mode

quicklink
Minimal duty cycle

1 s

Maximal duty cycle

180 min

With bus system KNX radio

Yes

Bus connection included

Yes

Response brightness adjustable

5 - 1000 lx

Detection angle adjustable

45 - 90 °
Detection angle horizontal

90 - 180

Operating temperature

-5 - 45 °C

Material

Thermoplastic

Function

Switch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)

Max. transmission range frontally

8 m
Max. transmission range sideways

6 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
