The Hager KNX radio motion detector comfort, K.5 aluminium matt, automates lighting via KNX quicklink at a 2.2 m mounting height. Adjustable brightness 5-1000 lx and 90-180° coverage (45-90° adjustable sector) ensure precise detection. Timers 1 s-180 min, switch-off pre-warning, memory/presence simulation, teach-in, keylock, and 2-hour party mode enhance control. Bus connector included. Operating range -5 to 45°C.

EAN

4011334383093

Packaging

1 Piece

KNX Radio Motion Detector Comfort quicklink 2.2 m 5-1000 lx 90-180 deg 85346177

Technical properties
Environmental value
Documentations
More products

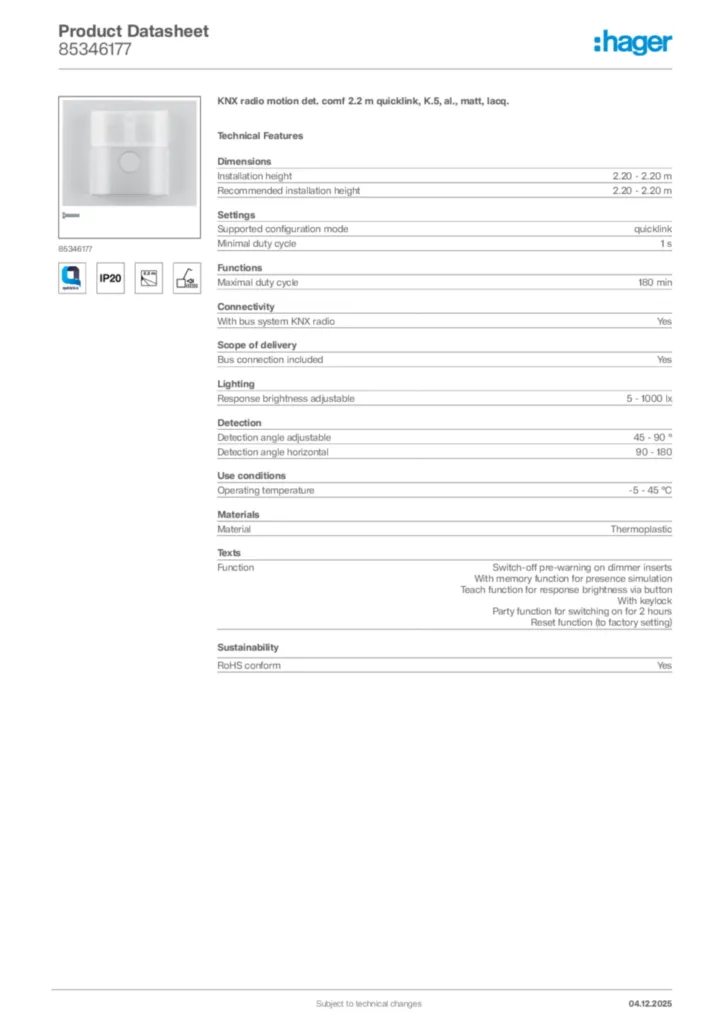

Download the data sheet

Technical properties

Installation height

2.20 - 2.20 m
Recommended installation height

2.20 - 2.20 m

Supported configuration mode

quicklink
Minimal duty cycle

1 s

Maximal duty cycle

180 min

With bus system KNX radio

Yes

Bus connection included

Yes

Response brightness adjustable

5 - 1000 lx

Detection angle adjustable

45 - 90 °
Detection angle horizontal

90 - 180

Operating temperature

-5 - 45 °C

Material

Thermoplastic

Function

Switch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)

Max. transmission range frontally

8 m
Max. transmission range sideways

6 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
