The Hager KNX Radio Motion Detector Comfort (quicklink), pure white velvety, automates lighting and presence control. Optimized for 2.2 m mounting, it offers 90-180° coverage (45-90° adjustable sector), 5-1000 lx response with teach, 1 s-180 min timing, and KNX RF with included connector. Features pre‑warning dimming, presence‑simulation memory, keylock, 2‑hour party mode, and factory reset. Operates -5 to 45°C.

EAN

4011334374770

Packaging

1 Piece

KNX radio motion detector Quicklink 2.2 m 180° 5-1000 lx pure white glossy 85346129

Technical properties
Environmental value
Documentations
More products

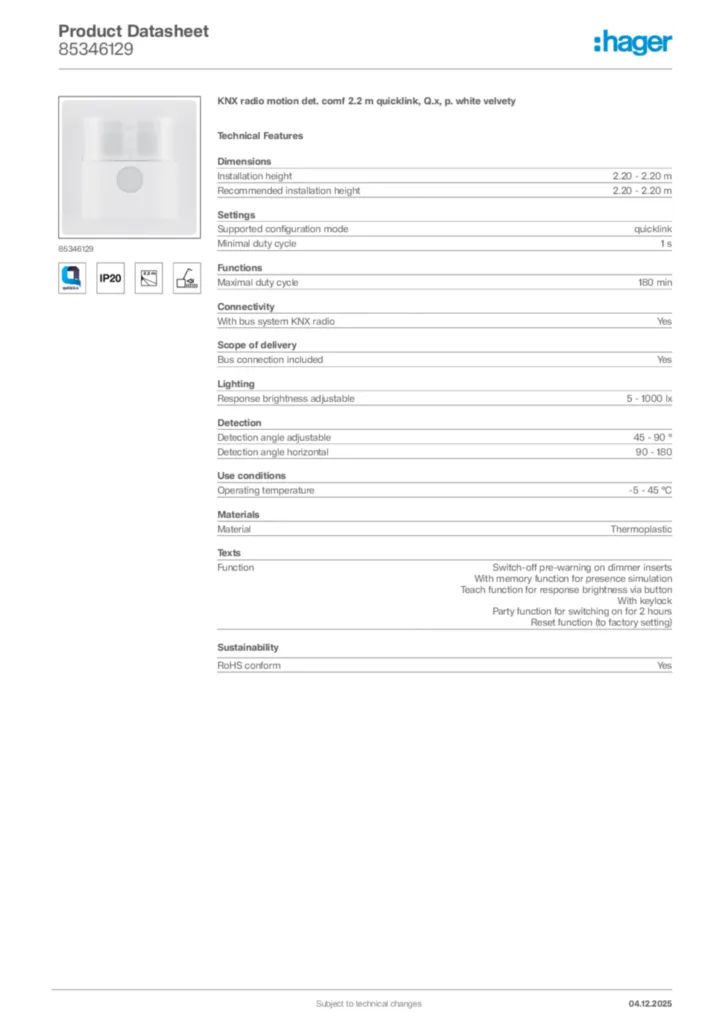

Download the data sheet

Technical properties

Installation height

2.20 - 2.20 m
Recommended installation height

2.20 - 2.20 m

Supported configuration mode

quicklink
Minimal duty cycle

1 s

Maximal duty cycle

180 min

With bus system KNX radio

Yes

Bus connection included

Yes

Response brightness adjustable

5 - 1000 lx

Detection angle adjustable

45 - 90 °
Detection angle horizontal

90 - 180

Operating temperature

-5 - 45 °C

Material

Thermoplastic

Function

Switch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)

Max. transmission range frontally

8 m
Max. transmission range sideways

6 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
