The Hager KNX radio motion detector Comfort 1.1 m Quicklink K.1 (polar white glossy) provides reliable presence-based lighting control. Quicklink KNX RF setup with bus included; adjustable brightness 5-1000 lx; detection 90-180° (adjustable 45-90°); timing 1 s-180 min. Features switch-off pre-warning, memory/presence simulation, teach-in, keylock, 2-hour party mode, reset. Ideal for residential and light commercial use.
EAN
4011334374497
VPE
1 piece
KNX radio motion detector quicklink 1.1 m, 90-180°, 5-1000 lx 85345179
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Dimensions
-
Installation height1.10 - 1.10 m
-
Recommended installation height1.10 - 1.10 m
Settings
-
Supported configuration modequicklink
-
Minimal duty cycle1 s
Functions
-
Maximal duty cycle180 min
Connectivity
-
With bus system KNX radioYes
Scope of delivery
-
Bus connection includedYes
Lighting
-
Response brightness adjustable5 - 1000 lx
Detection
-
Detection angle adjustable45 - 90 °
-
Detection angle horizontal90 - 180
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
MaterialThermoplastic
-
ColourPolar white
-
RAL codeSimilar to RAL 9010
Texts
-
FunctionSwitch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)
Reach distance
-
Max. transmission range frontally12 m
-
Max. transmission range sideways8 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

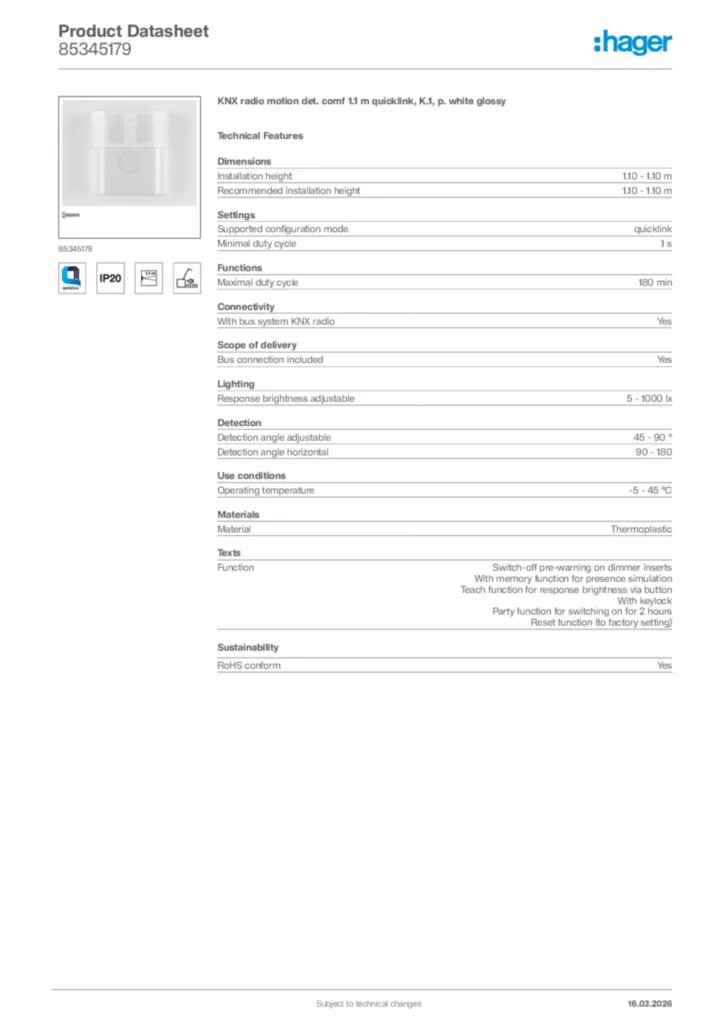

GeneratedProductDatasheet
Hager Product data sheet 85345179
KNX radio motion det. comf 1.1 m quicklink, K.1, p. white glossy
PDF -
ProductECDeclaration
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF317,13 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF327,96 kB
