Hager KNX radio motion detector Comfort, K.5 aluminium matt lacquer, delivers wireless presence-based lighting control at 1.1 m via quicklink. Adjustable detection 90-180° (45-90° segment), brightness 5-1000 lx, and run times 1 s-180 min boost comfort and energy savings. Includes KNX bus link, switch-off pre-warning, presence-simulation memory, teach function, keylock, 2-hour party mode, and factory reset.
EAN
4011334382331
VPE
1 piece
KNX radio motion detector Quicklink 1.1 m 90-180 deg 5-1000 lx anthracite K.1 85345177
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Dimensions
-
Installation height1.10 - 1.10 m
-
Recommended installation height1.10 - 1.10 m
Settings
-
Supported configuration modequicklink
-
Minimal duty cycle1 s
Functions
-
Maximal duty cycle180 min
Connectivity
-
With bus system KNX radioYes
Scope of delivery
-
Bus connection includedYes
Lighting
-
Response brightness adjustable5 - 1000 lx
Detection
-
Detection angle adjustable45 - 90 °
-
Detection angle horizontal90 - 180
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
MaterialThermoplastic
-
ColourAluminium
-
RAL codeSimilar to RAL 9006
Texts
-
FunctionSwitch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)
Reach distance
-
Max. transmission range frontally12 m
-
Max. transmission range sideways8 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

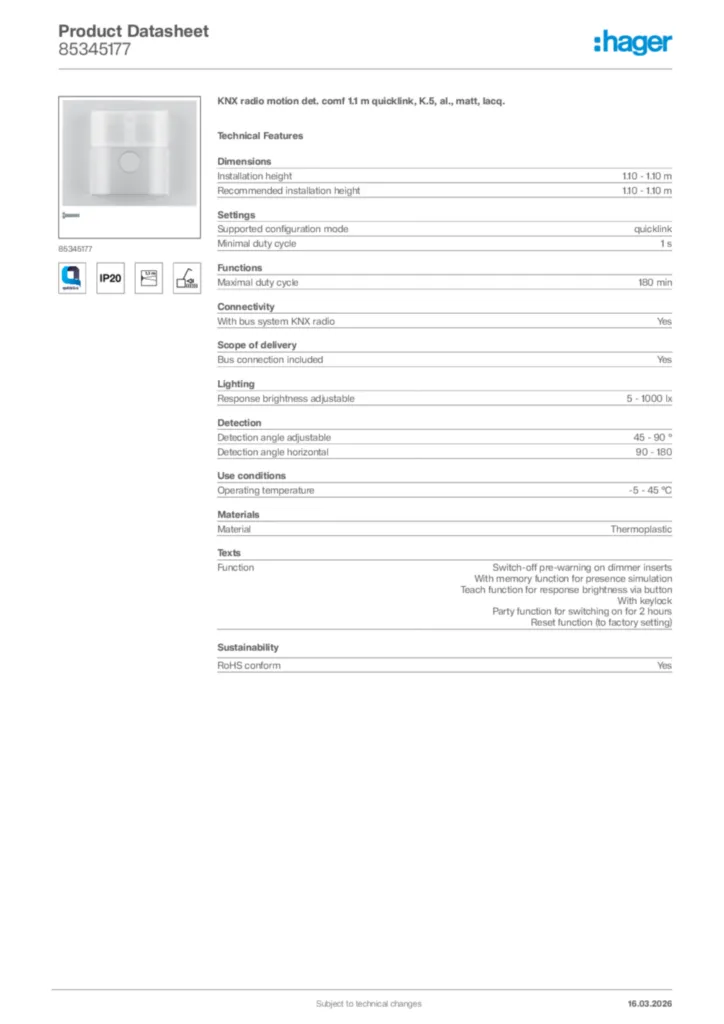

GeneratedProductDatasheet
Hager Product data sheet 85345177
KNX radio motion det. comf 1.1 m quicklink, K.5, al., matt, lacq.
PDF -
ProductECDeclaration
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF317,13 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF327,96 kB
