The Hager K.1 KNX radio motion detector comfort (anthracite matt) enables wireless quicklink commissioning at 1.1 m height for precise presence-based lighting control. Adjustable brightness 5-1000 lx, detection 45-90° (90-180° horiz.), timer 1 s-180 min. Features memory for presence simulation, dimmer pre‑warning, teach-in button, keylock, 2 h party mode, factory reset. Thermoplastic, −5 to 45°C. Ideal for corridors and entrances.

EAN

4011334374527

Packaging

1 Piece

KNX RF motion detector quicklink 1.1 m, 5-1000 lx, 90-180°, polar white 85345175

Technical properties
Environmental value
Documentations
More products

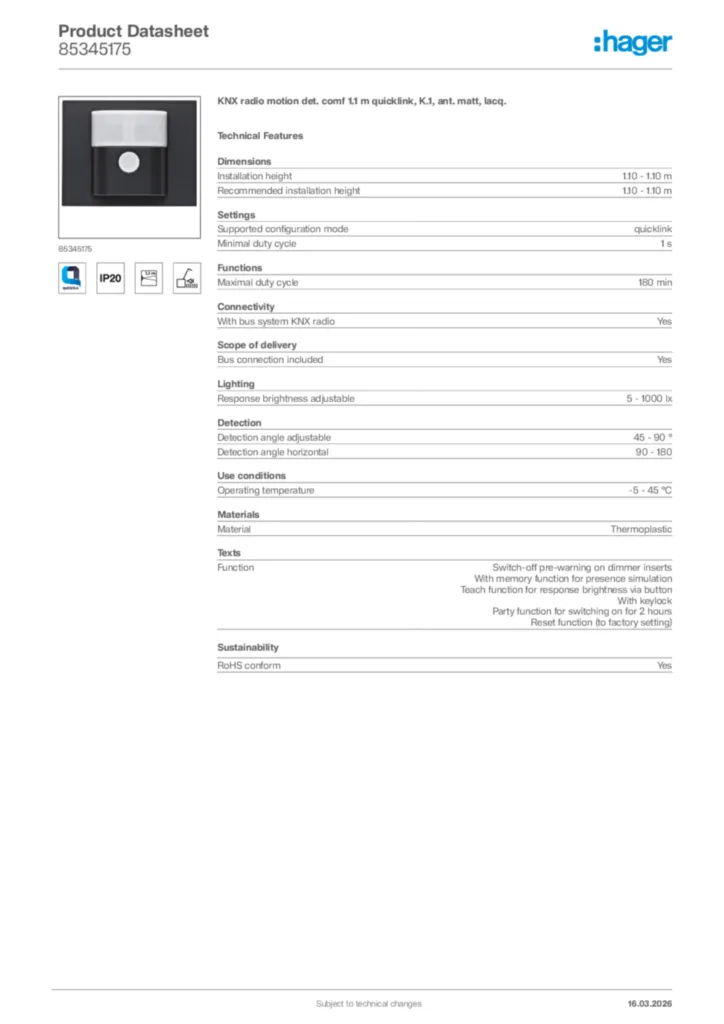

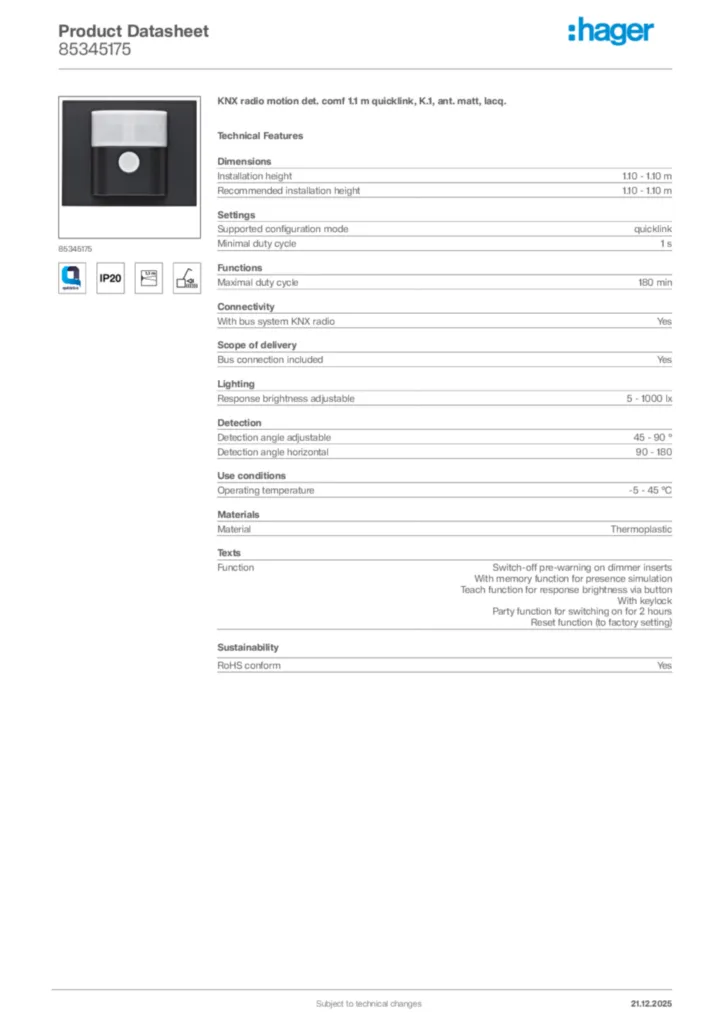

Download the data sheet

Technical properties

Installation height

1.10 - 1.10 m
Recommended installation height

1.10 - 1.10 m

Supported configuration mode

quicklink
Minimal duty cycle

1 s

Maximal duty cycle

180 min

With bus system KNX radio

Yes

Bus connection included

Yes

Response brightness adjustable

5 - 1000 lx

Detection angle adjustable

45 - 90 °
Detection angle horizontal

90 - 180

Operating temperature

-5 - 45 °C

Material

Thermoplastic

Function

Switch-off pre-warning on dimmer inserts, With memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours, Reset function (to factory setting)

Max. transmission range frontally

12 m
Max. transmission range sideways

8 m

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
