S.x KNX (TP+EASY) Movement detector module 1,10m 80262180
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Technical properties
Dimensions
-
Recommended installation height1.10 - 1.10 m
Settings
-
Supported configuration modeETS, easy
-
Minimal duty cycle10 s
Functions
-
Maximal duty cycle30 min
Connectivity
-
With bus system KNX radioNo
Voltage
-
Operating voltage over bus21 - 32 V
Scope of delivery
-
Bus connection includedYes
Electric current
-
Bus current consumption data transfer10 mA
Lighting
-
Response brightness adjustable5 - 1000 lx
Detection
-
Detection angle adjustable45 - 90 °
-
Detection angle horizontal90 - 180
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
MaterialMetal, Plastic
Texts
-
Push buttonWith button for automatic/permanent ON/permanent OFF
-
Operating modeWith test mode, Master/slave operation for covering large detection areas, With 3 operating modes: automatic/permanent ON/permanent OFF
-
FunctionPresence simulation, With party function
-
Installation modeWith spreader claws, With dismantling protection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

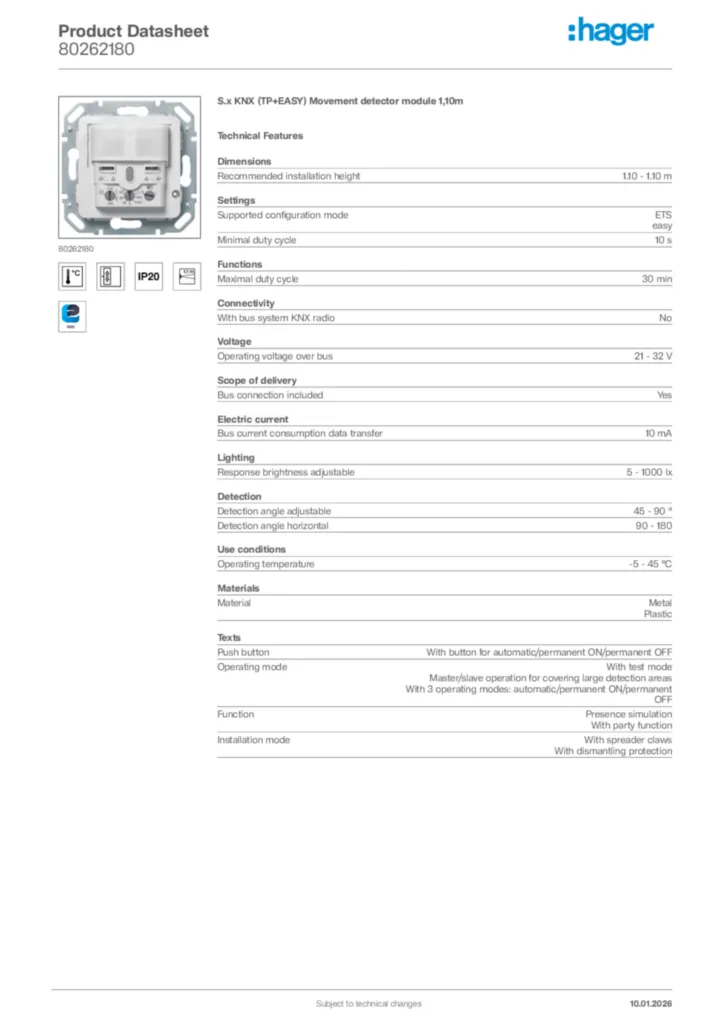

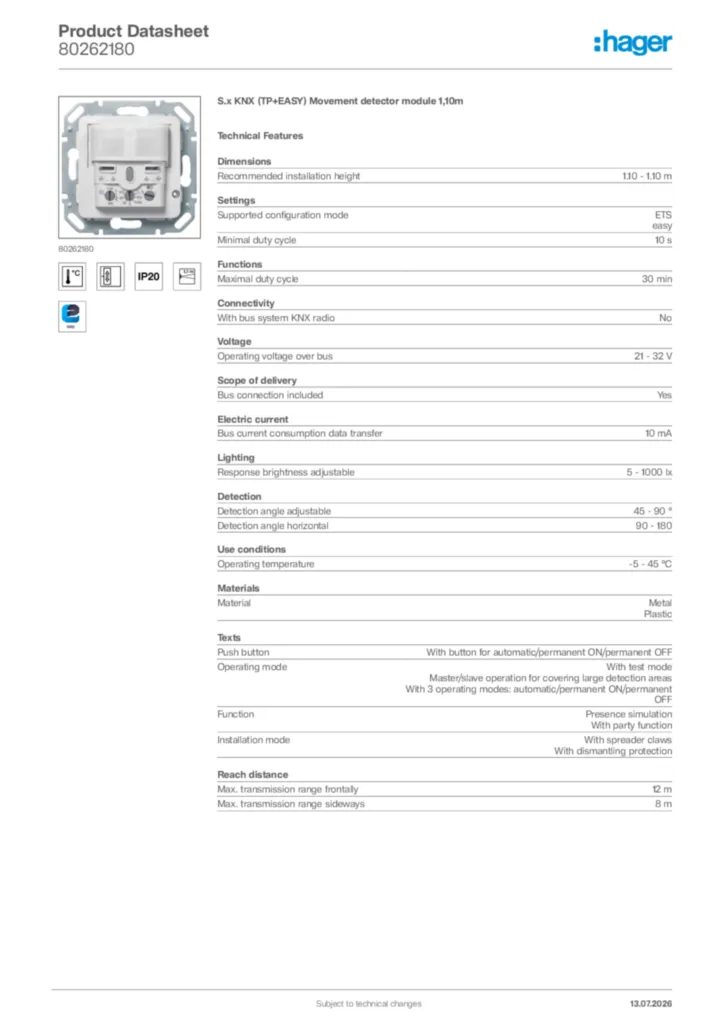

Hager Product data sheet 80262180
S.x KNX (TP+EASY) Movement detector module 1,10m
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-07-30
PDF257,09 kB
