KNX glass sensor 2g thermostat, display, intg bus coupl. , KNX-TS sensor, bl. 75642035
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.must_have_products.title
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Power
-
Current consumption23 mA
Dimensions
-
Built-in depth24.20 mm
-
Built-in depth flush-mounted boxes27 mm
-
Height160 mm
-
Width86 mm
-
Depth37.70 mm
Equipment
-
Number of actuation points6
Controls and indicators
-
With LED indicationYes
Materials
-
ColourBlack
-
RAL codeSimilar to RAL 9005
-
MaterialGlass
-
Surface finishGlossy
Accessories
-
Has labelling fieldNo
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions, With valve protection function
-
Installation modeFor vertical mounting
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
TemperatureAdditional connection for external temperature sensor, Temperature measurement via internal Temperature sensor or external communication object
-
VoltageOperation with non-choked output of KNX voltage supply possible (pay attention to current consumption), Separate auxiliary power supply needed
Scope of delivery
-
Bus connection includedYes
Data act compliance
-
Is generating dataYes
-
Data typesGeneric KNX telegram, Temperature measurement, Thermostat
-
Data formatsKNX (TP)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

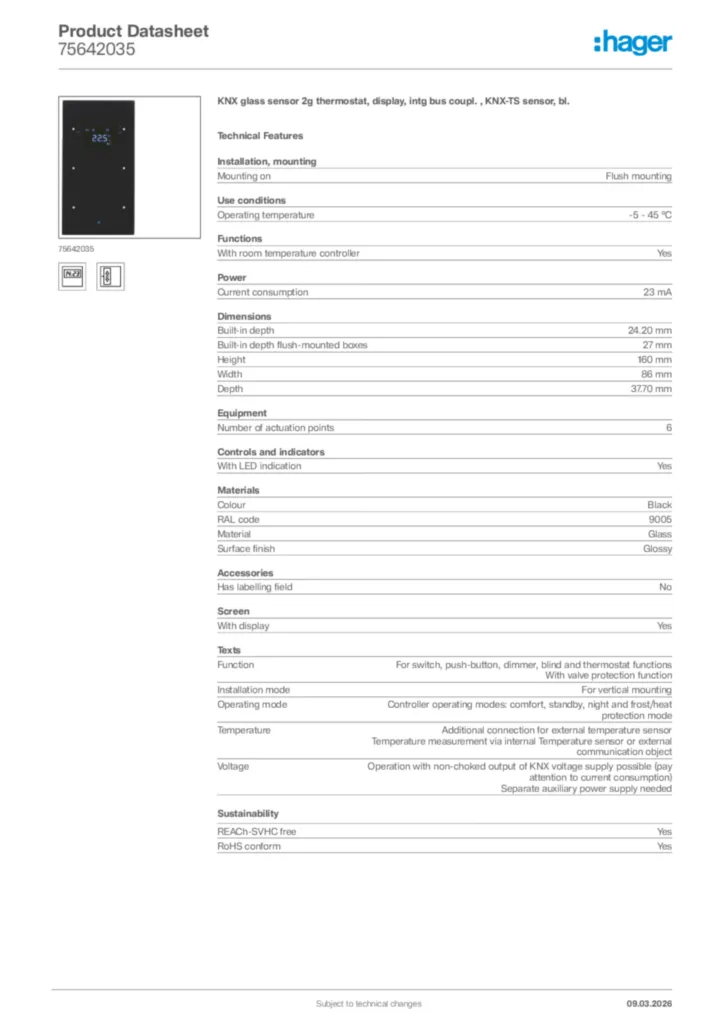

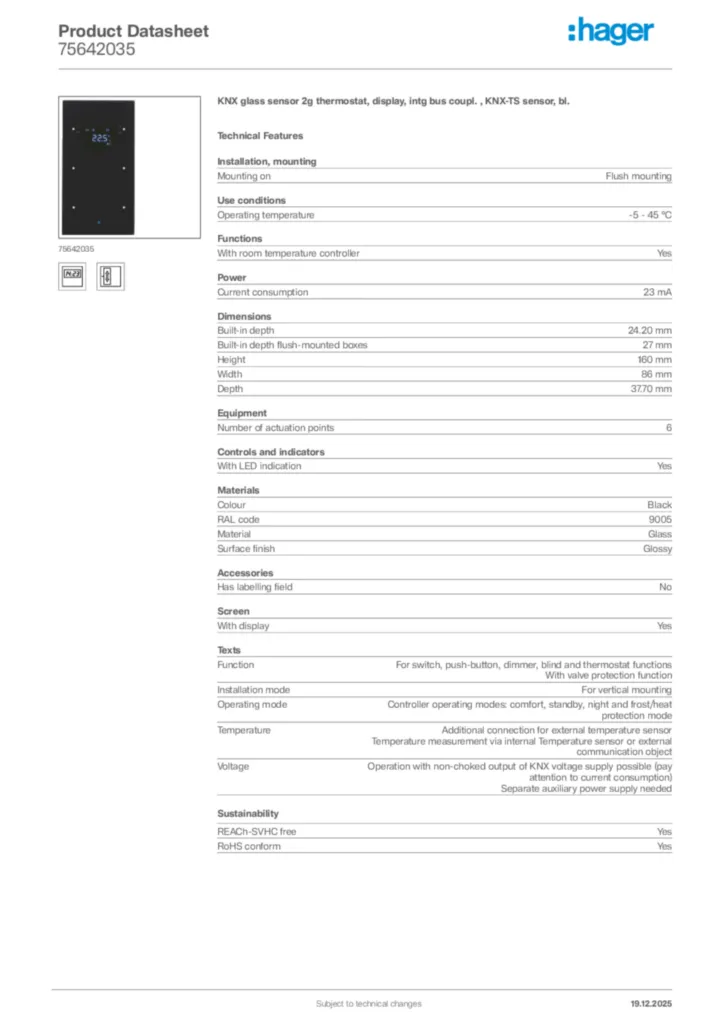

Hager Product data sheet 75642035
