The Hager B.IQ 2-gang KNX push-button in polar white (matt) provides versatile control of switching, dimming and shutter functions in KNX installations. Four actuation points with LED feedback enable intuitive scenes. Flush-mounted, compact (88.5×88.5×16.65 mm) and robust thermoplastic. Operating -5…45°C. Dismantling protection enhances security. Ideal for residential and commercial rooms.
EAN
4011334255703
VPE
1 piece
KNX room controller colour display, int. bus coupler, thermostat, black 75162099
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Labelling material for domestic switching devices 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerNo
Dimensions
-
Height88.50 mm
-
Width88.50 mm
-
Depth16.65 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL codeSimilar to RAL 9010
-
MaterialThermoplastic
-
Surface finishMatt
Accessories
-
Has labelling fieldNo
Screen
-
With displayNo
Texts
-
FunctionFor switch, push-button, dimmer and shutter functions
-
ProtectionWith dismantling protection
Scope of delivery
-
Bus connection includedNo
Data act compliance
-
Is generating dataYes
-
Data typesBasic information, Generic KNX telegram
-
Data formatsKNX (TP)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

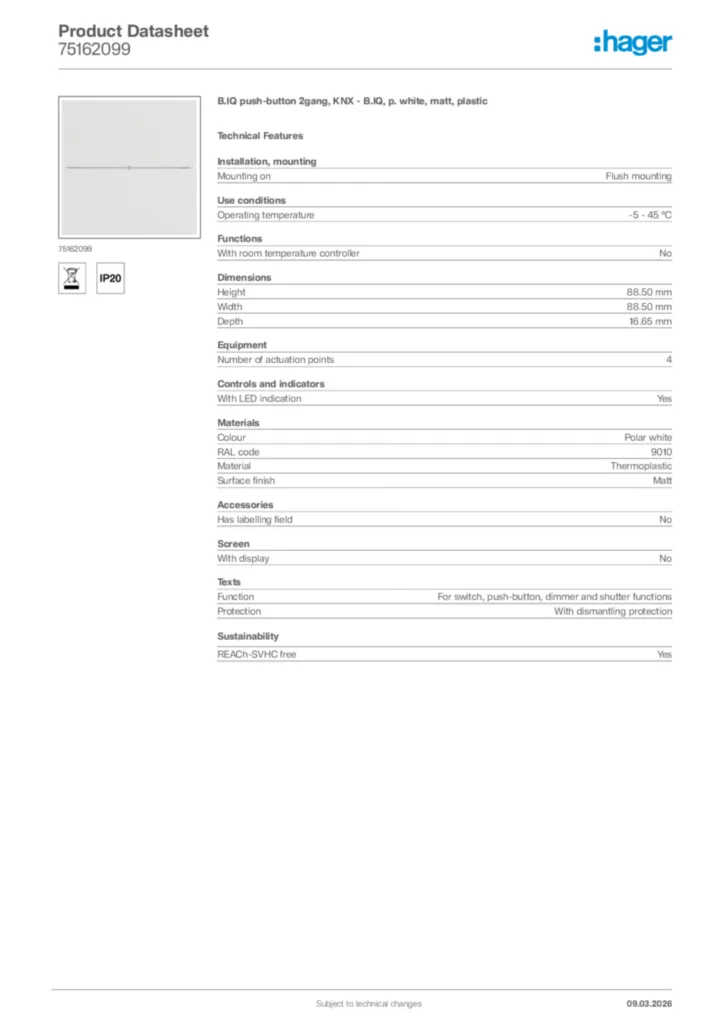

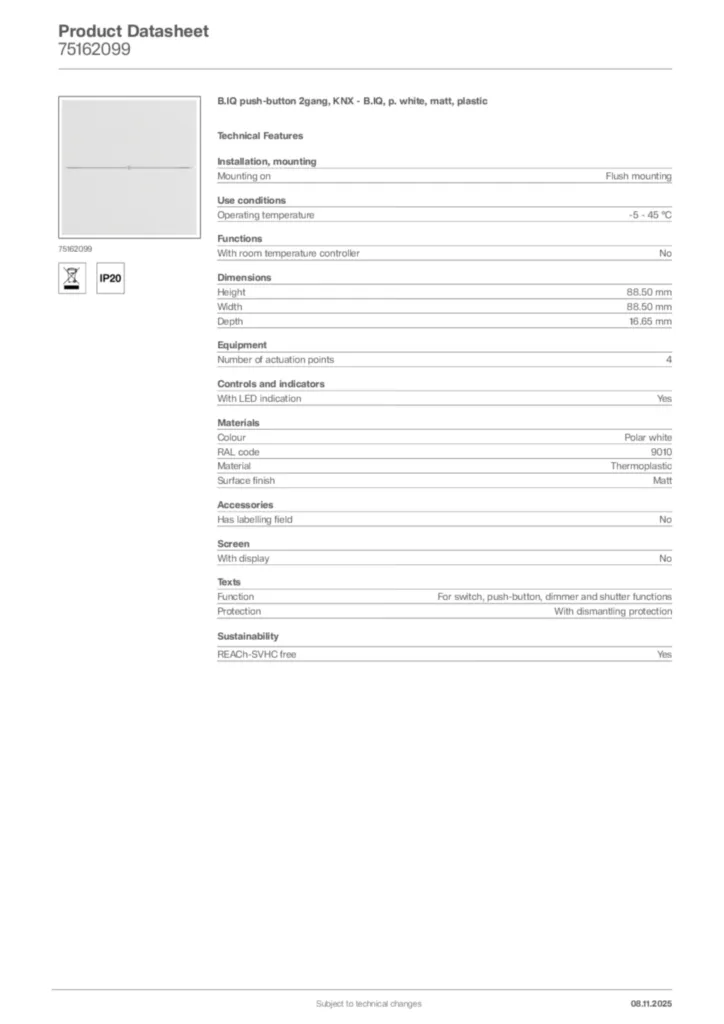

Hager Product data sheet 75162099
