KNX glass sensor 1gang comf, intg bus coupl. unit, KNX-TS sensor, glass p.white 75141830

Technical properties
Environmental value
Documentations
More products

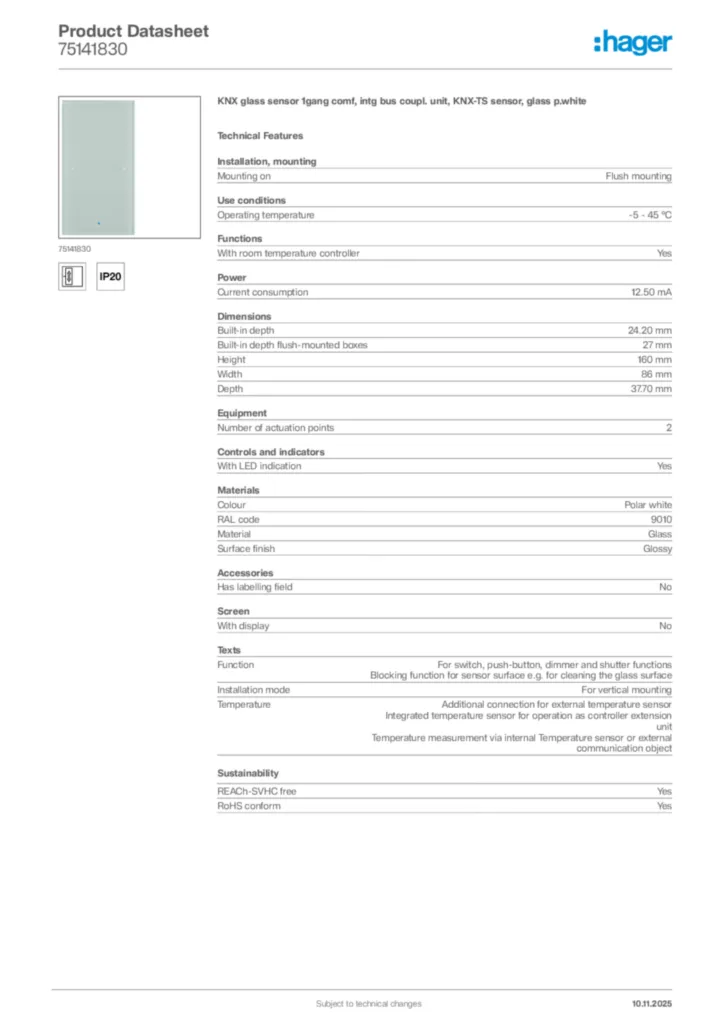

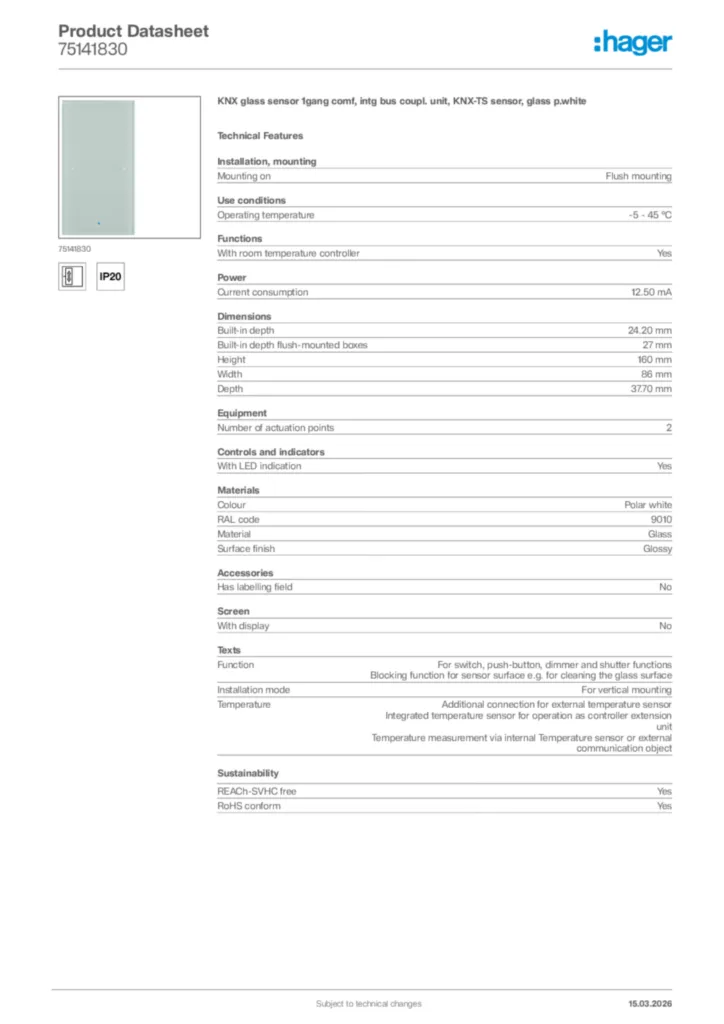

Download the data sheet

Technical properties

Mounting on

Flush mounting

Operating temperature

-5 - 45 °C

With room temperature controller

Yes

Current consumption

12.50 mA

Built-in depth

24.20 mm
Built-in depth flush-mounted boxes

27 mm
Height

160 mm
Width

86 mm
Depth

37.70 mm

Number of actuation points

2

With LED indication

Yes

Colour

Polar white
RAL code

9010
Material

Glass
Surface finish

Glossy

Has labelling field

No

With display

No

Function

For switch, push-button, dimmer and shutter functions, Blocking function for sensor surface e.g. for cleaning the glass surface
Installation mode

For vertical mounting
Temperature

Additional connection for external temperature sensor, Integrated temperature sensor for operation as controller extension unit, Temperature measurement via internal Temperature sensor or external communication object

Bus connection included

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
