    • VU48IE
    EAN
    3250616615342
    Packaging
    1 Piece
    • Volta and accessories

    Encl.,Volta,flush,4x12MOD,IP30,Version ireland VU48IE

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Encl.,Volta,flush,4x12MOD,IP30,Version ireland

    VU48IE

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Single- and multi-­pole 1 products available
    • Cover strip 2 products available
    • Door/­op­er­ating panel 1 products available
    • Lock system 1 products available
    • Quick­-re­lease fastener for housing covers 1 products available

    Complete your system

    • Single- and multi-­pole
    • Cover strip
    • Door/­op­er­ating panel
    • Lock system
    • Quick­-re­lease fastener for housing covers
    • VZ428

      Terminal, Volta, additional terminal, 3Ph+N, 63A
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *
    • VZ104N

      Door frame, Volta, 4rows, with Door, RAL 9010
      0.00 €  / *
    • VZ303

      VOLTA LOOK FOR STANDARD DOOR HANDLE
      0.00 €  / *
    • VZ225N

      Locking bolt, Volta, for Cover, spare part
      0.00 €  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      63 A
    Power
    • Maximum power loss per cabinet at ΔT=20K
      27 W
    Equip­ment
    • Number of rails
      4
    • Number of rows
      4
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      48
    • Number of half modules terminals per rail
      96
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      755.50 mm
    • Width
      348 mm
    • Depth
      94.50 mm
    • Built-in height
      740 mm
    • Built-in width
      335 mm
    • Built-in depth
      90 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      Yes
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration VU48IE
    PDF
    Hager RoHS report VU48IE
    PDF

    Downloads

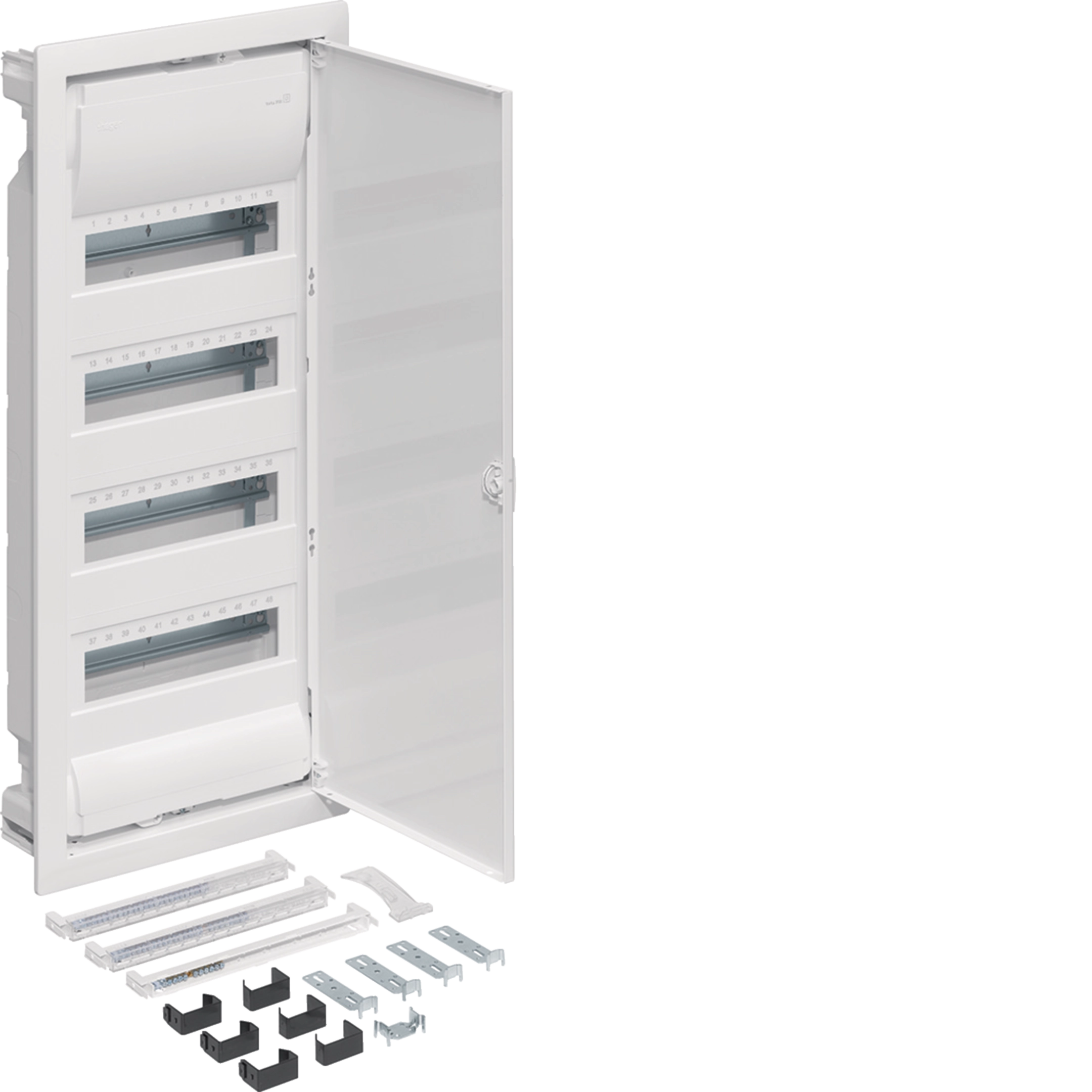

    • Product image

      Image VU48IE | Hager

      Product Image VU48IE

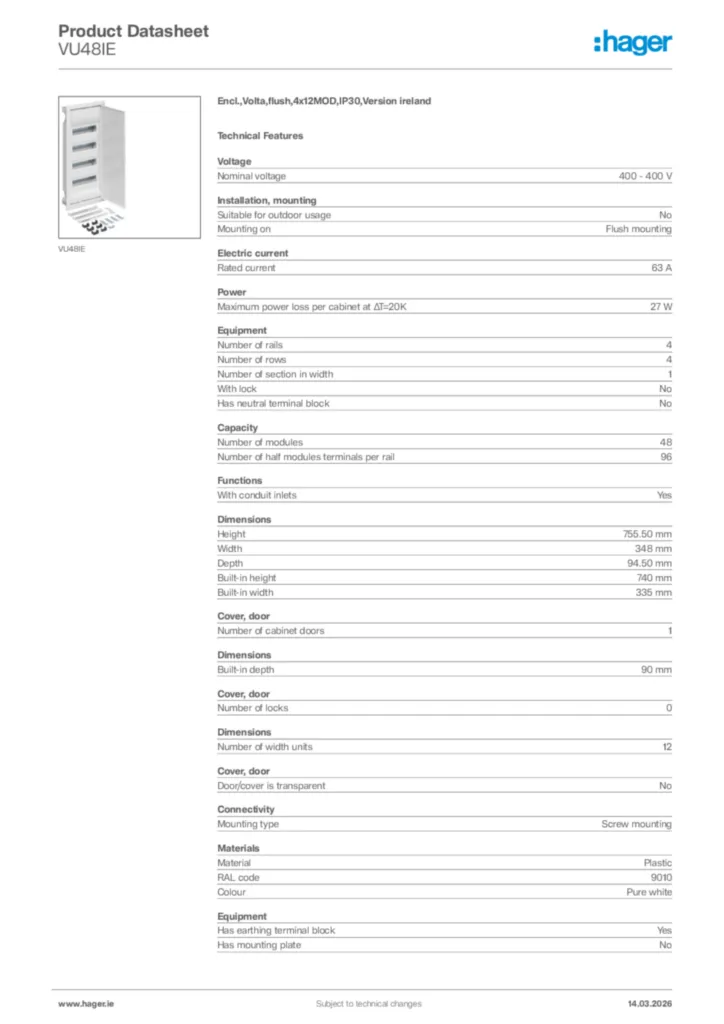

    • Product datasheet

      Image Hager Product data sheet VU48IE | Hager

      Hager Product data sheet VU48IE

      Encl.,Volta,flush,4x12MOD,IP30,Version ireland

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-08-16

      PDF
      359,72 kB
      Image Declaration of conformity International 2023-08-07 | Hager

      Declaration of conformity International 2023-08-07

      PDF
      366,52 kB
