Encl.,Volta,flush,1x12MOD,IP30,Version ireland VU12IE

EAN
3250616615311
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Encl.,Volta,flush,1x12MOD,IP30,Version ireland

VU12IE

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Door/­op­er­ating panel 2 products available
  • Single- and multi-­pole 1 products available
  • Cover strip 2 products available
  • Lock system 1 products available
  • Quick­-re­lease fastener for housing covers 1 products available

Complete your system

  • Door/­op­er­ating panel
  • Single- and multi-­pole
  • Cover strip
  • Lock system
  • Quick­-re­lease fastener for housing covers
  • VZ131N

    Door, Volta, flush/Hollow wall, transparent, 1rows
    0.00 €  / *
  • VZ101N

    Door frame, Volta, 1row, with Door, RAL 9010
    0.00 €  / *
  • VZ428

    Terminal, Volta, additional terminal, 3Ph+N, 63A
    0.00 €  / *
  • P031F

    Cover strips, universal, for 1/2 module
    0.00 €  / *
  • P032F

    Cover strips, universal, for 1 module
    0.00 €  / *
  • VZ303

    VOLTA LOOK FOR STANDARD DOOR HANDLE
    0.00 €  / *
  • VZ225N

    Locking bolt, Volta, for Cover, spare part
    0.00 €  / *

Technical properties

Voltage
  • Nominal voltage
    400 - 400 V
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Flush mounting
Elec­tric current
  • Rated current
    63 A
Power
  • Maximum power loss per cabinet at ΔT=20K
    12 W
Equip­ment
  • Number of rails
    1
  • Number of rows
    1
  • Number of section in width
    1
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    12
  • Number of half modules terminals per rail
    24
Func­tions
  • With conduit inlets
    Yes
Dimen­sions
  • Height
    356 mm
  • Width
    348 mm
  • Depth
    94.50 mm
  • Built-in height
    340 mm
  • Built-in width
    335 mm
  • Built-in depth
    90 mm
  • Number of width units
    12
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    0
  • Door/­cover is trans­parent
    No
Connectivity
  • Mounting type
    Screw mounting
Mater­ials
  • Material
    Plastic
  • RAL code
    9010
  • Colour
    Pure white
  • Ultra­vi­olet-res­istant
    Yes
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Snap on lock, Without lock
  • Glow wire test
    650 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
PDF
25,39 MB
Hager REACH declaration VU12IE
PDF
Hager RoHS report VU12IE
PDF

Downloads

  • Product image

    Image VU12IE | Hager

    Product Image VU12IE

  • Product datasheet

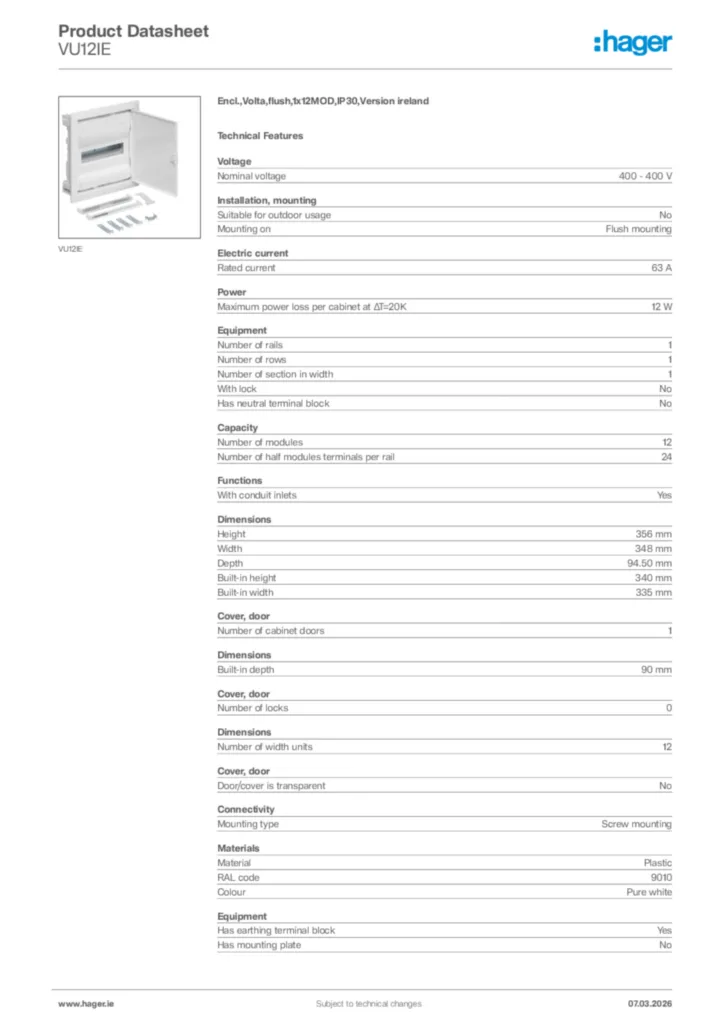

    Image Hager Product data sheet VU12IE | Hager

    Hager Product data sheet VU12IE

    Encl.,Volta,flush,1x12MOD,IP30,Version ireland

    PDF

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2023-08-16

    PDF
    359,72 kB
    Image Declaration of conformity International 2023-08-07 | Hager

    Declaration of conformity International 2023-08-07

    PDF
    366,52 kB
