    • SPA212
    EAN
    3250615513175
    Packaging
    1 Piece
    • Surge Protec­tion Device (SPD)

    SPD T1+T2+T3 2P 12.5kA with remote contact TNS/TT SPA212

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SPD T1+T2+T3 2P 12.5kA with remote contact TNS/TT

    SPA212

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Elec­tric current
    • Max. discharge (Imax) L-N(PEN)/ N-PE
      75 kA
    • Leak­age-­cur­rent free
      Yes
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      160 A
    • Light­ning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE
      12.5 kA, 25 kA
    Network config­ur­a­tion
    • Network type
      TN-S, TT
    Connectivity
    • Type of connec­tion
      Screw terminal
    Equip­ment
    • With remote signalling contact
      Yes
    Capa­city
    • Number of modules
      2
    Voltage
    • Voltage protec­tion level Up according to IEC 61643-1
      1.50 kV
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      264 V
    • Rated oper­a­tional voltage Ue
      240 - 415 V
    • Voltage level Up L-N/PEN IEC 61643-11
      1.5 kV
    Archi­tec­ture
    • Type of pole
      1P+N
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 85 °C
    Dimen­sions
    • Height
      99.7 mm
    • Width
      36 mm
    • Depth
      76.6 mm
    Controls and indic­ators
    • With indic­ator lamp
      Yes
    Stand­ards
    • Require­ment class IEC 61643
      T1, T2, T3
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3 - 4.5 Nm
    • Mounting on
      DIN rail
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      2.5 - 25.0 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      2.5 - 35.0 mm²
    • Cross-sec­tion signal contact
      0.2 - 25.0 mm²
    Frequency
    • Frequency
      50 - 60 Hz
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration SPA212
    PDF
    RoHS report SPA212
    PDF

    Downloads

    • Product image

      Image SPA212 | Hager

      Product Image SPA212

    • Product datasheet

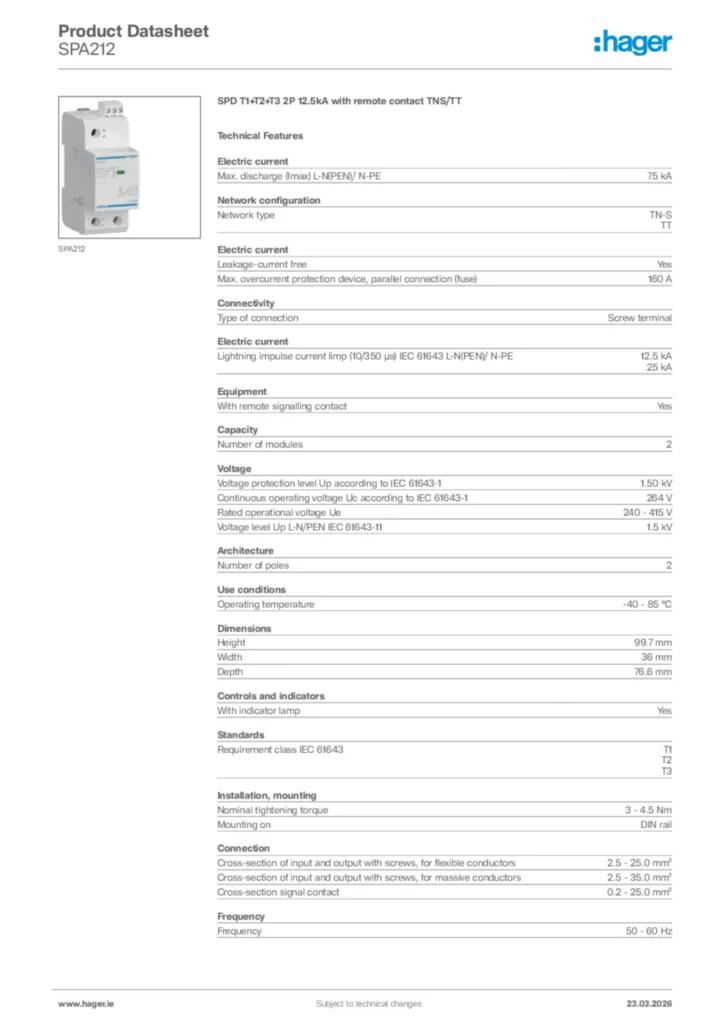

      Image Hager Product data sheet SPA212 | Hager

      Hager Product data sheet SPA212

      SPD T1+T2+T3 2P 12.5kA with remote contact TNS/TT

      PDF

    • Installation manual

      Image Installation manual cs-CZ, en-GB, es-ES, fr-FR, de-DE, el-GR, pl-PL, pt-PT 2022-04-12 | Hager

      Installation manual cs-CZ, en-GB, es-ES, fr-FR, de-DE, el-GR, pl-PL, pt-PT 2022-04-12

      Installation manual cs-CZ, en-GB, es-ES, fr-FR, de-DE, el-GR, pl-PL, pt-PT 2024-12-06

      PDF
      274,69 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-11-15

      PDF
      315,45 kB
      Image Declaration of conformity en-US 2026-07-15 | Hager

      Declaration of conformity en-US 2026-07-15

      PDF
      257,46 kB
