Gamma 3Row 7W 1RCD - 2x6A Ltg. RCBOs SPD SBM9101SPD

EAN
3250619925332
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Gamma 3Row 7W 1RCD - 2x6A Ltg. RCBOs SPD

SBM9101SPD

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    63 A
Equip­ment
  • Number of rails
    3
  • Number of rows
    3
  • Has mounting plate
    No
Capa­city
  • Number of modules
    39
Dimen­sions
  • Height
    500 mm
  • Width
    250 mm
  • Depth
    103 mm
Cover, door
  • Number of locks
    0
  • Door/­cover is trans­parent
    Yes
Mater­ials
  • Material
    Poly­styrene (PS)
  • RAL code
    9010
  • Colour
    Pure white
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP40
  • Locking type
    Snap on lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration SBM9101SPD
PDF
Hager RoHS report SBM9101SPD
PDF

Downloads

  • Product image

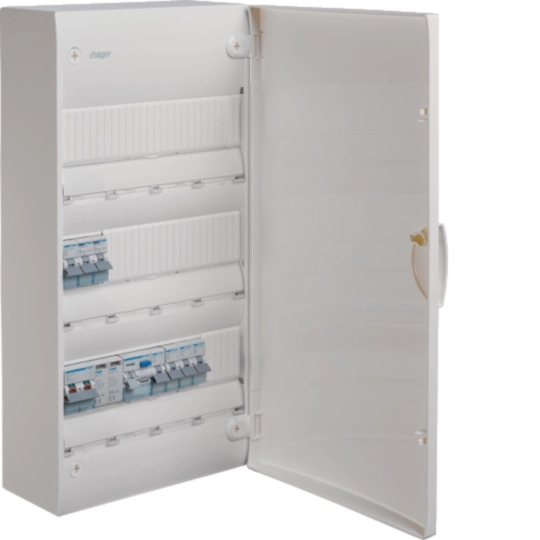

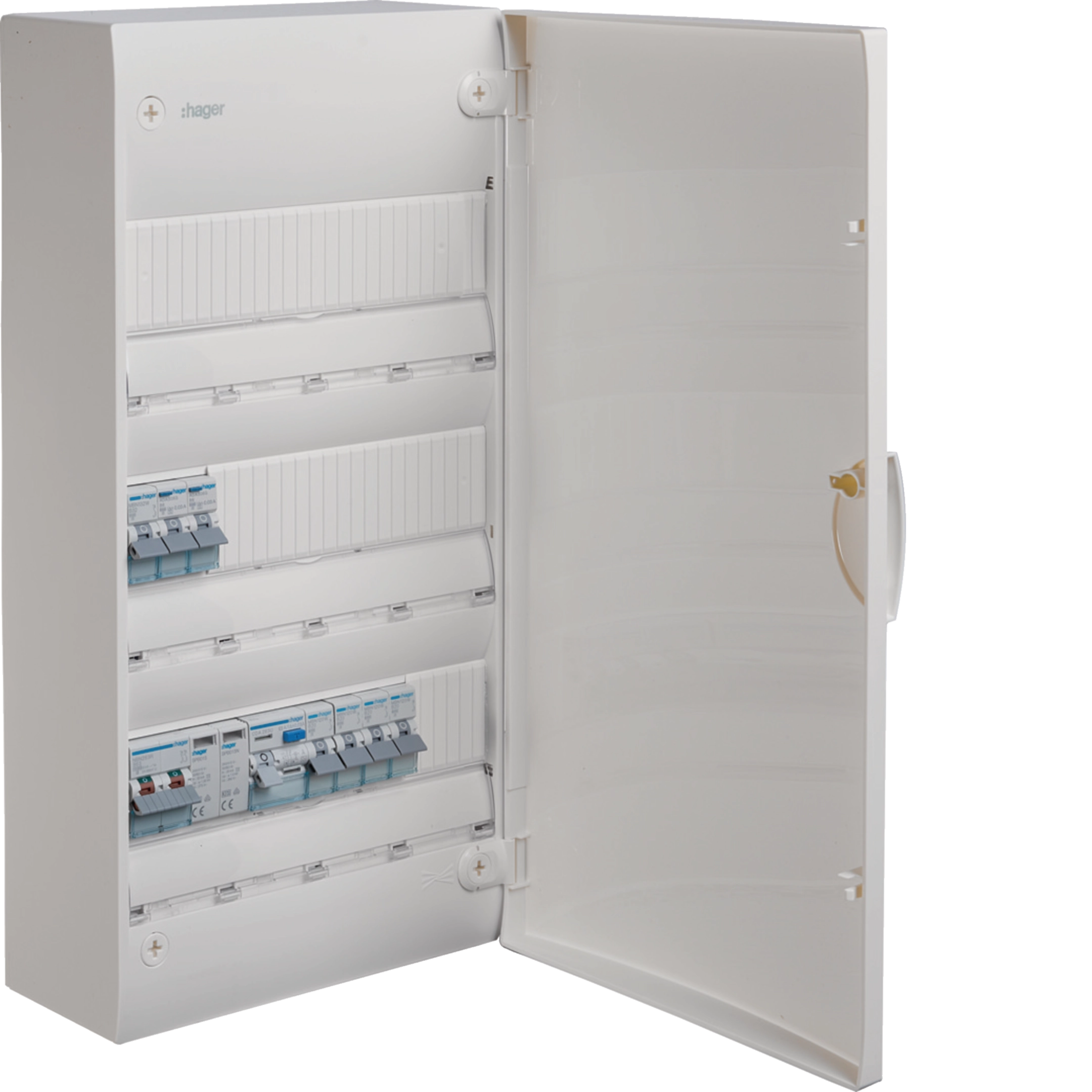

    Image SBM9101SPD | Hager

    Product Image SBM9101SPD

  • Product datasheet

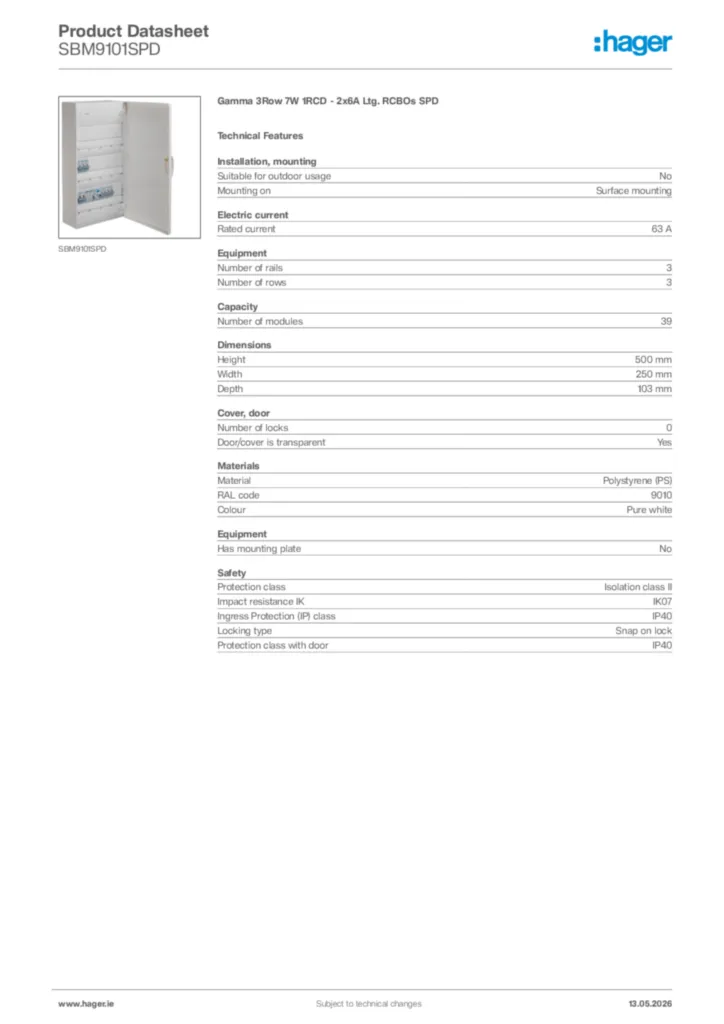

    Image Hager Product data sheet SBM9101SPD | Hager

    Hager Product data sheet SBM9101SPD

    Gamma 3Row 7W 1RCD - 2x6A Ltg. RCBOs SPD

    PDF

  • Declaration of conformity

    Image Declaration of conformity International 2020-01-01 | Hager

    Declaration of conformity International 2020-01-01

    PDF
    1,33 MB
