Gamma 4Row 7W 1RCD - 2x6A Ltg. RCBOs SPD SBE10101SPD
EAN
3250619925226
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Connection
-
Number of accessible phases1
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails4
-
Number of rows4
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules52
Functions
-
Has protection main switchNo
Scope of delivery
-
Number of RCCB in enclosure1
Dimensions
-
Height625 mm
-
Width250 mm
-
Depth103 mm
-
Number of width units13
Cover, door
-
Number of locks0
-
Door/cover is transparentYes
Materials
-
MaterialPolystyrene (PS)
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

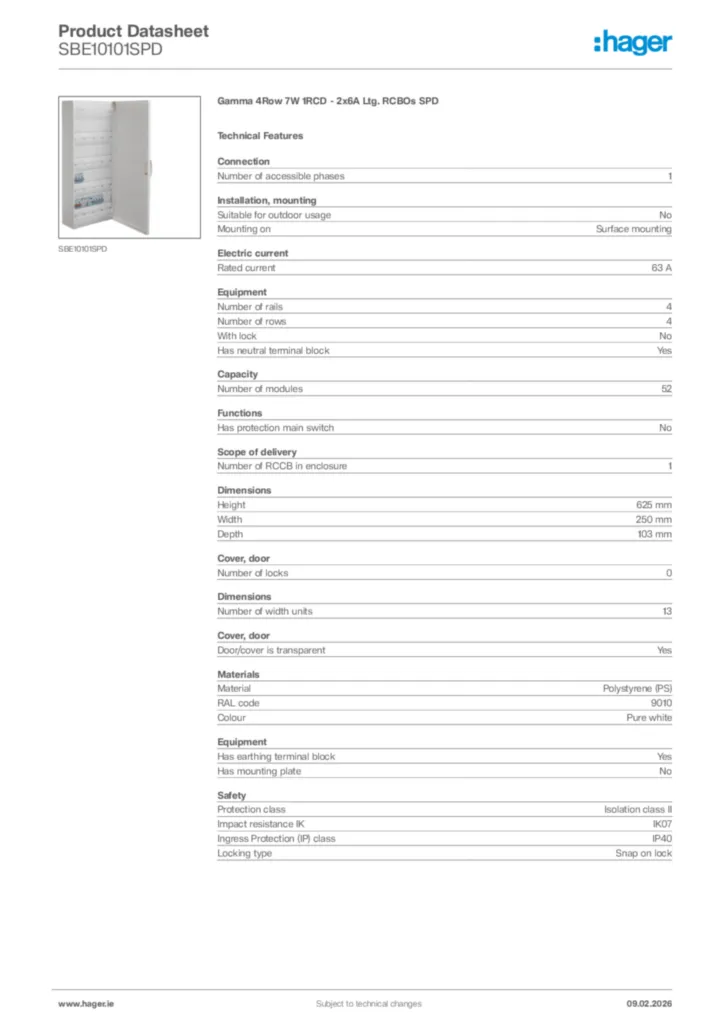

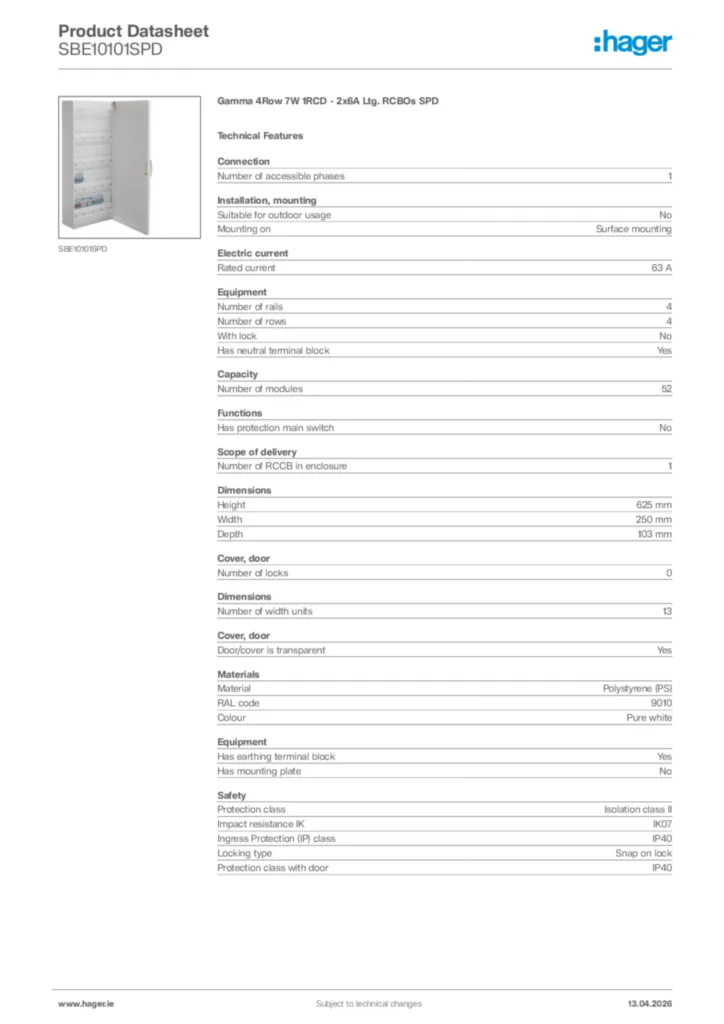

Hager Product data sheet SBE10101SPD
Gamma 4Row 7W 1RCD - 2x6A Ltg. RCBOs SPD
PDF -
Declaration of conformity
Declaration of conformity International 2020-01-01
PDF1,33 MB
