    EAN
    3250619925127
    Packaging
    1 Piece
    • Gamma consumer units

    Gamma 2Row 7W 1RCD - 2x6A Ltg. RCBOs SPD SBE8101SPD

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Gamma 2Row 7W 1RCD - 2x6A Ltg. RCBOs SPD

    SBE8101SPD

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Connec­tion
    • Number of access­ible phases
      1
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      26
    Func­tions
    • Has protec­tion main switch
      No
    Scope of delivery
    • Number of RCCB in enclosure
      1
    Dimen­sions
    • Height
      375 mm
    • Width
      250 mm
    • Depth
      103 mm
    • Number of width units
      13
    Cover, door
    • Number of locks
      0
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Material
      Poly­styrene (PS)
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    REACH declaration SBE8101SPD
    PDF

    Downloads

    • Product image

      Image SBE8101SPD | Hager

      Product Image SBE8101SPD

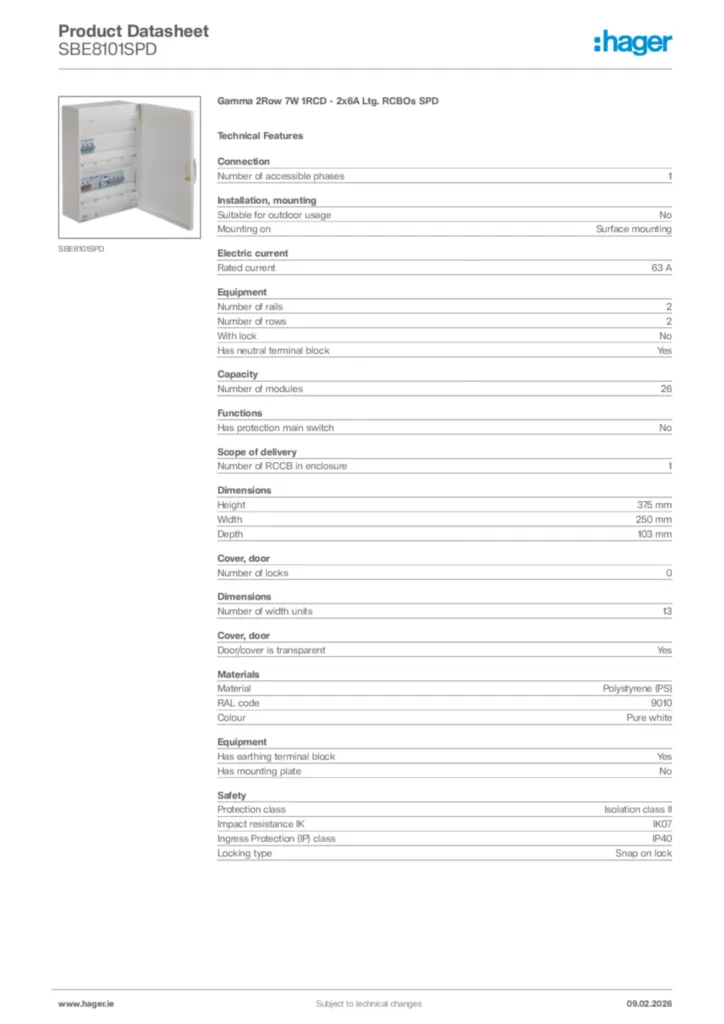

    • Product datasheet

      Image Hager Product data sheet SBE8101SPD | Hager

      Hager Product data sheet SBE8101SPD

      Gamma 2Row 7W 1RCD - 2x6A Ltg. RCBOs SPD

      PDF

    • BIM Revit objects

      Image Range:GAMMA-Enclosures_Surface_mounted-IP40-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:GAMMA-Enclosures_Surface_mounted-IP40-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,20 MB
      Image Range:GAMMA-Enclosures_Surface_mounted-IP40-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:GAMMA-Enclosures_Surface_mounted-IP40-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,19 MB

    • Declaration of conformity

      Image Declaration of conformity International 2020-01-01 | Hager

      Declaration of conformity International 2020-01-01

      PDF
      1,33 MB
