Feed-through terminal-neutral, 16mm², 400V/76A, screw connection KXA16N
EAN
3250613941949
Packaging
50 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Labelling material 1 products available -
Component terminal block 1 products available -
Cross-connector for terminal block 3 products available
Technical properties
Electric current
-
Rated current76 A
Dimensions
-
Height51.50 mm
-
Width58 mm
-
Depth12 mm
Installation, mounting
-
Mounting onDIN rail
Connection
-
Cross-section flexible conductor1 - 16 mm²
-
Cross-section rigid conductor1.5 - 25 mm²
Materials
-
ColourBlue
-
MaterialPolyamide (PA)
Connectivity
-
Type of connectionScrew terminal
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

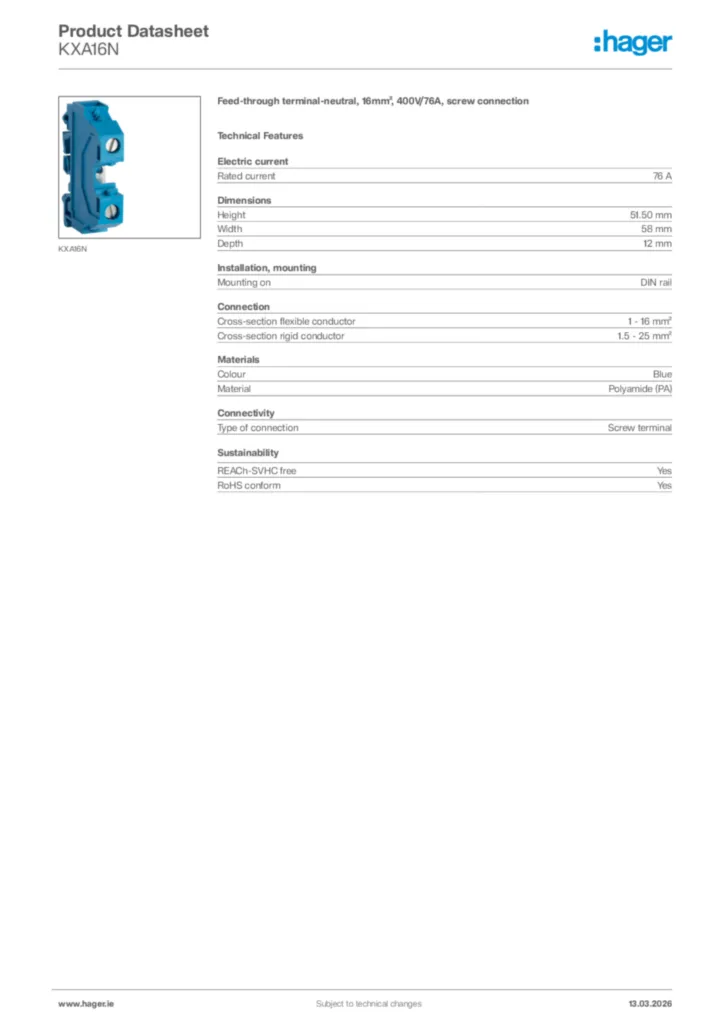

Hager Product data sheet KXA16N
Feed-through terminal-neutral, 16mm², 400V/76A, screw connection
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF194,57 kB
Declaration
Declaration of conformity International 2022-11-16
PDF265,19 kB
