100A 6 Way A Board JK106
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Installation, mounting
-
Mounting onSurface mounting
Functions
-
Has protection main switchYes
Capacity
-
Number of modules6
Electric current
-
Rated current IN100 A
Dimensions
-
Depth125 mm
-
Height236 mm
-
Width254 mm
-
Number of width units6
Cover, door
-
InterlockableNo
-
Door/cover is transparentNo
Materials
-
RAL code7035
-
ColourLight grey
-
MaterialSteel
Connection
-
Number of accessible phases1
Scope of delivery
-
Number of RCCB in enclosure0
Equipment
-
Number of rows1
-
Number of rails1
-
With socket outletNo
Safety
-
Ingress Protection (IP) classIP2XC
-
Protection classIsolation class I
-
Number of earth leakage switches 300 mA0
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

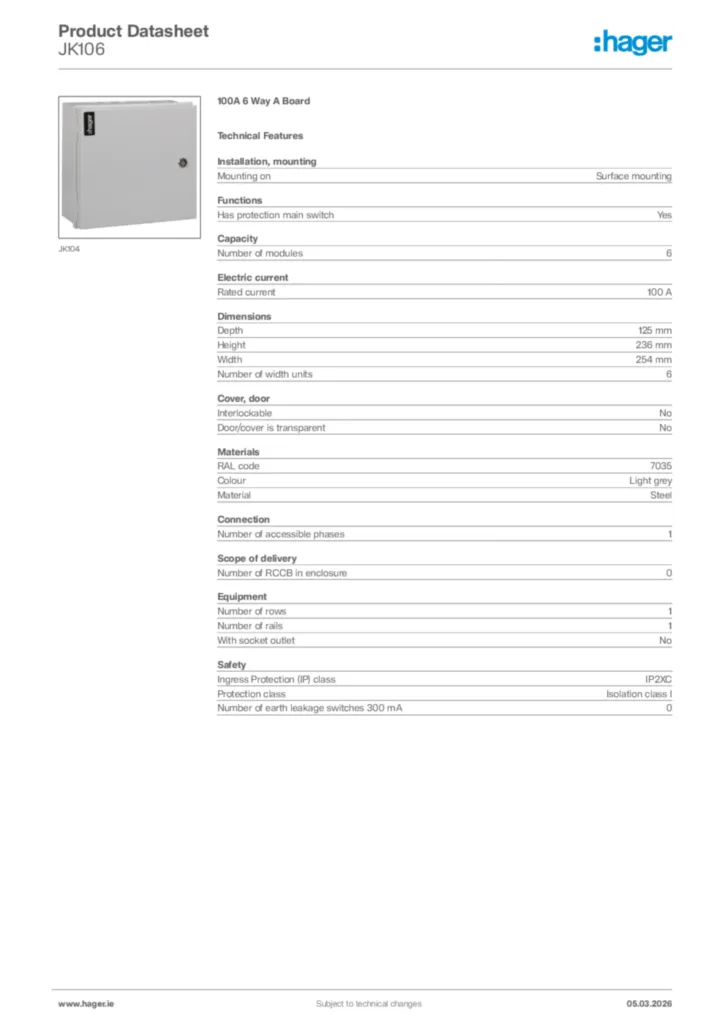

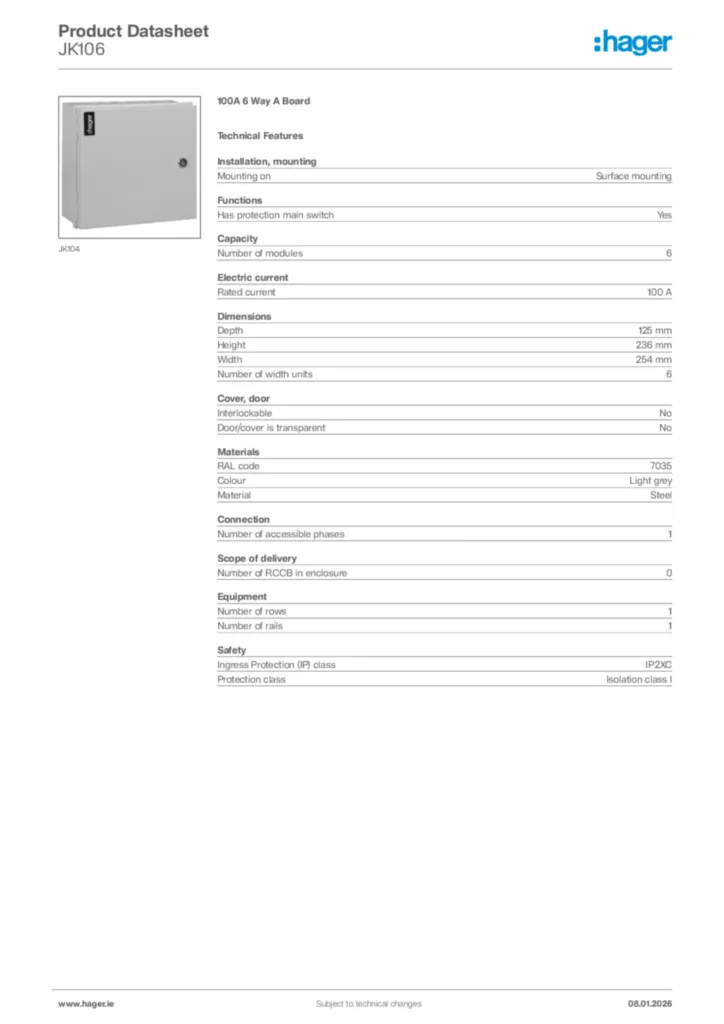

Product datasheet
Hager Product data sheet JK106
100A 6 Way A Board
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF177,63 kB
Declaration
Declaration of conformity International 2022-11-08
PDF180,42 kB
Declaration of conformity International 2023-12-20
PDF219,79 kB
Declaration of conformity International 2023-12-20
PDF230,37 kB
Declaration of conformity en-GB 2026-07-22
PDF323,96 kB
