800A 8 Way 4*250A + 4*125A Glazed JF80404BG

EAN
5015652264040
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

800A 8 Way 4*250A + 4*125A Glazed

JF80404BG

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Door/­op­er­ating panel 2 products available
  • Distrib­utor assembly for device surface mounting 1 products available
  • Blanking plate for enclosure 1 products available
  • Switch discon­nector AC 1 products available
  • Small distri­bu­tion board 3 products available
  • Gland plate for enclosure 1 products available

Complete your system

  • Door/­op­er­ating panel
  • Distrib­utor assembly for device surface mounting
  • Blanking plate for enclosure
  • Switch discon­nector AC
  • Small distri­bu­tion board
  • Gland plate for enclosure
  • JF806DK

    Large Extension Box Door Kit
    0.00 €  / *
  • JF805DK

    Small Spreader Box Door Kit
    0.00 €  / *
  • JF884BD

    800A 4 Pole Dirct Connect Incomer Kit
    0.00 €  / *
  • JF003BP

    3 Pole Blanking Plate 250A Frame
    0.00 €  / *
  • JAB410B

    Enclosed Switch Disconnector TPSN 100A
    0.00 €  / *
  • JF803EG

    Large DIN Rail Box Glazed
    0.00 €  / *
  • JF801EG

    Small DIN Rail Box Glazed
    0.00 €  / *
  • JF12504SM

    6/8 Way Side Extension Encl DIN 96 x 4
    0.00 €  / *
  • JFPLATE

    Spare Endplate for JF boards
    0.00 €  / *

Technical properties

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    800 A
Equip­ment
  • With lock
    Yes
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Dimen­sions
  • Height
    1,250 mm
  • Width
    900 mm
  • Depth
    220 mm
Cover, door
  • Door/­cover is trans­parent
    Yes
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Barrel lock, Key lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

PEP - 125A 6 Way TPN Board with 4 pole SD & Type II SPD Glazed (english)
PDF
1,80 MB
Hager REACH declaration JF80404BG
PDF
Hager RoHS report JF80404BG
PDF

Downloads

  • Product image

    Image JF80404BG | Hager

    Product Image JF80404BG

  • Product datasheet

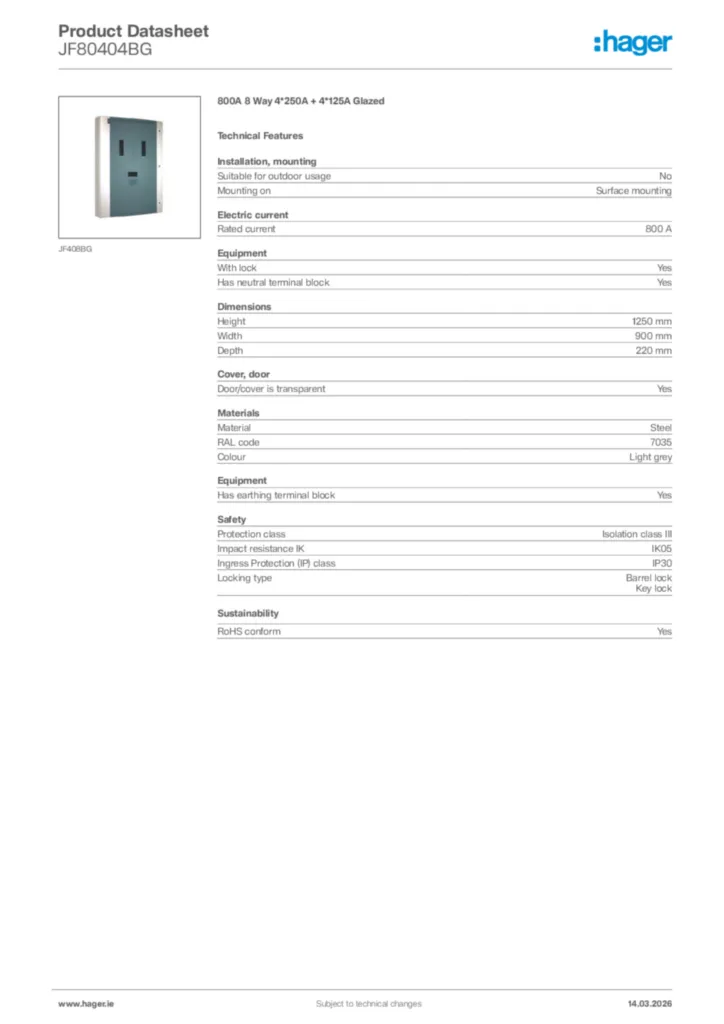

    Image Hager Product data sheet JF80404BG | Hager

    Hager Product data sheet JF80404BG

    800A 8 Way 4*250A + 4*125A Glazed

    PDF

  • BIM Revit objects

    Image Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 hosted-V2021 | Hager

    Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,13 MB
    Image Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 no hosted-V2021 | Hager

    Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,12 MB
    Image Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,14 MB
    Image Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,13 MB

  • Declaration of conformity

    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    246,50 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    244,86 kB
