    • Home
    • Catalogue
    • Distri­bu­tion systems
    • Enclos­ures up to 800A
    • Invicta Panel­boards
    • JF15508SM
    EAN
    5015654791773
    Packaging
    1 Piece
    • Invicta Panel­boards

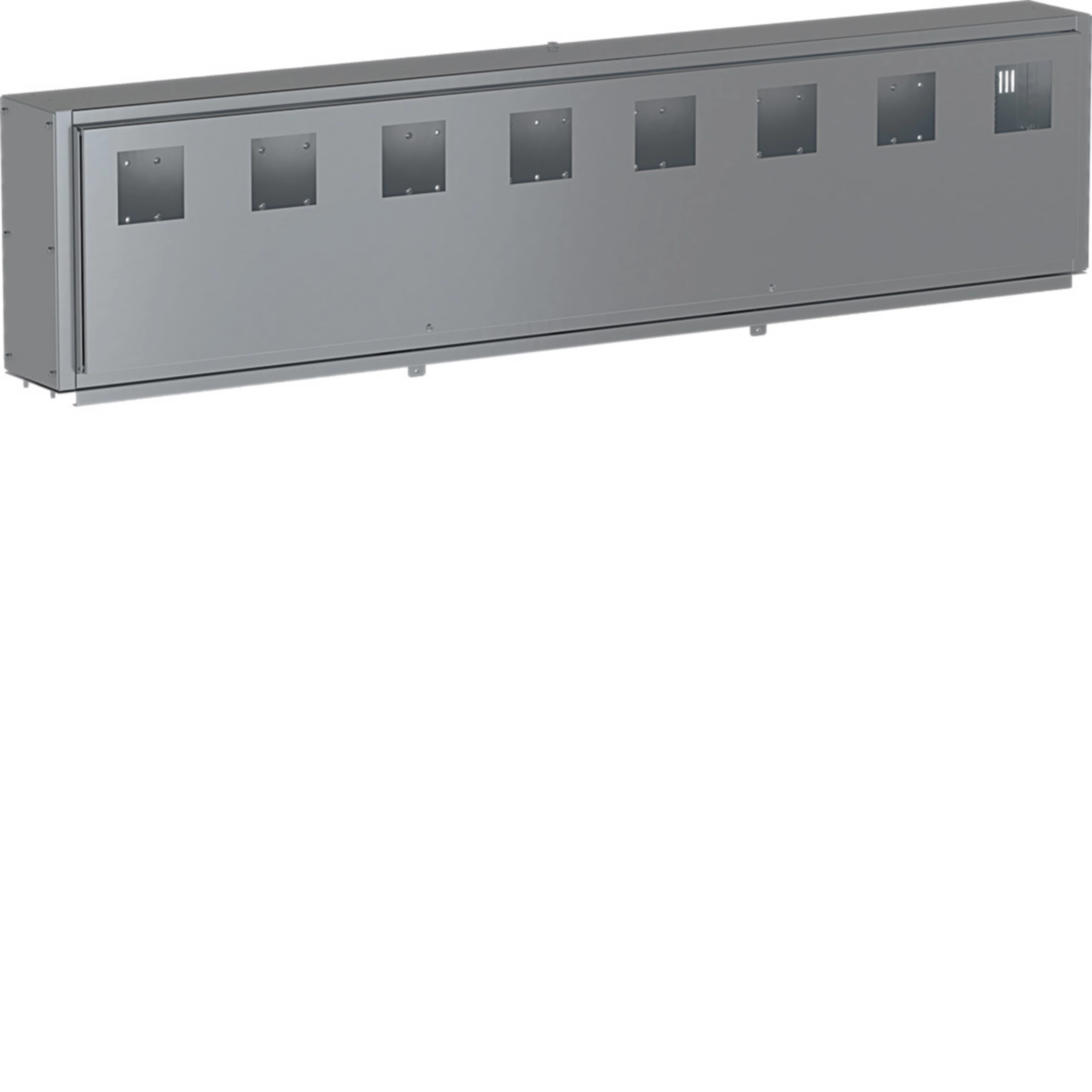

    16 Way Side Extension Encl DIN 96 x 8 JF15508SM

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    16 Way Side Extension Encl DIN 96 x 8

    JF15508SM

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Blanking plate for enclosure 1 products available

    Compatible products

    • Referenced by 2 products available

    Complete your system

    • Blanking plate for enclosure
    • JF96BP

      Blanking Plate DIN 96
      0.00 €  / *

    Referenced by

    • JF416BG

      400A 16 Way 125A Outgoers Glazed
      0.00 €  / *
    • JF416B

      400A 16 Way 125A Outgoers Plain
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Equip­ment
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    Dimen­sions
    • Height
      1,550 mm
    • Width
      350 mm
    • Depth
      160 mm
    • Number of width units
      8
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP2XC
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    JK1 32 Module DIN Rail Box Glazed
    PDF
    5,81 MB
    Hager REACH declaration JF15508SM
    PDF
    Hager RoHS report JF15508SM
    PDF

    Downloads

    • Product image

      Image JF15508SM | Hager

      Product Image JF15508SM

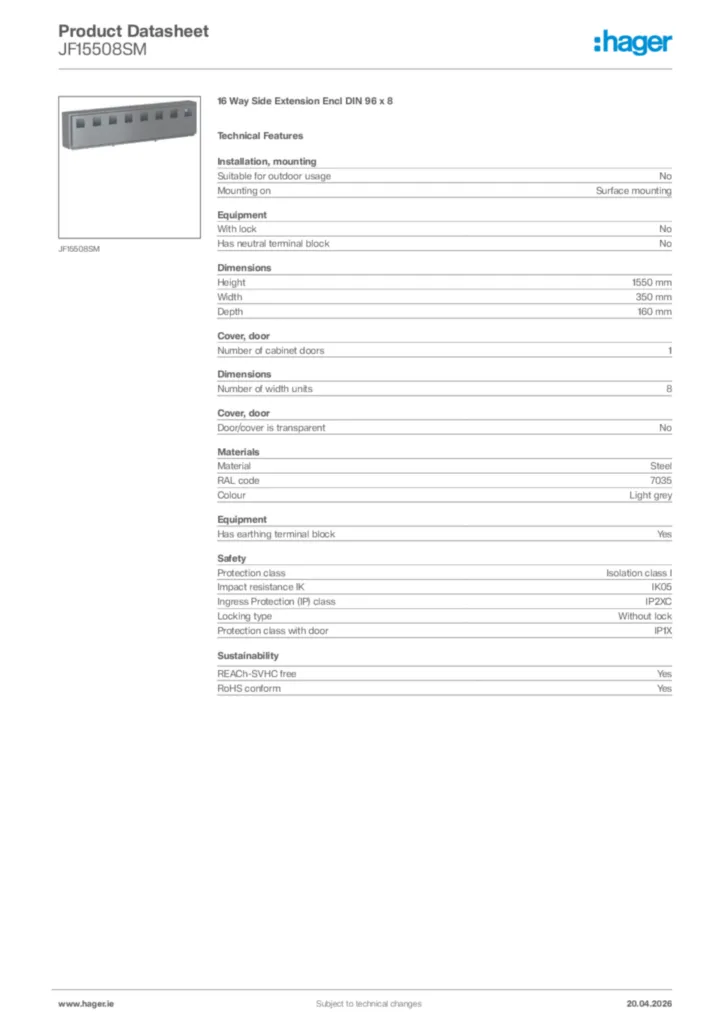

    • Product datasheet

      Image Hager Product data sheet JF15508SM | Hager

      Hager Product data sheet JF15508SM

      16 Way Side Extension Encl DIN 96 x 8

      PDF

    • BIM Revit objects

      Image Panelboard JF Side Meter Enclosure -Revit Family 2020 hosted-V2021 | Hager

      Panelboard JF Side Meter Enclosure -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      960,00 kB
      Image Panelboard JF Side Meter Enclosure -Revit Family 2020 no hosted-V2021 | Hager

      Panelboard JF Side Meter Enclosure -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      960,00 kB
      Image Range:Panelboard Meter Enclosures-Enclosures_Surface_mounted-IP2XC-With_Cover-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:Panelboard Meter Enclosures-Enclosures_Surface_mounted-IP2XC-With_Cover-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      940,00 kB
      Image Range:Panelboard Meter Enclosures-Enclosures_Surface_mounted-IP2XC-With_Cover-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:Panelboard Meter Enclosures-Enclosures_Surface_mounted-IP2XC-With_Cover-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      932,00 kB
      Image Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      964,00 kB
      Image Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      980,00 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-23

      PDF
      142,96 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-23

      PDF
      132,32 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      255,65 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      246,50 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      244,86 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      257,00 kB
