Switch h1000 4P 1000A HCE971H
EAN
3250613363239
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries interlocking cable 2 products available -
Shunt release 5 products available -
Auxiliaries contact block 3 products available -
Padlock barrier for switch 1 products available -
Under voltage coil 13 products available -
See more 7 other products available
Complete your system
-
HXC001H
Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)
-
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
-
HXC004HShunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
-
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
-
HXC008HShunt trip Release 110V DC (h250-h400-h630-h800-h1000)
-
HXE011H
UVR 24V DC (h800-h1000-h1600)
-
HXE013HUVR 110-120V AC (h800-h1000-h1600)
-
HXE014HUVR 220-240V AC (h800-h1000-h1600)
-
HXE015HUVR 380-415V AC (h800-h1000-h1600)
-
HXE018HUVR 100-120 V DC (h800-h1000-h1600)
-
HXE019HUVR 200-240 V DC (h800-h1000-h1600)
-
HXE051HUndervoltage Release delayed h800-h1600 3P 24VDC
-
HXE053HUndervoltage Release delayed h800-h1600 3P 110-120VAC
-
HXE054HUndervoltage Release delayed h800-h1000 3P 220-240VAC
-
HXE055HUndervoltage Release delayed h800-h1600 3P 380-415VAC
-
HXF051HUndervoltage Release delayed h800-h1600 4P 24VDC
-
HXF053HUndervoltage Release delayed h800-h1600 4P 110-120VAC
-
HXF055HUndervoltage Release delayed h800-h1600 4P 380-415VAC

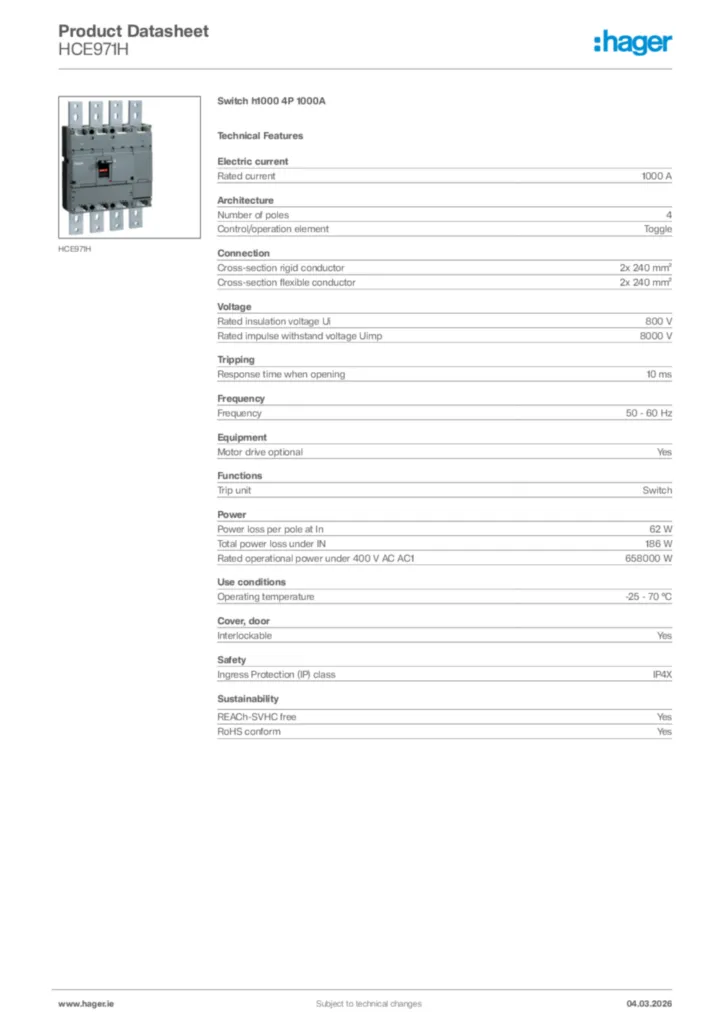

Technical properties
Electric current
-
Rated current1,000 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor2x 240 mm²
-
Cross-section flexible conductor2x 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In62 W
-
Total power loss under IN186 W
-
Rated operational power under 400 V AC AC1658,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
