HAB304 - Load break switch 3P 40A
HAB304
Load break switch 3P 40A
2
HA453 - Load break switch 4P 200A
HA453
Load break switch 4P 200A

Load break switch 3P 40A

HAB304

  • Modular devices
  • Switching and protective devices

Load break switch 3P 40A HAB304

EAN
3250613140250
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

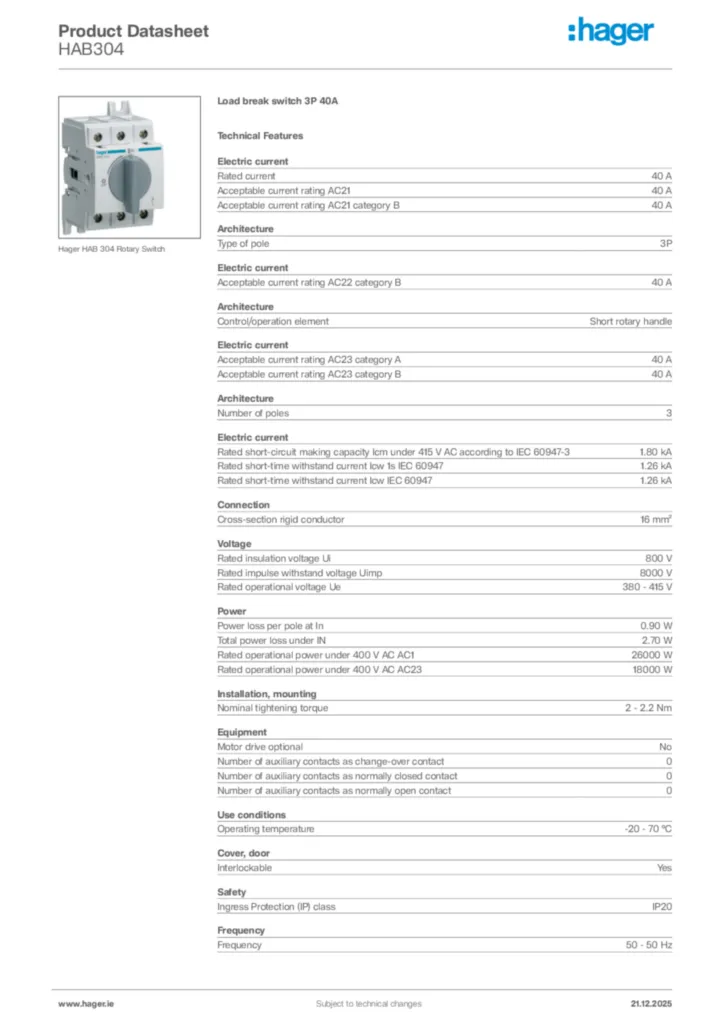

Download the data sheet

Complete your system

Optional accessories

  • Door coup­ling handle for switchgear 1 products available
  • Switch oper­ating shaft 3 products available
  • Auxil­iary contact block 2 products available
  • Terminal cover 1 products available

Complete your system

  • Door coup­ling handle for switchgear
  • Switch oper­ating shaft
  • Auxil­iary contact block
  • Terminal cover
  • HZC010

    Grey handle LBS 20-100A
    0.00 €  / *
    Add to a list
    Add to a list
  • HZC111

    Shaft extension N°5 150mm LBS 20-125A
    0.00 €  / *
    Add to a list
    Add to a list
  • HZC112

    Shaft extension N°5 200mm LBS 20-125A
    0.00 €  / *
    Add to a list
    Add to a list
  • HZC113

    Shaft extension N°5 320mm LBS 20-125A
    0.00 €  / *
    Add to a list
    Add to a list
  • HZC311

    Auxiliary contact 1C+1O LBS 20-160A
    0.00 €  / *
    Add to a list
    Add to a list
  • HZC312

    Auxiliary contact 2C LBS 20-160A
    0.00 €  / *
    Add to a list
    Add to a list
  • HZC211

    Terminal shrouds 3P LBS 20-63A
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Elec­tric current
  • Rated current
    40 A
  • Accept­able current rating AC21
    40 A
  • Accept­able current rating AC21 category B
    40 A
  • Accept­able current rating AC22 category B
    40 A
  • Accept­able current rating AC23 category A
    40 A
  • Accept­able current rating AC23 category B
    40 A
  • Rated short-­cir­cuit making capa­city Icm under 415 V AC according to IEC 60947-3
    1.80 kA
  • Rated short-­time with­stand current Icw 1s IEC 60947
    1.26 kA
  • Rated short-­time with­stand current Icw IEC 60947
    1.26 kA
Archi­tec­ture
  • Type of pole
    3P
  • Control/­op­er­a­tion element
    Short rotary handle
  • Number of poles
    3
Connec­tion
  • Cross-sec­tion rigid conductor
    16 mm²
Voltage
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated impulse with­stand voltage Uimp
    8,000 V
  • Rated oper­a­tional voltage Ue
    380 - 415 V
Power
  • Power loss per pole at In
    0.90 W
  • Total power loss under IN
    2.70 W
  • Rated oper­a­tional power under 400 V AC AC1
    26,000 W
  • Rated oper­a­tional power under 400 V AC AC23
    18,000 W
Install­a­tion, mounting
  • Nominal tight­ening torque
    2 - 2.2 Nm
Equip­ment
  • Motor drive optional
    No
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Use condi­tions
  • Oper­ating temper­ature
    -20 - 70 °C
Cover, door
  • Inter­lock­able
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP20
Frequency
  • Frequency
    50 - 50 Hz
Connectivity
  • Type of connec­tion
    Screw terminal
Func­tions
  • Is reversing switch
    No
  • Version as emer­gency stop install­a­tion
    No
  • Version as main switch
    Yes
  • Version as main­ten­ance/ser­vice switch
    Yes
  • Version as safety switch
    Yes
  • Version as switch discon­nector compact
    Yes
Capa­city
  • Number of modules
    2.57

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

REACH declaration HAB304 (english)
PDF
103,10 kB
RoHS declaration HAB304 (english)
PDF
103,59 kB

Downloads

  • Product image

    Image HAB304 | Hager

    Product Image HAB304

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-04-13

    PDF
    835,39 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-09-07

    PDF
    635,00 kB
