FW flush encl. 6-rows 72 modules, IP30, classII, niche 957x315x115mm FWU61S

EAN
3250612739684
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

FW flush encl. 6-rows 72 modules, IP30, classII, niche 957x315x115mm

FWU61S

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (33)
    • Built-in field for tele­commu­nic­a­tions 4 products available
    • Lock system 8 products available
    • Cover strip 1 products available
    • Accessor­ies/s­pare parts for terminals 2 products available
    • Mounting plate for distri­bu­tion board 5 products available
    • Rail terminal bar 4 products available

    Complete your system

    • Built-in field for tele­commu­nic­a­tions
    • Lock system
    • Cover strip
    • Accessor­ies/s­pare parts for terminals
    • Mounting plate for distri­bu­tion board
    • Rail terminal bar
    • DIN rail
    • Panel for distri­bu­tion board
    • Feed-­through terminal block
    • Docu­ment holder
    • Mounting accessories
    • Labelling material
    • UN31TN

      Kit, univers FW, media with perforated mounting plate, 450x250mm
      0.00 €  / *
    • UN41TN

      Kit, univers FW, media with perforated mounting plate, 600x250mm
      0.00 €  / *
    • UN51TN

      Kit, univers FW, media with perforated mounting plate, 750x250mm
      0.00 €  / *
    • UN61TN

      Kit, univers FW, media with perforated mounting plate, 900x250mm
      0.00 €  / *
    • FZ451N

      Lock, univers, square 7mm, with 1 key, for enclosure IP44/54
      0.00 €  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
      0.00 €  / *
    • FZ598N

      Door shield with handle, for enclosure univers IP44
      0.00 €  / *
    • FZ824N

      Lock, univers, cylinder Nr.1242E with seal cover and 2 keys
      0.00 €  / *
    • FZ501N

      Lock, univers, double-bit 3mm, with 1 key, for enclosure IP54
      0.00 €  / *
    • FZ502N

      Lock, univers, triangular closing 7mm, with 1 key, for enclosure IP54
      0.00 €  / *
    • FZ531N

      Lock, univers, knob handle, cylinder Nr.1333, with 2 keys, for encl. IP44/IP54
      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm
      0.00 €  / *
    • KN00A

      Terminal carrier, QC, universal adapter
      0.00 €  / *
    • UZ00K1

      Connection support, univers, for DIN rail mounting of QuickConnect modules
      0.00 €  / *
    • UZ31M1

      Mounting plate, universN, for enclosure 500x300mm, 1 section
      0.00 €  / *
    • UZ41M1

      Mounting plate, universN, for enclosure 650mm, 1 field
      0.00 €  / *
    • UZ51M1

      Mounting plate, universN, for enclosure 800x300mm, 1section
      0.00 €  / *
    • UZ61M1

      Mounting plate, universN, 950mm, for enclosure 950mm, 1 field
      0.00 €  / *
    • UZ41M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 650mm
      0.00 €  / *
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²
      0.00 €  / *
    • KM22A

      PE/N Terminal, univers Z, 2x22 clamping points, 10x16/12x10 mm²
      0.00 €  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²
      0.00 €  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²
      0.00 €  / *
    • UN03FN

      Vertical uprights, univers FW, height 450mm, 2 pieces
      0.00 €  / *
    • UN06FN

      Vertical uprights, univers FW, height 900mm, 2 pieces
      0.00 €  / *
    • UN07FN

      Vertical uprights, univers FW, height 1050mm, 2 pieces
      0.00 €  / *
    • UN06GN

      Equipment unit for FW flush encl. with 6 DIN rails, without cover, 900x250mm
      0.00 €  / *
    • KXA04LH

      Feed-through terminal-phase , 4mm² , 800V/32A, screw connection
      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive
      0.00 €  / *
    • VZ405N

      Mounting kit for hollow wall, Volta, VegaD, FWU, for wall box fixation, 4 pcs.
      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces
      0.00 €  / *
    • UZ005

      Identifer stripe, universN, for device slot, 12 pieces
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      2
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting, Hollow wall
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      6
    • Number of rows
      6
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      72
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      1,003 mm
    • Width
      353 mm
    • Depth
      125 mm
    • Built-in height
      952 mm
    • Built-in width
      310 mm
    • Built-in depth
      112 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK09
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock
    • Glow wire test
      850 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
    PDF
    8,50 MB
    Hager REACH declaration FWU61S
    PDF
    Hager RoHS report FWU61S
    PDF

    Downloads

    • Product image

      Image FWU61S | Hager

      Product Image FWU61S

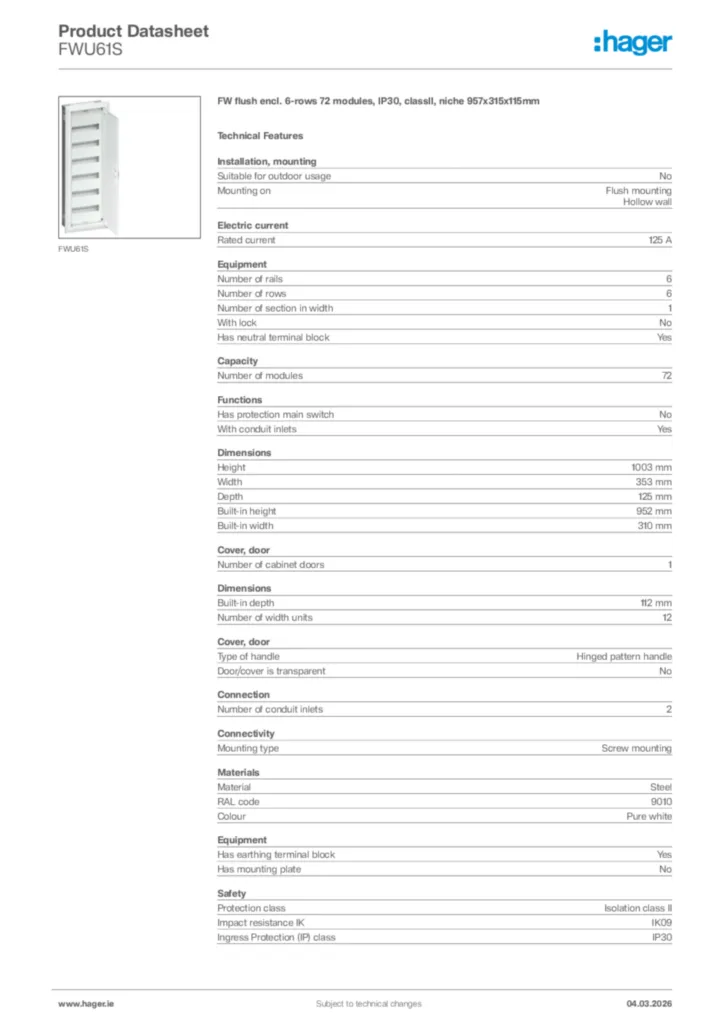

    • Product datasheet

      Image Hager Product data sheet FWU61S | Hager

      Hager Product data sheet FWU61S

      FW flush encl. 6-rows 72 modules, IP30, classII, niche 957x315x115mm

      PDF

    • Handbook

      Image Handbook en-GB 2023-04-11 | Hager

      Handbook en-GB 2023-04-11

      PDF
      5,83 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-29

      PDF
      143,25 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-01-08

      PDF
      289,50 kB
