Steel enclosure, Univers, IP55, CL1, 950x1050x275 mm FR64E
EAN
3250610702673
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly busbars 1 products available -
Gland plate for enclosure 2 products available -
Door/operating panel 1 products available -
Top panel/roof for enclosure 2 products available -
Lock system 8 products available -
See more 17 other products available
Complete your system
-
FZ506
Euro-profile cylinder 1242E for swing lever FZ537
-
FZ519
Euro-profile cylinder 405 for swing lever FZ537
-
FZ520
Euro-profile cylinder 455 for swing lever FZ537
-
FZ530Lock,univers, T-handle, for enclosures FA / FT / FG
-
FZ537Rotary and sealing handle lock, Univers
-
MES-PHZ3K7Profile half cylinder triangular 7mm
-
MES-PHZ4K8Profile half cylinder square 8mm
-
MES-PHZDB3Profile half cylinder double-bit 3mm

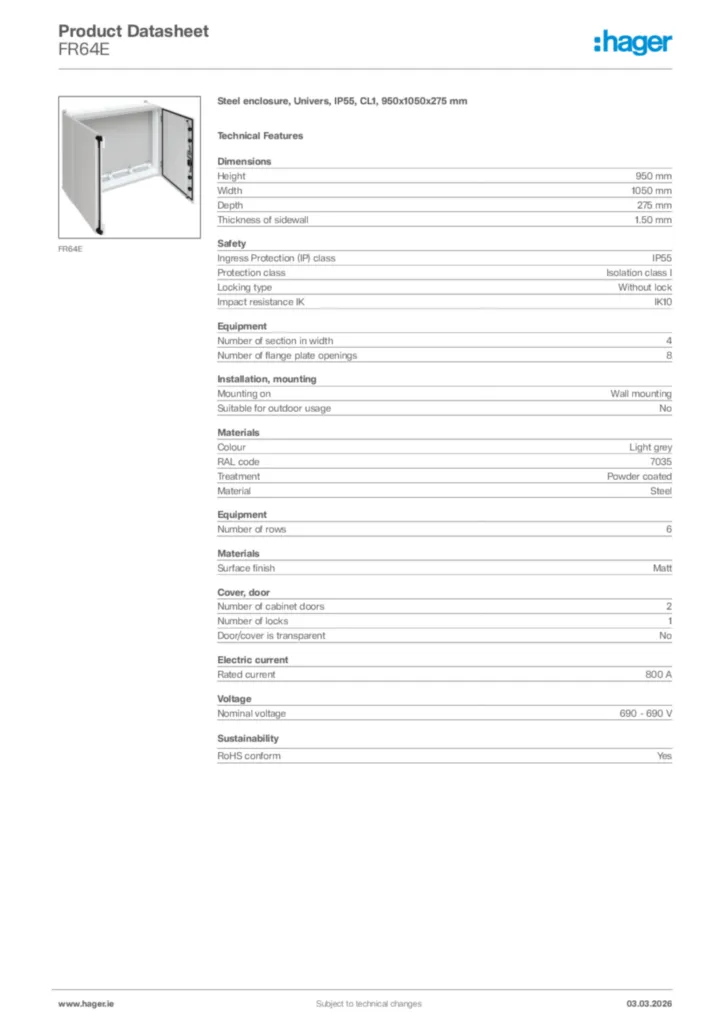

Technical properties
Dimensions
-
Height950 mm
-
Width1,050 mm
-
Depth275 mm
-
Thickness of sidewall1.50 mm
Safety
-
Ingress Protection (IP) classIP55
-
Protection classIsolation class I
-
Locking typeWithout lock
-
Impact resistance IKIK10
Equipment
-
Number of section in width4
-
Number of flange plate openings8
-
Number of rows6
Installation, mounting
-
Mounting onWall mounting
-
Suitable for outdoor usageNo
Materials
-
ColourLight grey
-
RAL code7035
-
TreatmentPowder coated
-
MaterialSteel
-
Surface finishMat
Cover, door
-
Number of cabinet doors2
-
Number of locks1
-
Door/cover is transparentNo
Electric current
-
Rated current800 A
Voltage
-
Nominal voltage690 - 690 V
