    Enclosure, univers, IP44,CL 1, 800x800x205mm, empty FP53TN2

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Enclosure, univers, IP44,CL 1, 800x800x205mm, empty

    FP53TN2

    • catalog.pageproduct.productbar_accessories.link
    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (20)
    • Mounting plate for distri­bu­tion board 4 product.page.accessories.products-available
    • Compon­ents for arrange­ment/baying system 1 product.page.accessories.products-available
    • Gland plate for enclosure 2 product.page.accessories.products-available
    • Lock system 4 product.page.accessories.products-available
    • Docu­ment holder 2 product.page.accessories.products-available
    • DIN rail 5 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Mounting plate for distri­bu­tion board
    • Compon­ents for arrange­ment/baying system
    • Gland plate for enclosure
    • Lock system
    • Docu­ment holder
    • DIN rail
    • Mounting accessories
    • Touch-up stick
    • FL408A

      Steel mounting plate, Orion.Plus, 480x343 mm
      €0.00  / *
    • FL407A

      Steel mounting plate, Orion.Plus, 480x243 mm
      €0.00  / *
    • FL404A

      Steel mounting plate, Orion.Plus, 330x243 mm
      €0.00  / *
    • FL402A

      Steel mounting plate, Orion.Plus, 280x193 mm
      €0.00  / *
    • FZ737B

      Connection set, univers Z, for enclosure connection IP44/54 horizontal
      €0.00  / *
    • FZ426

      Cable entry plate, univers, for not sealed area, for perforation, IP44/54
      €0.00  / *
    • FZ424N

      Cable entry plate, univers, for IP44/54 enclosures, metal
      €0.00  / *
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
      €0.00  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
      €0.00  / *
    • FZ598N

      Door shield with handle, for enclosure univers IP44
      €0.00  / *
    • FZ835N

      Locking rods, univers, for IP54 closing, for use in enclosures height 800mm
      €0.00  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive
      €0.00  / *
    • FZ757A4

      Document holder, glued, DIN A4
      €0.00  / *
    • UN06A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 900mm, 2 pieces
      €0.00  / *
    • UN05A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 750mm, 2 pieces
      €0.00  / *
    • UN02A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 300mm, 2 pieces
      €0.00  / *
    • UT12PN

      Horizontal traverse, Univers, L500 mm 2 section
      €0.00  / *
    • UT12QN

      Horizontal traverse, Univers, L750 mm 3 section
      €0.00  / *
    • FZ803B

      Mounting brackets, univers, for enclosure IP44/IP54, outside
      €0.00  / *
    • FZ792N

      Color spray, 150ml RAL 9010
      €0.00  / *

    catalog.pageproduct.tab_additional_title.link

    Dimen­sions
    • Height
      800 mm
    • Width
      800 mm
    • Depth
      205 mm
    • Thick­ness of side­wall
      1 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP44
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      Bar lock, Without lock
    • Impact resist­ance IK
      IK09
    Equip­ment
    • Number of section in width
      3
    • Number of flange plate open­ings
      6
    • Number of rows
      5
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      catalog.pageproduct.attribute_boolean.no
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Steel
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      2
    • Number of locks
      1
    • Door/­cover is trans­parent
      catalog.pageproduct.attribute_boolean.no
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current IN
      250 A

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Unequipped metering enclosure UniversZ (English)
    PDF
    5,61 MB
    REACH declaration FP53TN2
    PDF
    RoHS report FP53TN2
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div FP53TN2

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

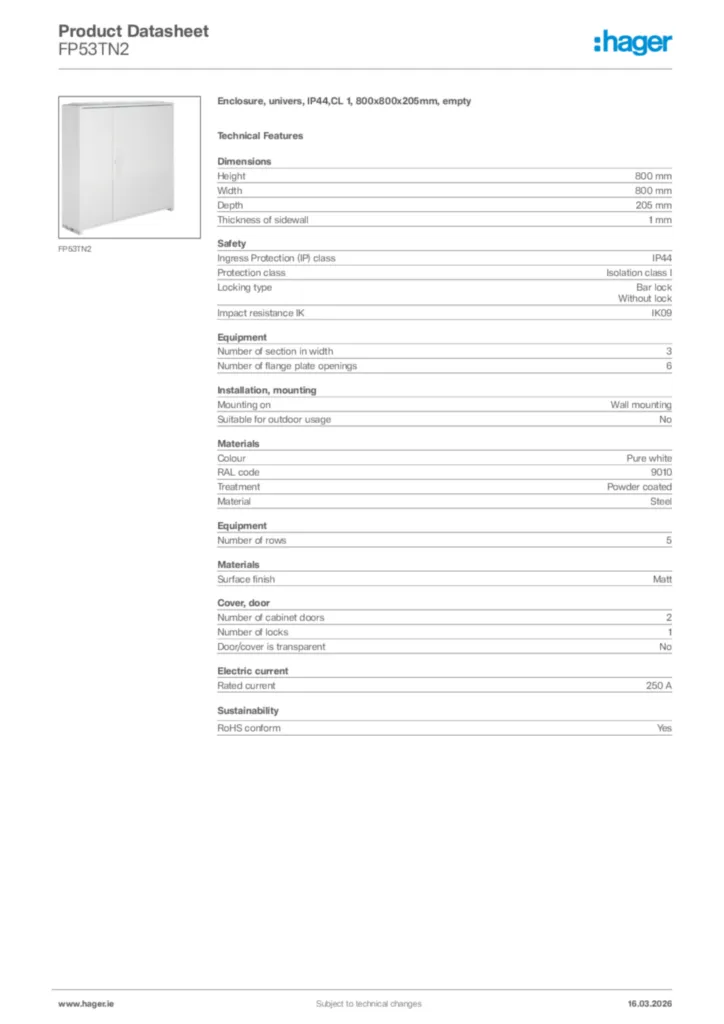

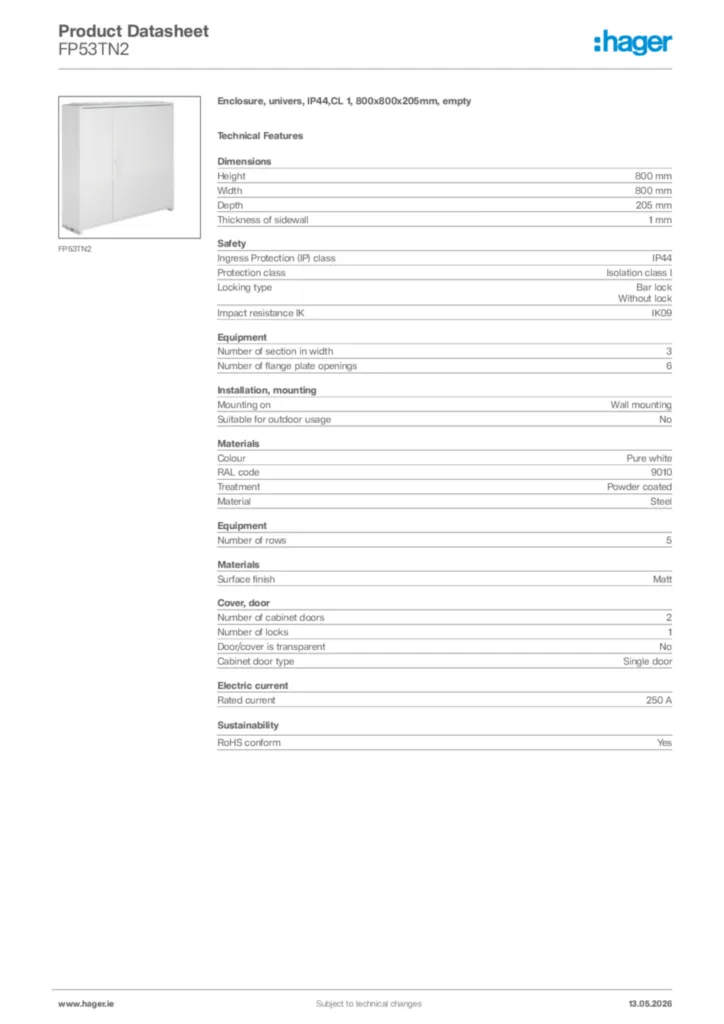

      Hager Product data sheet FP53TN2

      Enclosure, univers, IP44,CL 1, 800x800x205mm, empty

      PDF

    • ProductInstallationManual

      catalog.pagelevel.alt_image.img

      Installation manual International 2026-03-25

      PDF
      1,94 MB

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      EU Declaration of Conformity

      Declaration of conformity en-GB 2026-10-01

      PDF
      781,05 kB
      catalog.pagelevel.alt_image.img

      EU Declaration of Conformity

      Declaration of conformity en-GB 2026-10-06

      PDF
      791,59 kB
    catalog.pageproduct.showmore_documents.button

    catalog.pagelevel.other_product_list.div

      5
    • 1
      FP93TN2 - Enclosure, univers, IP44, CL 1, 1400x800x205mm, empty
      FP93TN2
      Enclosure, univers, IP44, CL 1, 1400x800x205mm, empty
    • 2
      FR45E - Steel enclosure, Univers, IP55, CL1, 650x1300x275 mm
      FR45E
      Steel enclosure, Univers, IP55, CL1, 650x1300x275 mm
    • 3
      FP52TN2 - Enclosure, univers, IP44, CL 1, 800x550x205mm, empty
      FP52TN2
      Enclosure, univers, IP44, CL 1, 800x550x205mm, empty
    • 4
      FR44E - Steel enclosure, Univers, IP55, CL1, 650x1050x275 mm
      FR44E
      Steel enclosure, Univers, IP55, CL1, 650x1050x275 mm
    • 5
      FP64TN2 - Enclosure, univers, IP44, CL 1, 950x1050x205mm, empty
      FP64TN2
      Enclosure, univers, IP44, CL 1, 950x1050x205mm, empty
