1 channel digital time switch weekly cycle EGN103

EAN
3250618502435
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

1 channel digital time switch weekly cycle

EGN103

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Bright­ness sensor 2 products available
  • Accessor­ies/s­pare parts for time switches 2 products available

Complete your system

  • Bright­ness sensor
  • Accessor­ies/s­pare parts for time switches
  • EEN002

    Cell for twilight switch, flush mounted
    0.00 €  / *
  • EEN003

    Cell for twilight switch, wall mounted
    0.00 €  / *
  • EG004

    Clock key for time switches
    0.00 €  / *
  • EGN003

    Programming Bluetooth key for EGN103
    0.00 €  / *

Technical properties

Voltage
  • Nominal voltage
    230 - 230 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
Frequency
  • Frequency
    50 - 60 Hz
Power
  • 230 V incan­des­cent and halogen lamp
    2,300 W
Lighting
  • Max. load fluor­es­cent lamp in series
    1,000 W
  • Max. load fluor­es­cent lamp parallel compensated
    400 VA
Func­tions
  • Power reserve in years
    5 y
  • With network synchron­isa­tion
    No
  • With quartz synchron­isa­tion
    Yes
  • Number of func­tion chan­nels
    1
Equip­ment
  • Accuracy per day
    1.50 s
  • With impulse programme
    No
  • Number of chan­nels
    1
Connec­tion
  • Type of contacts
    1x changeover
  • Cross-sec­tion flex­ible conductor
    1 - 6 mm²
  • Cross-sec­tion rigid conductor
    1.5 - 10 mm²
Settings
  • Daily programme
    Yes
  • Weekly programme
    Yes
  • Annual programme
    No
Use condi­tions
  • Oper­ating temper­ature
    -5 - +45 °C
Texts
  • Type of connec­tion
    With screw terminal
Dimen­sions
  • Height
    85 mm
  • Width
    35.80 mm
  • Depth
    61.60 mm
Capa­city
  • Number of modules
    2
Main elec­trical attrib­utes
  • Minimum interval between 2 switching times
    1 min

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Time switch Multi-function 1 channel bluetooth, wall mounted cell
PDF
875,51 kB
Hager REACH declaration EGN103
PDF
RoHS report EGN103
PDF

Downloads

  • Product image

    Image EGN103 | Hager

    Product Image EGN103

  • Product datasheet

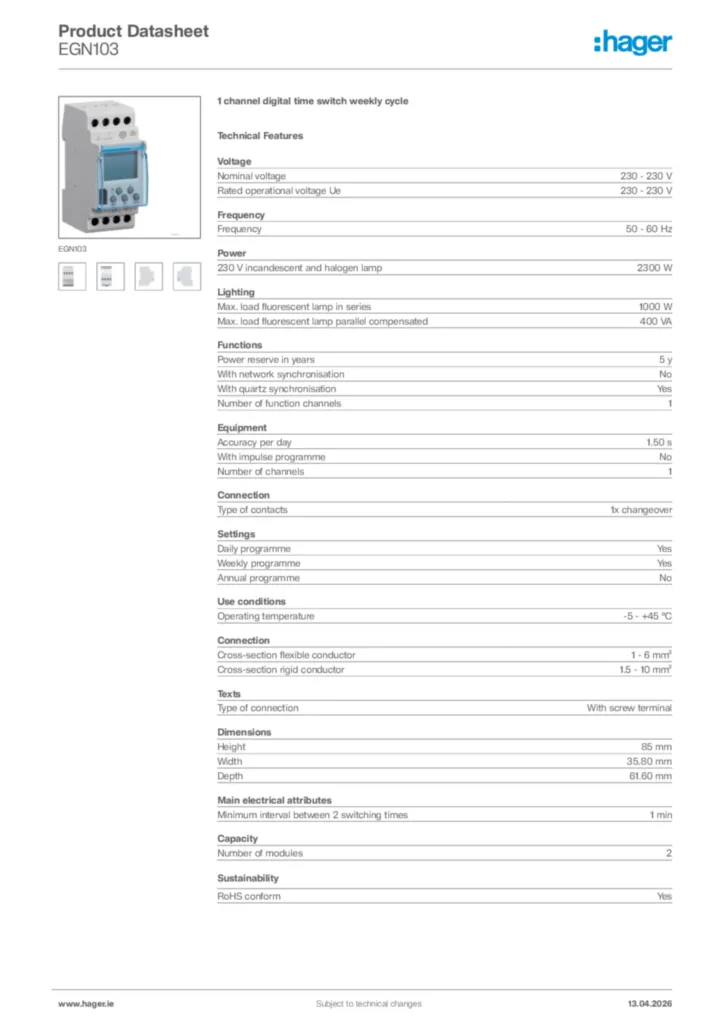

    Image Hager Product data sheet EGN103 | Hager

    Hager Product data sheet EGN103

    1 channel digital time switch weekly cycle

    PDF

  • Manual

    Image Manual en-GB 2020-11-24 | Hager

    Manual en-GB 2020-11-24

    PDF
    1,28 MB

  • Declaration of conformity

    Image Declaration of conformity International 2023-01-12 | Hager

    Declaration of conformity International 2023-01-12

    PDF
    234,58 kB
    Image Declaration of conformity International 2023-01-12 | Hager

    Declaration of conformity International 2023-01-12

    PDF
    305,69 kB
