    1 Phase kWhmeter direct 40A 1M MODBUS MID ECR140D

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    1 Phase kWhmeter direct 40A 1M MODBUS MID

    ECR140D

    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    catalog.pageproduct.tab_additional_title.link

    Archi­tec­ture
    • Bus system
      MODBUS
    • Type of pole
      1P+N
    Elec­tric current
    • Rated current IN
      40 A
    • Maximum meas­uring circuit current
      40 A
    Capa­city
    • Number of modules
      1
    Connectivity
    • Type of connec­tion
      Direct connec­tion
    • Connectivity type
      ModBus RS-485 3 wires
    Dimen­sions
    • Height
      92 mm
    • Width
      18 mm
    • Depth
      60 mm
    Equip­ment
    • Type of pulse gener­ator
      Optical
    Compat­ib­ility
    • Suit­able for
      Purchase/supply
    Connec­tion
    • Cross-sec­tion of metering input
      16 - 16 mm²
    • Cross-sec­tion of metering output
      16 - 16 mm²
    • Connect­or/plug type Bus system
      Bus connec­tion terminal
    Install­a­tion, mounting
    • Nominal tight­ening torque
      1 - 1 Nm
    • Mounting on
      DIN rail
    Mech­an­ical features
    • Nominal tight­ening torque digital terminal
      0.50 - 0.50 Nm
    Meas­ure­ment
    • Meas­uring system
      Direct meas­ure­ment
    • Type of meas­uring instru­ment
      Elec­tronic
    • Current meas­ure­ment range
      0.25 - 40.0 A
    • Meas­ure­ment range voltage Ph-N
      92 - 276 V
    • Frequency meas­uring range
      45 - 65 Hz
    Power supply
    • Number of phases for power supply
      1
    Func­tions
    • Accuracy class
      B
    • Tariff type
      - /T1...T8 Modbus
    • Is calib­rated
      catalog.pageproduct.attribute_boolean.yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 55 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Power
    • Power consump­tion (VA)
      2 VA
    • Power dissip­a­tion at IN
      1 W
    Frequency
    • Frequency
      50 - 50 Hz
    Data act compli­ance
    • Is gener­ating data
      catalog.pageproduct.attribute_boolean.yes
    • Data types
      Alarms, Device energy manage­ment, Elec­trical meas­ure­ment, Detailed elec­trical meas­ure­ment
    • Data formats
      MODBUS (RTU)
    • Estim­ated daily data volume
      10 KB - 100 KB
    • Real time data gener­a­tion
      catalog.pageproduct.attribute_boolean.yes
    • Data stored on device
      catalog.pageproduct.attribute_boolean.yes

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration ECR140D
    PDF
    RoHS report ECR140D
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div ECR140D

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

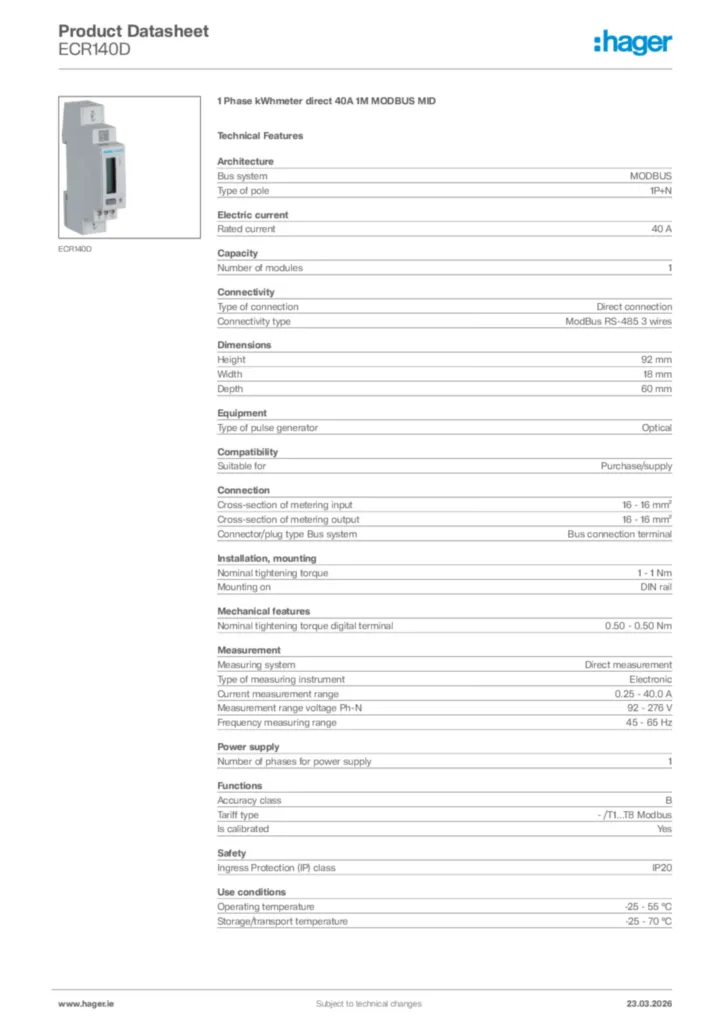

      Hager Product data sheet ECR140D

      1 Phase kWhmeter direct 40A 1M MODBUS MID

      PDF

    • ProductAttachment

      catalog.pagelevel.alt_image.img

      Modbus table Summary V1 14

      Product attachment International 2022-10-04

      PDF
      836,11 kB

    • ProductMaintenanceManual

      catalog.pagelevel.alt_image.img

      Installer Leaflet ECR140D

      Manual en-GB, de-DE 2024-01-11

      PDF
      1,91 MB

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-04-15

      PDF
      451,44 kB
