1 Phase kWhmeter direct 80A 2M MODBUS MID

ECR180D

  • Modular devices

1 Phase kWhmeter direct 80A 2M MODBUS MID ECR180D

EAN
3250612231447
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

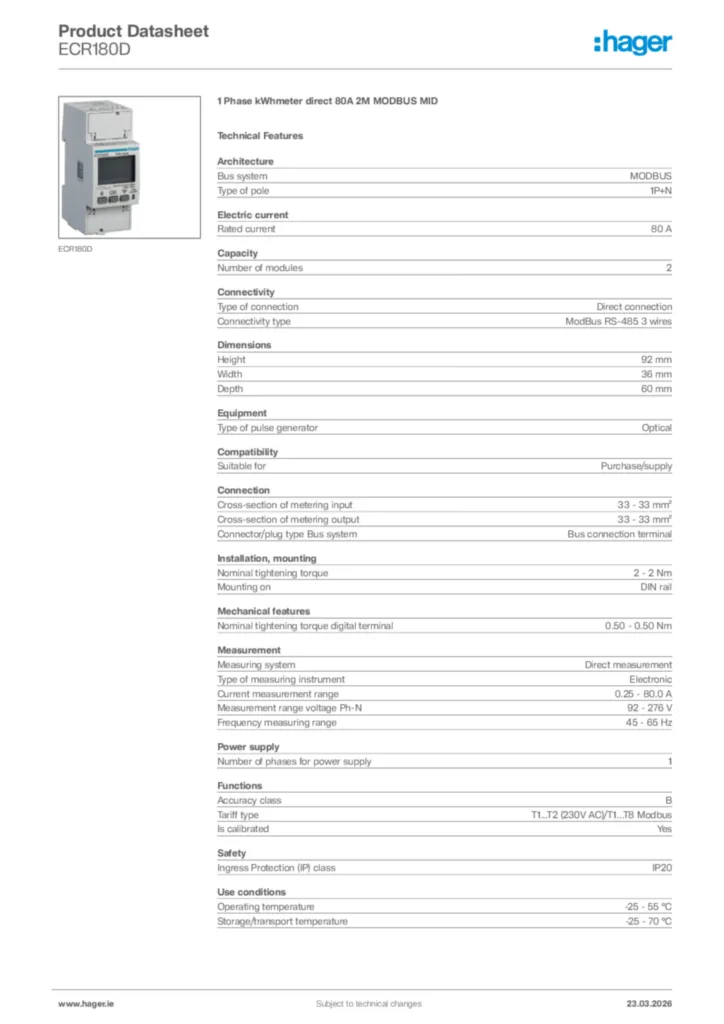

Download the data sheet

Technical properties

Archi­tec­ture
  • Bus system
    MODBUS
  • Type of pole
    1P+N
Elec­tric current
  • Rated current
    80 A
  • Maximum meas­uring circuit current
    80 A
Capa­city
  • Number of modules
    2
Connectivity
  • Type of connec­tion
    Direct connec­tion
  • Connectivity type
    ModBus RS-485 3 wires
Dimen­sions
  • Height
    92 mm
  • Width
    36 mm
  • Depth
    60 mm
Equip­ment
  • Type of pulse gener­ator
    Optical
Compat­ib­ility
  • Suit­able for
    Purchase/supply
Connec­tion
  • Cross-sec­tion of metering input
    33 - 33 mm²
  • Cross-sec­tion of metering output
    33 - 33 mm²
  • Connect­or/plug type Bus system
    Bus connec­tion terminal
Install­a­tion, mounting
  • Nominal tight­ening torque
    2 - 2 Nm
  • Mounting on
    DIN rail
Mech­an­ical features
  • Nominal tight­ening torque digital terminal
    0.50 - 0.50 Nm
Meas­ure­ment
  • Meas­uring system
    Direct meas­ure­ment
  • Type of meas­uring instru­ment
    Elec­tronic
  • Current meas­ure­ment range
    0.25 - 80.0 A
  • Meas­ure­ment range voltage Ph-N
    92 - 276 V
  • Frequency meas­uring range
    45 - 65 Hz
Power supply
  • Number of phases for power supply
    1
Func­tions
  • Accuracy class
    B
  • Tariff type
    T1...T2 (230V AC)/T1...T8 Modbus
  • Is calib­rated
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -25 - 55 °C
  • Stor­age/trans­port temper­ature
    -25 - 70 °C
Power
  • Power consump­tion VA
    2 VA
  • Total power loss under IN
    1 W
Frequency
  • Frequency
    50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

REACH declaration ECR180D (english)
PDF
103,10 kB

Downloads

  • Product image

    Image ECR180D | Hager

    Product Image ECR180D

  • Product attachment

    Image Modbus table Summary V1 14 | Hager

    Modbus table Summary V1 14

    Product attachment International 2022-10-04

    PDF
    836,11 kB

  • Manual

    Image Installer Leaflet ECR180D | Hager

    Installer Leaflet ECR180D

    Manual de-DE, en-GB 2024-01-11

    PDF
    2,87 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-04-15

    PDF
    456,84 kB
