Multifunction measurement device DIN rail 2x3-Phase RS485 JKM02

EAN
5015654793500
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Multifunction measurement device DIN rail 2x3-Phase RS485

JKM02

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Referenced by 23 products available

Referenced by

  • JK118BG

    125A 18 Way TPN Board Glazed Door
    0.00 €  / *
  • JK104B

    125A 4 Way TPN Board Plain Door
    0.00 €  / *
  • JK104BG

    125A 4 Way TPN Board Glazed Door
    0.00 €  / *
  • JK106B

    125A 6 Way TPN Board Plain Door
    0.00 €  / *
  • JK106BG

    125A 6 Way TPN Board Glazed Door
    0.00 €  / *
  • JK108B

    125A 8 Way TPN Board Plain Door
    0.00 €  / *
  • JK108BG

    125A 8 Way TPN Board Glazed Door
    0.00 €  / *
  • JK112B

    125A 12 Way TPN Board Plain Door
    0.00 €  / *
  • JK112BG

    125A 12 Way TPN Board Glazed Door
    0.00 €  / *
  • JK116B

    125A 16 Way TPN Board Plain door
    0.00 €  / *
  • JK116BG

    125A 16 Way TPN Board Glazed Door
    0.00 €  / *
  • JK118B

    125A 18 Way TPN Board Plain Door
    0.00 €  / *
  • JK224BG

    250A 24 Way TPN Board Glazed Door
    0.00 €  / *
  • JK124B

    125A 24 Way TPN Board Plain Door
    0.00 €  / *
  • JK124BG

    125A 24 Way TPN Board Glazed Door
    0.00 €  / *
  • JK208B

    250A 8 Way TPN Board Plain
    0.00 €  / *
  • JK208BG

    250A 8 Way TPN Board Glazed Door
    0.00 €  / *
  • JK212B

    250A 12 Way TPN Board Plain Door
    0.00 €  / *
  • JK212BG

    250A 12 Way TPN Board Glazed Door
    0.00 €  / *
  • JK216B

    250A 16 Way TPN Board Plain Door
    0.00 €  / *

Technical properties

Archi­tec­ture
  • Bus system
    MODBUS
  • Type of pole
    4P
Capa­city
  • Number of modules
    4
Dimen­sions
  • Height
    90 mm
  • Width
    70 mm
  • Depth
    62 mm
Equip­ment
  • Type of pulse gener­ator
    Elec­trical
Compat­ib­ility
  • Suit­able for
    Purchase
Connec­tion
  • Connect­or/plug type Bus system
    Pulse, RS485
Install­a­tion, mounting
  • Mounting on
    DIN rail
Meas­ure­ment
  • Meas­uring system
    Meas­ure­ment trans­former
  • Type of meas­uring instru­ment
    Elec­tronic
  • Meas­ure­ment range voltage Ph-N
    60 - 300 V
  • Meas­ure­ment range voltage Ph-Ph
    104 - 520 V
  • Frequency meas­uring range
    45 - 65 Hz
Func­tions
  • Accuracy class
    B
  • Tariff type
    One-tariff
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -10 - 55 °C
  • Stor­age/trans­port temper­ature
    -20 - 75 °C
Frequency
  • Frequency
    45 - 65 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration JKM02
PDF
Hager RoHS report JKM02
PDF

Downloads

  • Product image

    Image JKM02 | Hager

    Product Image JKM02

  • Product datasheet

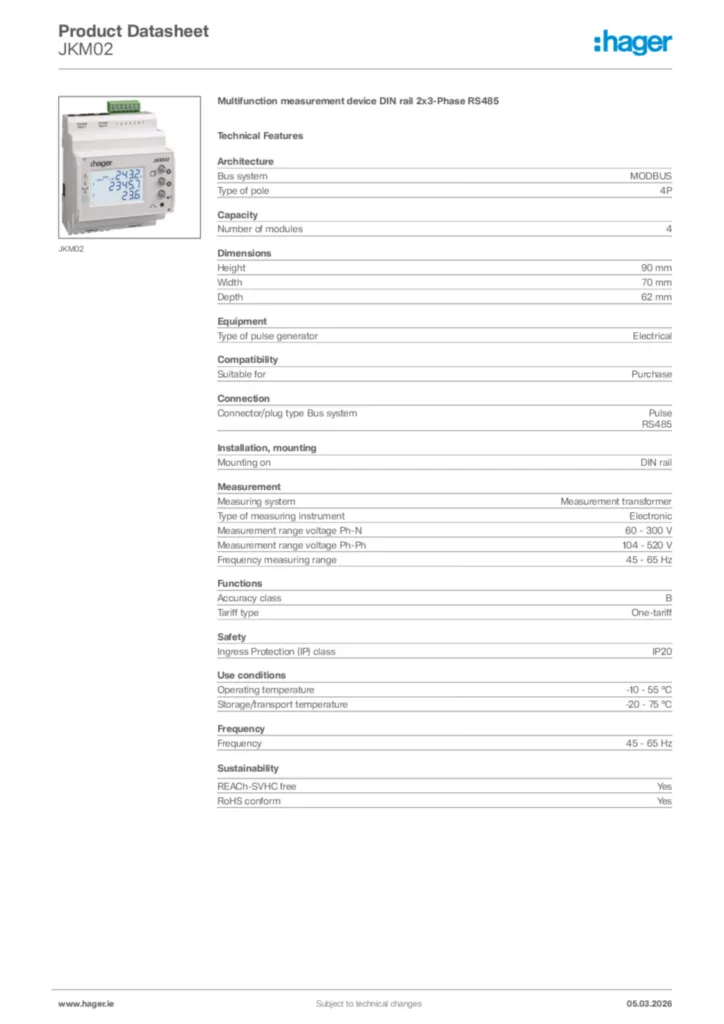

    Image Hager Product data sheet JKM02 | Hager

    Hager Product data sheet JKM02

    Multifunction measurement device DIN rail 2x3-Phase RS485

    PDF

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-09-29

    PDF
    276,98 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-09-29

    PDF
    269,32 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    302,50 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    296,11 kB
