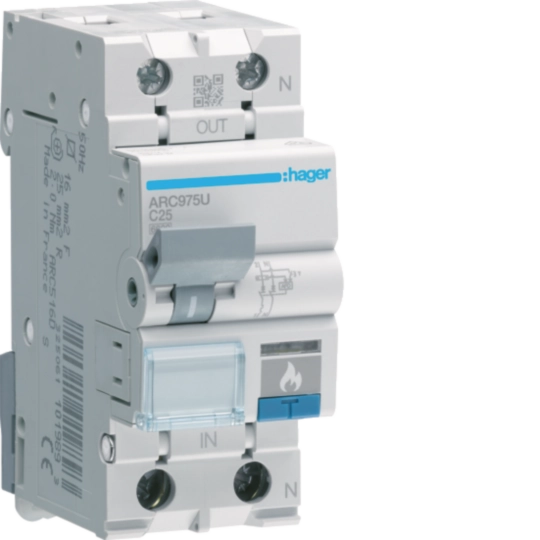

MCB with dangerous arc detection 1P+N 6kA C-25A 2M ARC975U

EAN
3250611312024
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
No longer available

MCB with dangerous arc detection 1P+N 6kA C-25A 2M

ARC975U

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Modular phase busbar 4 products available
  • Mech­anic accessories for low-voltage compon­ents 1 products available
  • Shunt release 1 products available
  • Auxil­i­aries contact block 2 products available
  • Protective cap/strip for phase busbar 1 products available

Complete your system

  • Modular phase busbar
  • Mech­anic accessories for low-voltage compon­ents
  • Shunt release
  • Auxil­i­aries contact block
  • Protective cap/strip for phase busbar
  • KDN263B

    Insulated busbar 2P 63A fork 10mm² 57M
    0.00 €  / *
  • KDN451D

    Insulated busbar 3x(P+N) 80A fork 16mm² 12M
    0.00 €  / *
  • KDN280B

    Insulated busbar 2P 80A fork 16mm² 57M
    0.00 €  / *
  • KDN451E

    Insulated busbar 3x(P+N) 80A fork 16mm² 54M
    0.00 €  / *
  • LZ060

    Heat dissipation insert
    0.00 €  / *
  • MZ203

    Shunt trip 230-415V AC 110-130V DC
    0.00 €  / *
  • MZ202

    Alarm contact 1C+1O 6A 240V AC
    0.00 €  / *
  • MZ201

    Auxiliary contact 1C+1O 6A 240V AC
    0.00 €  / *
  • KZN024

    Endcap for busbar 4P
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    25 A
  • Rated current -25°C
    28.19 A
  • Rated current at -20°C
    27.91 A
  • Rated current -15°C
    27.64 A
  • Rated current -10°C
    27.36 A
  • Rated current -5°C
    27.07 A
  • Rated current at 0°C
    26.79 A
  • Rated current 5°C
    26.50 A
  • Rated current 10°C
    26.21 A
  • Rated current 15°C
    25.91 A
  • Rated current at 20°C
    25.61 A
  • Rated current 25°C
    25.31 A
  • Rated current 30°C
    25 A
  • Rated current 35°C
    24.76 A
  • Rated current at 40°C
    24.52 A
  • Rated current at 45°C
    24.27 A
  • Rated current at 50°C
    24.02 A
  • Rated current 55°C
    23.77 A
  • Rated current 60°C
    23.52 A
  • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
    6 kA
Archi­tec­ture
  • Curve
    C
  • Type of pole
    1P+N
Install­a­tion, mounting
  • Nominal tight­ening torque top terminal
    2 - 2 Nm
  • Nominal tight­ening torque down terminal
    2 - 2 Nm
  • Nominal tight­ening torque
    2 - 2 Nm
  • Type of bottom connec­tion for modular devices
    bicon­nect
  • Type of top connec­tion for modular devices
    Screw terminal
Main elec­trical attrib­utes
  • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
    6 kA
Voltage
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4,000 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
Power
  • Total power loss under IN
    6.48 W
Use condi­tions
  • Class of energy limit­a­tion I²t
    3
  • Oper­ating temper­ature
    -25 - 60 °C
  • Stor­age/trans­port temper­ature
    -40 - 70 °C
Endur­ance
  • Number of mech­an­ical oper­a­tions
    4,000
  • Elec­tric endur­ance in number of cycles
    2,000
Capa­city
  • Number of modules
    2
Dimen­sions
  • Height
    85 mm
  • Width
    35.50 mm
  • Depth
    70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration ARC975U
PDF
Hager RoHS report ARC975U
PDF

Downloads

  • Product image

    Image ARC975U | Hager

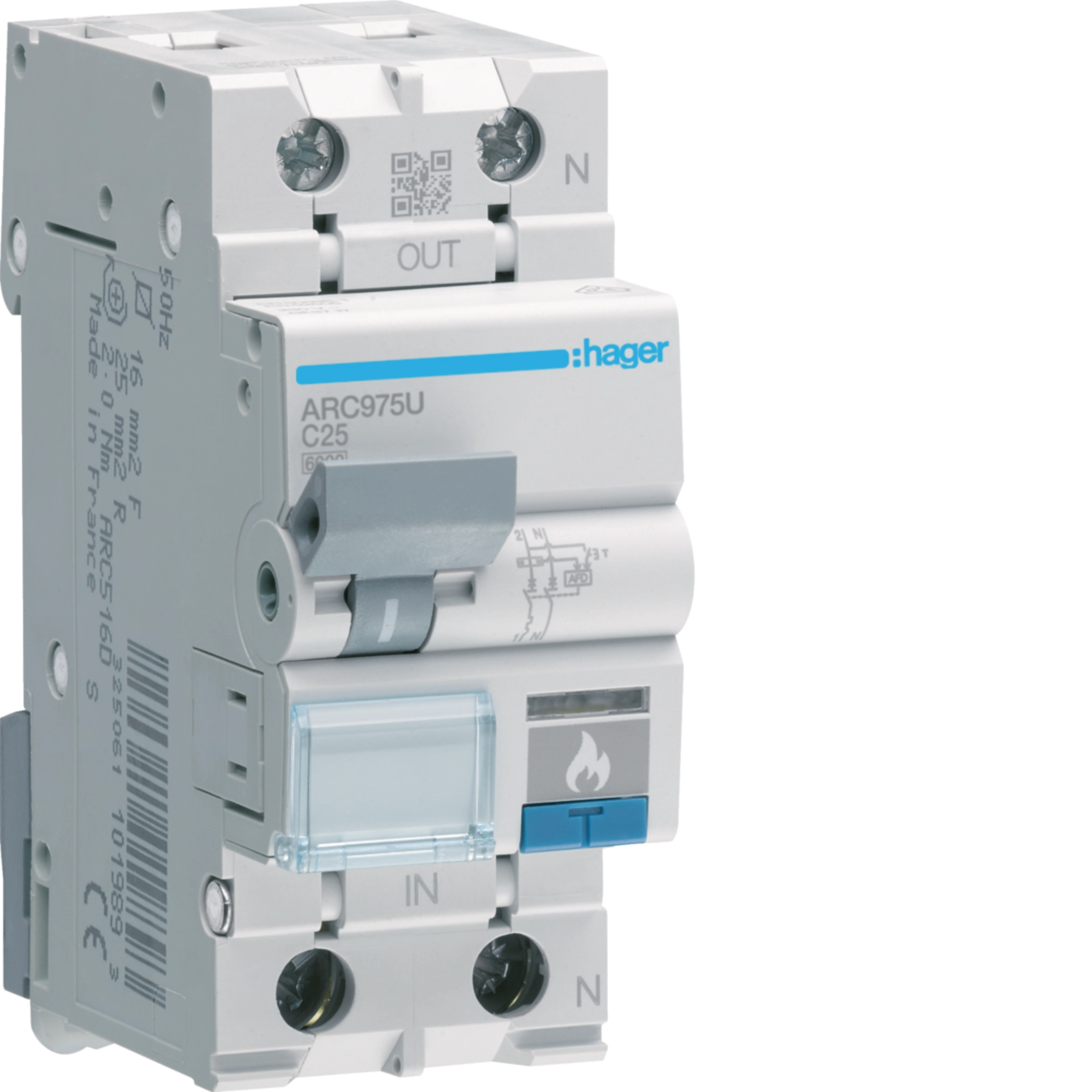

    Product Image ARC975U

  • Product datasheet

    Image Hager Product data sheet ARC975U | Hager

    Hager Product data sheet ARC975U

    MCB with dangerous arc detection 1P+N 6kA C-25A 2M

    PDF

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-10-22

    PDF
    398,23 kB
    Image UKCA Declaration of Conformity​ | Hager

    UKCA Declaration of Conformity​

    Declaration of conformity en-GB 2025-10-22

    PDF
    405,87 kB
