ADA582D - RCBO 1P+N 10kA C-32A 30mA A Class

Modular devices

RCBO 1P+N 10kA C-32A 30mA A Class ADA582D

Name: ADA582D
Brand: Hager
SKU: ADA582D

EAN

3250611067863

Packaging

1 Piece

Add to a list

Accessories
Technical properties
Environmental value
Documentations
More products

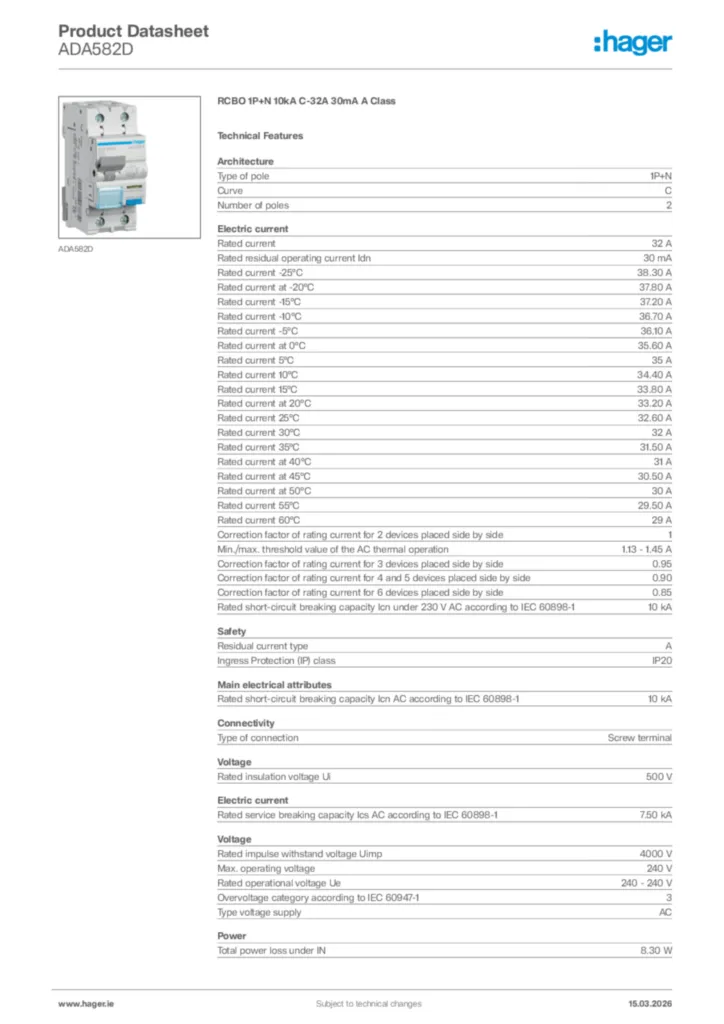

Download the data sheet

Complete your system

Optional accessories

Auxiliaries contact block 2 products available
Shunt release 1 products available
Under voltage coil 1 products available
Modular phase busbar 4 products available
Protective cap/strip for phase busbar 1 products available

Technical properties

Type of pole

1P+N
Curve

C

Residual current type

A
Ingress Protection (IP) class

IP20

Nominal tightening torque down terminal

2.10 - 2.10 Nm
Nominal tightening torque top terminal

2.10 - 2.10 Nm
Nominal tightening torque

2.10 - 2.10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

240 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC

Rated current

32 A
Rated residual operating current Idn

30 mA
Rated current -25°C

38.30 A
Rated current at -20°C

37.80 A
Rated current -15°C

37.20 A
Rated current -10°C

36.70 A
Rated current -5°C

36.10 A
Rated current at 0°C

35.60 A
Rated current 5°C

35 A
Rated current 10°C

34.40 A
Rated current 15°C

33.80 A
Rated current at 20°C

33.20 A
Rated current 25°C

32.60 A
Rated current 30°C

32 A
Rated current 35°C

31.50 A
Rated current at 40°C

31 A
Rated current at 45°C

30.50 A
Rated current at 50°C

30 A
Rated current 55°C

29.50 A
Rated current 60°C

29 A
Correction factor of rating current for 2 devices placed side by side

1
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Total power loss under IN

8.30 W

Frequency

50 - 50 Hz

Max. Altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

For all climates

Electric endurance in number of cycles

2,000
Number of mechanical operations

1,000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
