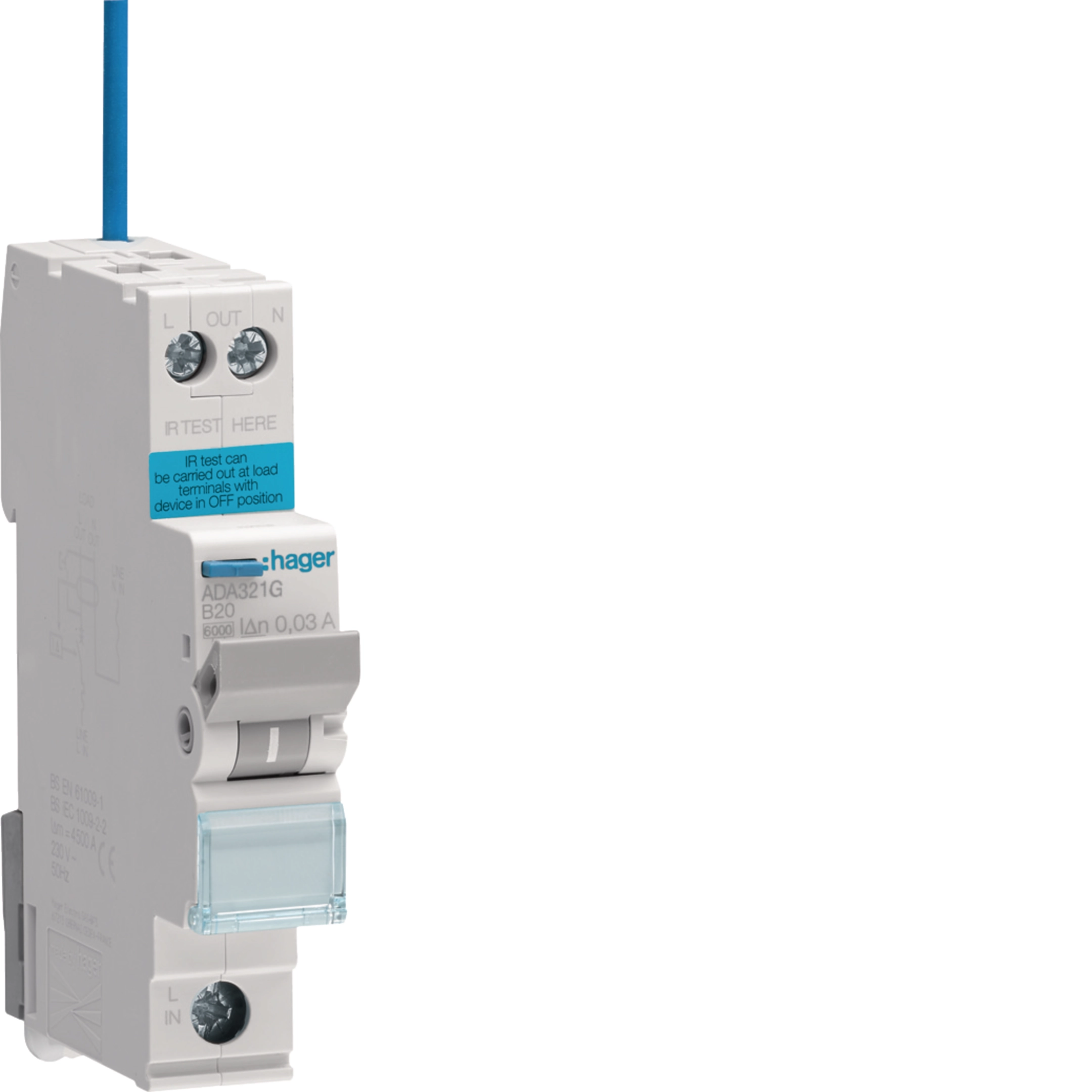

RCBO Electronic 1P 6kA B Curve - 20A, 30mA Type A 1M ADA321G

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Environmental value
Documentations
More products

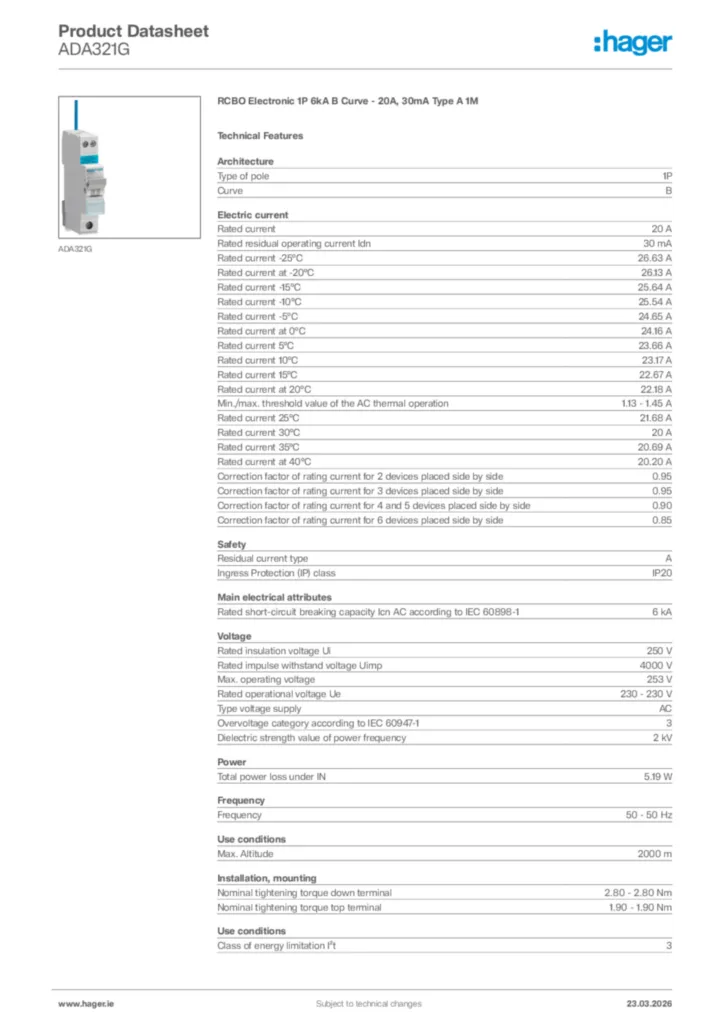

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Technical properties

Type of pole

1P
Curve

B

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

253 V
Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Overvoltage category according to IEC 60947-1

3
Dielectric strength value of power frequency

2 kV

Rated current

20 A
Rated residual operating current Idn

30 mA
Rated current -25°C

26.63 A
Rated current at -20°C

26.13 A
Rated current -15°C

25.64 A
Rated current -10°C

25.54 A
Rated current -5°C

24.65 A
Rated current at 0°C

24.16 A
Rated current 5°C

23.66 A
Rated current 10°C

23.17 A
Rated current 15°C

22.67 A
Rated current at 20°C

22.18 A
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated current 25°C

21.68 A
Rated current 30°C

20 A
Rated current 35°C

20.69 A
Rated current at 40°C

20.20 A
Correction factor of rating current for 2 devices placed side by side

0.95
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85

Total power loss under IN

5.19 W

Frequency

50 - 50 Hz

Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque top terminal

1.90 - 1.90 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-20 - 70 °C
Storage/transport temperature

-25 - 80 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

3

Electric endurance in number of cycles

16,000
Number of mechanical operations

20,000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²

Number of modules

1

Height

92 mm
Width

17.70 mm
Depth

70 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
