    • SPB115
    EAN
    3250615514875
    Packaging
    1 Piece
    • Surge Protec­tion Device (SPD)

    SPD T2 1P pluggable 40kA TNC with indicator + remote contact SPB115

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SPD T2 1P pluggable 40kA TNC with indicator + remote contact

    SPB115

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Modular phase busbar 1 products available

    Complete your system

    • Modular phase busbar
    • KDN380B

      Insulated busbar 3P 80A fork 16mm² 57M
      €0.00  / *

    Technical properties

    Archi­tec­ture
    • Type of pole
      1P
    Capa­city
    • Number of modules
      1
    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 240 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      275 V
    • Voltage protec­tion level Up according to IEC 61643-1
      1.35 kV
    • Rated oper­a­tional voltage AC (signal contact)
      5 - 250 V
    • Rated oper­a­tional voltage DC (signal contact)
      30 - 30 V
    • Type voltage supply
      AC
    • Mode of protec­tion design
      Voltage-lim­iting type
    • Refer­ence test voltage Utest AC
      255 V
    • Over­voltage category according to IEC 60947-1
      3
    • Nominal voltage
      240 - 415 V AC ± 10%
    Elec­tric current
    • Short-­cir­cuit current rating (Isccr)
      25 kA
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      125 A
    • Max. over­cur­rent protec­tion device, series connec­tion (fuse)
      80 A
    • Nominal discharge current In
      20 kA
    • Rated oper­a­tional current AC (signal contact)
      0.005 - 1 A
    • Rated oper­a­tional current DC (signal contact)
      1 - 1 A
    • Max. discharge current (Imax)
      40 kA
    • Residual current Ipe
      ≤ 0.45 mA
    Dimen­sions
    • Height
      96.8 mm
    • Width
      17.60 mm
    • Depth
      65.7 mm
    • Strip­ping length
      16 mm
    • Strip­ping length (signal contact)
      7 mm
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Network config­ur­a­tion
    • Network type
      TN, TN-C, TT
    • Network TN
      Yes
    • Network TN-C
      Yes
    • Network TN-C-S
      No
    • Network TN-S
      No
    • Network TT
      Yes
    • Network IT
      No
    • Network DC
      No
    Equip­ment
    • With remote signalling contact
      Yes
    • Nominal load current IL
      80 A
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1.5 - 25 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1.5 - 35 mm²
    • Number of conductors without earthing
      1
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion flex­ible conductor (signal contact)
      0.14 - 1.5 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    • Cross-sec­tion rigid conductor (signal contact)
      0.14 - 1.5 mm²
    • Connect­or/plug type
      Screw terminal
    • Number of connec­tions
      1
    • Switching contact (signal contact)
      Changeover contact
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3 - 4.5 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Hori­zontal
    • Suit­able for indoor usage
      Yes
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      No
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    • Type of connec­tion (signal contact)
      Plug-in connec­tion, Screw connec­tion
    Func­tions
    • Discon­nector indic­a­tion
      Optical, Remote signalling
    • Suit­able for addi­tional system config­ur­a­tion
      No
    Fuse
    • Fuse char­ac­ter­istics
      gG
    Internal use only
    • Number of half modules of 17,5 mm
      2
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD
    Safety
    • Mode of protec­tion
      L-N, L-PEN
    • Current trip­ping factor k
      1.6
    • TOV beha­viour at UT
      350 V AC (5 s / with­stand mode), 460 V AC (120 min / safe failure mode)
    • Protec­tion class
      Isol­a­tion class II
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Ther­mo­plastic, Poly­amide (PA)

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration SPB115
    PDF
    RoHS report SPB115
    PDF

    Downloads

    • Image SPB115 | Hager

      Product Image SPB115

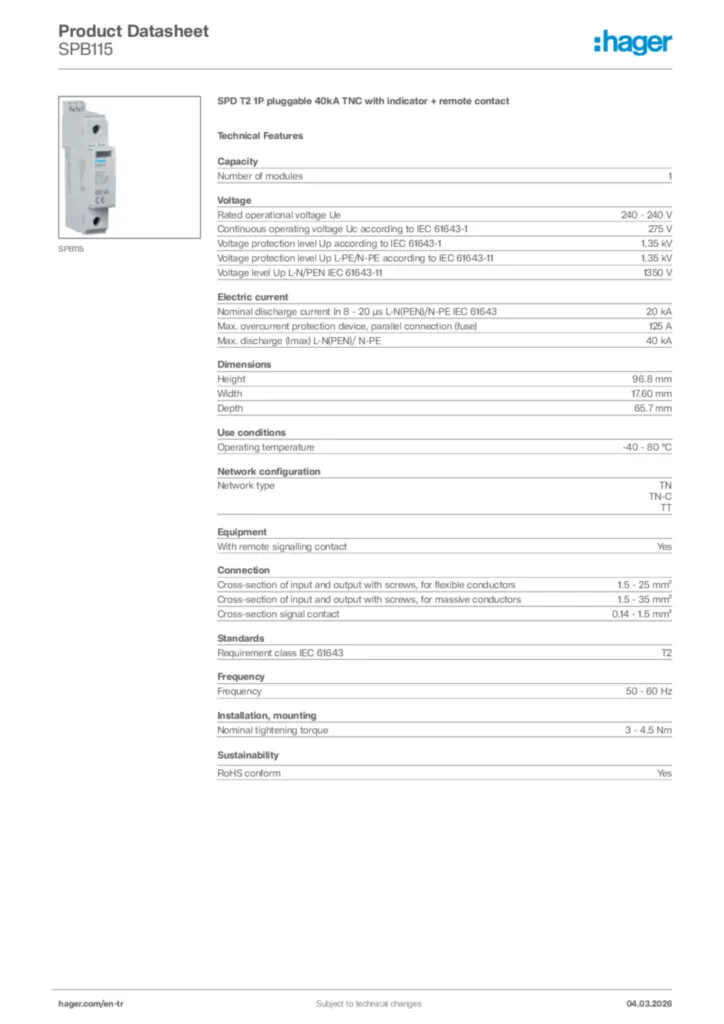

    • Product datasheet

      Image Hager Product data sheet SPB115 | Hager

      Hager Product data sheet SPB115

      SPD T2 1P pluggable 40kA TNC with indicator + remote contact

      PDF

    • Installation manual

      Image Installation manual International 2022-06-14 | Hager

      Installation manual International 2022-06-14

      PDF
      996,26 kB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-15 | Hager

      Declaration of conformity en-US 2026-07-15

      PDF
      333,47 kB
