MCB 2P 10kA C-20A 2M NCN220

EAN

3250614614781

Packaging

6 Pieces

Accessories
Technical properties
Documentations
More products

Download the data sheet

Complete your system

Under voltage coil 2 products available
Shunt release 2 products available
Auxiliaries contact block 2 products available

Technical properties

Rated current

20 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

30 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

15 kA
Rated current -25°C

25.08 A
Rated current at -20°C

24.66 A
Rated current -15°C

24.24 A
Rated current -10°C

23.80 A
Rated current -5°C

23.36 A
Rated current at 0°C

22.91 A
Rated current 5°C

22.45 A
Rated current 10°C

21.98 A
Rated current 15°C

21.51 A
Rated current at 20°C

21.02 A
Rated current 25°C

20.51 A
Rated current 30°C

20 A
Rated current 35°C

19.47 A
Rated current at 40°C

18.93 A
Rated current at 45°C

18.37 A
Rated current at 50°C

17.80 A
Rated current 55°C

17.20 A
Rated current 60°C

16.58 A
Rated current 65°C

15.94 A
Rated current 70°C

15.28 A

Type of pole

2P
Curve

C

Number of modules

2

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6,000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

5.29 W

Electric endurance in number of cycles

4,000
Number of mechanical operations

20,000

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm

Downloads

Product Image NCN220
Product datasheet

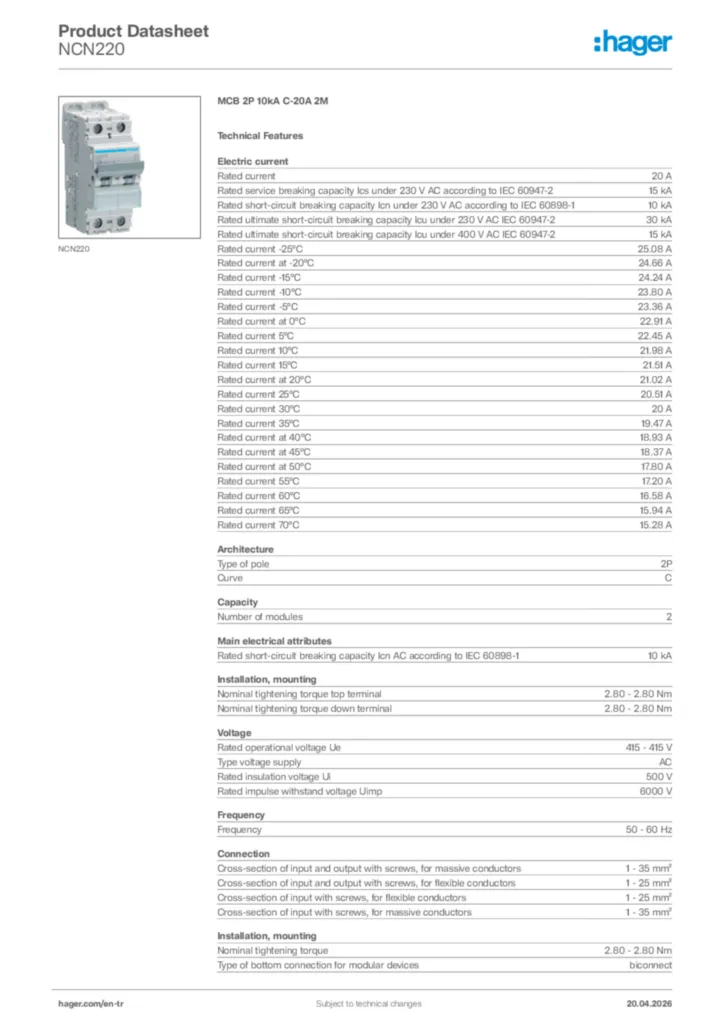

Hager Product data sheet NCN220
