Auxiliary contact 1C+1O 6A 240V AC MZ201
EAN
3250614562013
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 180 products available
Referenced by
-
MBN140MCB 1P 6kA B-40A 1M
-
NCN302MCB 3P 10kA C-2A 3M
-
MCN310MCB 3P 6kA C-10A 3M
-
NCN440MCB 4P 10kA C-40A 4M
-
NCN416MCB 4P 10kA C-16A 4M
-
NCN406MCB 4P 10kA C-6A 4M
-
NCN402MCB 4P 10kA C-2A 4M
-
MBN463MCB 4P 6kA B-63A 4M
-
MBN363MCB 3P 6kA B-63A 3M
-
MCN263MCB 2P 6kA C-63A 2M
-
MBN450MCB 4P 6kA B-50A 4M
-
MCN250MCB 2P 6kA C-50A 2M
-
MCN440MCB 4P 6kA C-40A 4M
-
MBN440MCB 4P 6kA B-40A 4M
-
MCN340MCB 3P 6kA C-40A 3M
-
MBN340MCB 3P 6kA B-40A 3M
-
MCN240MCB 2P 6kA C-40A 2M
-
MBN240MCB 2P 6kA B-40A 2M
-
MCN140MCB 1P 6kA C-40A 1M
-
MCN325MCB 3P 6kA C-25A 3M
Technical properties
Electric current
-
Rated current6 A
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeClick mounting
Capacity
-
Number of modules0.50
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor6 mm²
-
Cross-section rigid conductor10 mm²
Voltage
-
Rated insulation voltage Ui4,000 V
-
Type voltage supplyAC
Endurance
-
Number of mechanical operations12,000
-
Electric endurance in number of cycles6,000
Use conditions
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 80 °C
Power
-
Total power loss under IN0.10 W
Dimensions
-
Height80 mm
-
Width9.50 mm
-
Depth40 mm
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

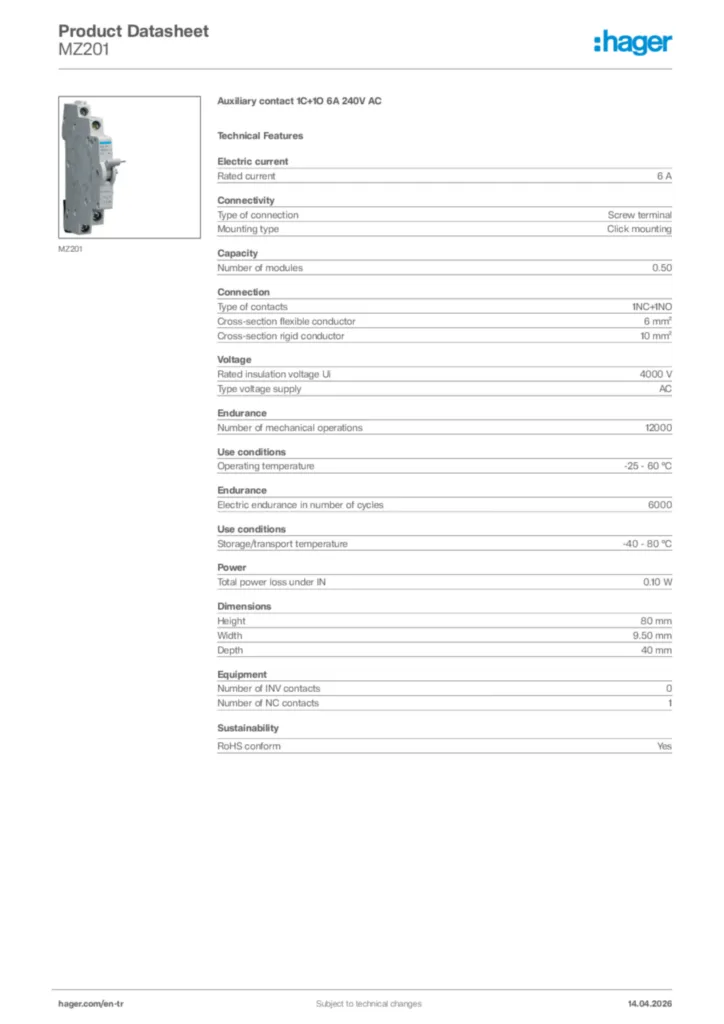

Hager Product data sheet MZ201
