Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 160A 40kA CTC HNA160U

Accessories
Technical properties
Environmental value
Documentations
More products

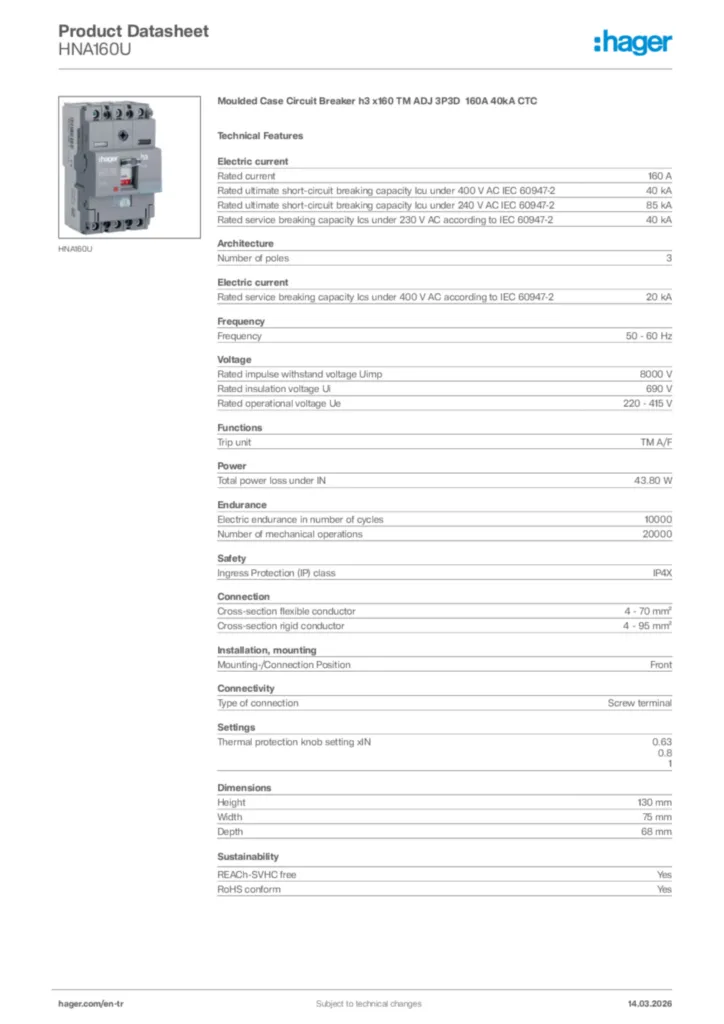

Download the data sheet

Complete your system

Under voltage coil 1 products available

Technical properties

Rated current

160 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

40 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

40 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

20 kA

Number of poles

3

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

690 V
Rated operational voltage Ue

220 - 415 V

Trip unit

TM A/F

Total power loss under IN

43.80 W

Electric endurance in number of cycles

10,000
Number of mechanical operations

20,000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

4 - 70 mm²
Cross-section rigid conductor

4 - 95 mm²

Mounting-/Connection Position

Front

Type of connection

Screw terminal

Thermal protection knob setting xIN

0.63, 0.8, 1

Height

130 mm
Width

75 mm
Depth

68 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
