Switch h1000 3P 800A HCE800H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Motor operator 1 products available
Technical properties
Electric current
-
Rated current800 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor2x 240 mm²
-
Cross-section flexible conductor2x 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In49.60 W
-
Total power loss under IN148.80 W
-
Rated operational power under 400 V AC AC1526,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

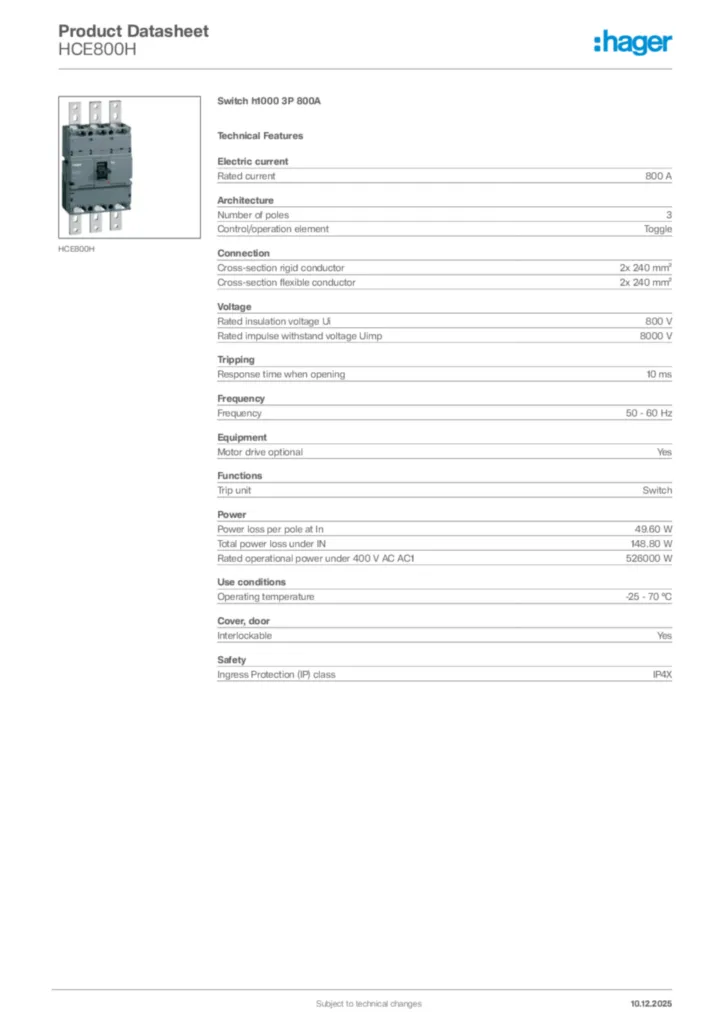

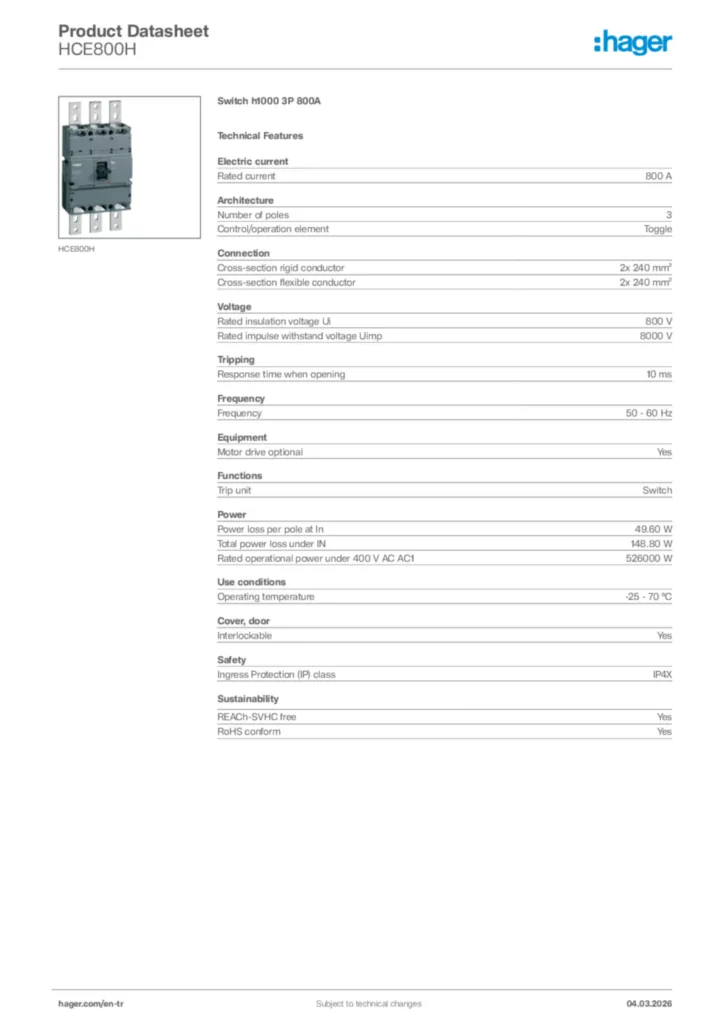

Hager Product data sheet HCE800H
Switch h1000 3P 800A
PDF -
Installation manual
Installation manual International 2021-06-16
PDF7,89 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-27
PDF330,83 kB
Declaration
Declaration of conformity International 2022-06-21
PDF316,45 kB
