Switch h630 4P 630A HCD631H
EAN
3250613363154
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Motor operator 1 products available -
Locking interlocking functions 1 products available
Complete your system
Technical properties
Electric current
-
Rated current630 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor35 - 240 mm²
-
Cross-section flexible conductor35 - 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In50 W
-
Total power loss under IN150 W
-
Rated operational power under 400 V AC AC1414,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-
Product datasheet

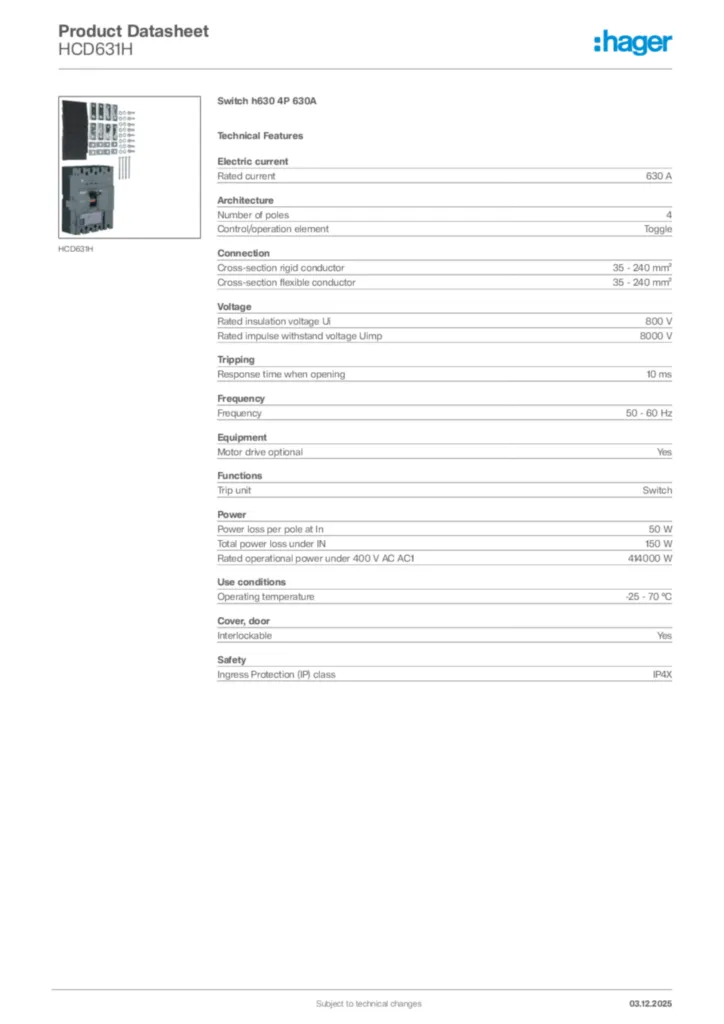

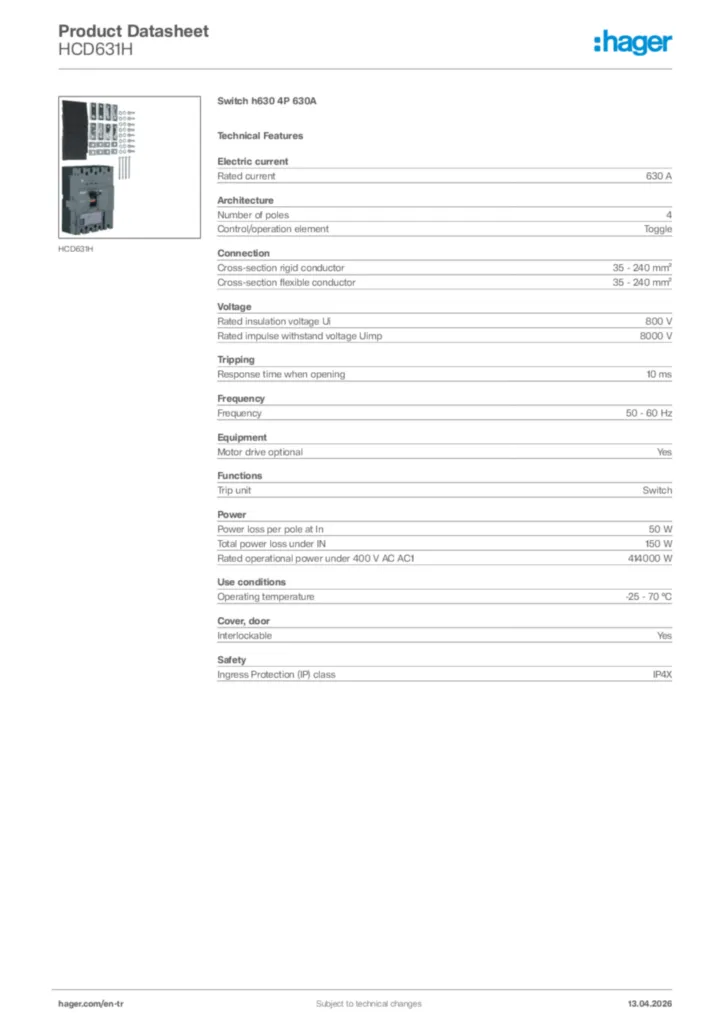

Hager Product data sheet HCD631H
