Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution FD72DN

EAN
3250612548316
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution

FD72DN

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Door/­op­er­ating panel 2 products available
  • Cover for distri­bu­tion board 2 products available
  • Mounting plate for distri­bu­tion board 3 products available

Complete your system

  • Door/­op­er­ating panel
  • Cover for distri­bu­tion board
  • Mounting plate for distri­bu­tion board
  • FD72TN

    Glazed door, NewVegaD, 1150x500mm, for 7-rows enclosure
    0.00 €  / *
  • FD72PN

    Plain door, NewVegaD, 1150x500mm, for 7-rows enclosure
    0.00 €  / *
  • FD00C3

    Cover, NewVegaD, 300x500mm, plain+slotted
    0.00 €  / *
  • FD00C2

    Cover, NewVegaD, 300x500mm, plain
    0.00 €  / *
  • FD00M2

    Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
    0.00 €  / *
  • FD00M3

    Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
    0.00 €  / *
  • FD00M1

    Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
    0.00 €  / *

Technical properties

Connec­tion
  • Number of conduit inlets
    4
Voltage
  • Nominal voltage
    230 - 400 V
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    160 A
Equip­ment
  • Number of rails
    7
  • Number of rows
    7
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    168
Dimen­sions
  • Height
    1,200 mm
  • Width
    550 mm
  • Depth
    193 mm
  • Number of width units
    24
Cover, door
  • Number of cabinet doors
    0
  • Number of locks
    0
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Metal, Plastic
  • RAL code
    9010
  • Colour
    Pure white
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Without lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Encl., NewVegaD, 900x550x193mm, 120 mod.
PDF
472,28 kB
Hager REACH declaration FD72DN
PDF
Hager RoHS report FD72DN
PDF

Downloads

  • Image FD72DN | Hager

    Product Image FD72DN

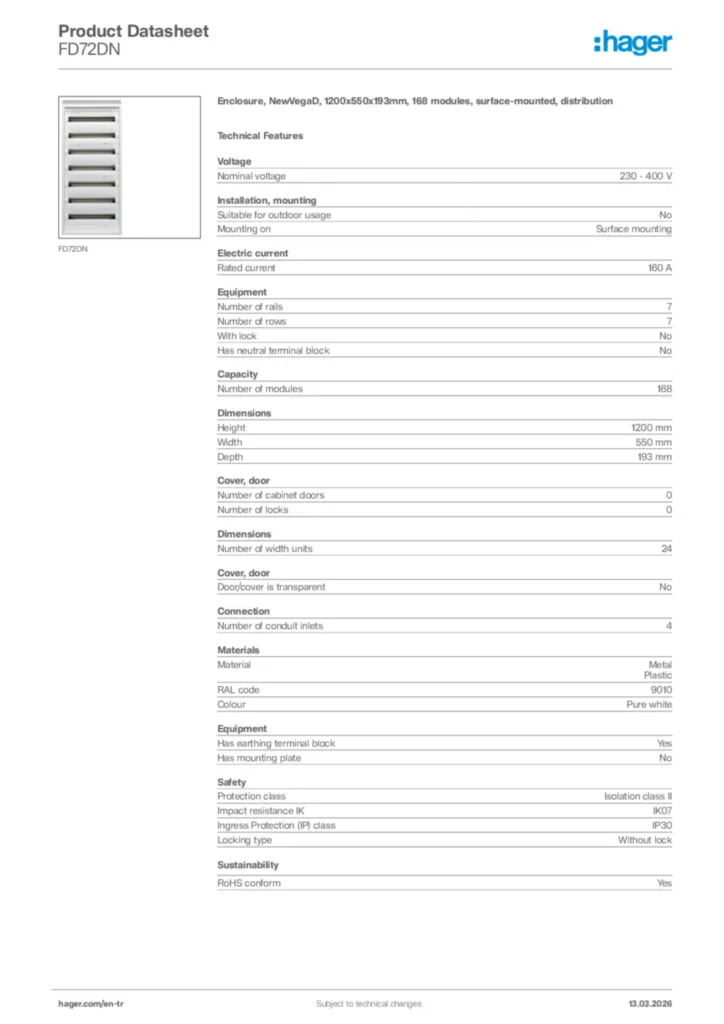

  • Product datasheet

    Image Hager Product data sheet FD72DN | Hager

    Hager Product data sheet FD72DN

    Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution

    PDF

  • Installation manual

    Image Installation manual International 2014-03-24 | Hager

    Installation manual International 2014-03-24

    PDF
    7,44 MB

  • Handbook

    Image Handbook en-GB 2022-10-10 | Hager

    Handbook en-GB 2022-10-10

    PDF
    24,05 MB
    Image Handbook en-GB 2023-07-07 | Hager

    Handbook en-GB 2023-07-07

    PDF
    11,76 MB
    Image Handbook fr-FR 2023-09-11 | Hager

    Handbook fr-FR 2023-09-11

    PDF
    11,49 MB
    Image Handbook fr-FR 2023-09-28 | Hager

    Handbook fr-FR 2023-09-28

    PDF
    10,54 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-10-11

    PDF
    190,72 kB
