    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 160 A and multi­media boards
    • vega D
    • FD62DN
    EAN
    3250612548309
    Packaging
    1 Piece
    • vega D

    Enclosure, NewVegaD, 1050x550x193mm, 144 modules, surface-mounted, distribution FD62DN

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosure, NewVegaD, 1050x550x193mm, 144 modules, surface-mounted, distribution

    FD62DN

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Door/­op­er­ating panel 2 products available
    • Cover for distri­bu­tion board 2 products available
    • Mounting plate for distri­bu­tion board 3 products available

    Complete your system

    • Door/­op­er­ating panel
    • Cover for distri­bu­tion board
    • Mounting plate for distri­bu­tion board
    • FD62TN

      Glazed door, NewVegaD, 1000x500mm, for 6-rows enclosure
      0.00 €  / *
    • FD62PN

      Plain door, NewVegaD, 1000x500mm, for 6-rows enclosure
      0.00 €  / *
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted
      0.00 €  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain
      0.00 €  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
      0.00 €  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
      0.00 €  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Voltage
    • Nominal voltage
      230 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      160 A
    Equip­ment
    • Number of rails
      6
    • Number of rows
      6
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      144
    Dimen­sions
    • Height
      1,050 mm
    • Width
      550 mm
    • Depth
      193 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      0
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Metal, Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl., NewVegaD, 900x550x193mm, 120 mod.
    PDF
    472,28 kB
    REACH declaration FD62DN
    PDF
    Hager RoHS report FD62DN
    PDF

    Downloads

    • Image FD62DN | Hager

      Product Image FD62DN

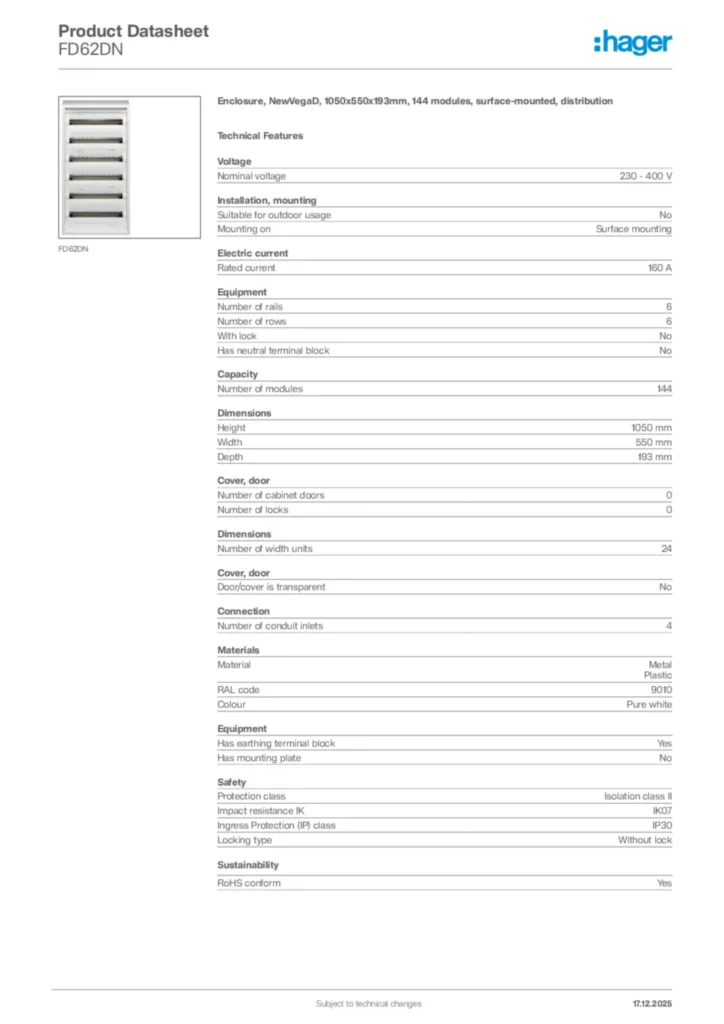

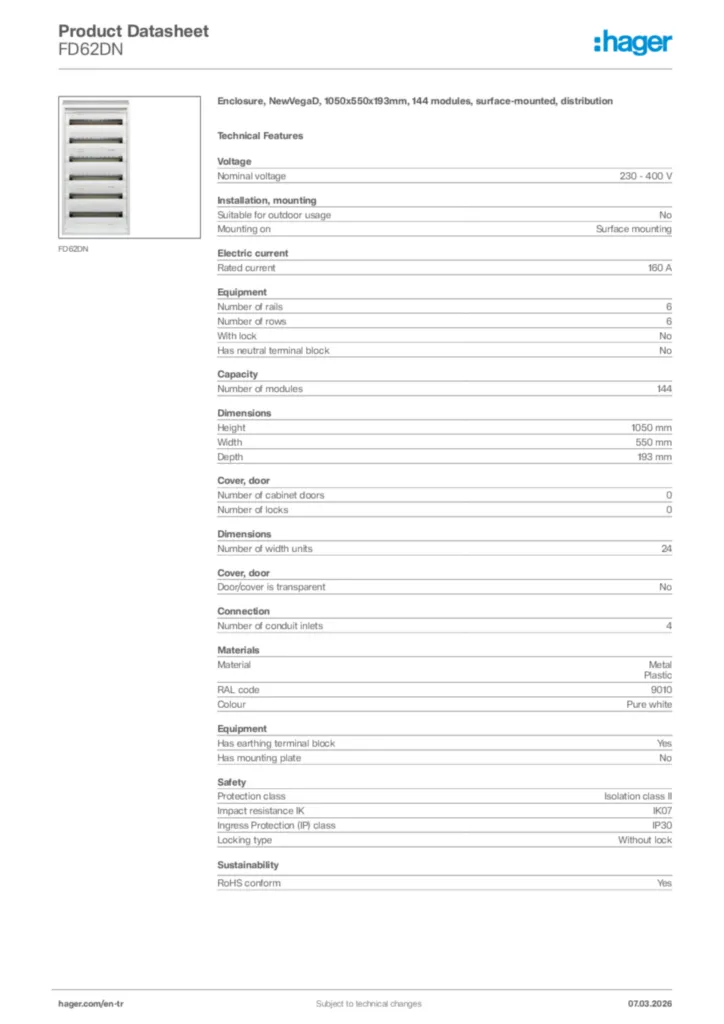

    • Product datasheet

      Image Hager Product data sheet FD62DN | Hager

      Hager Product data sheet FD62DN

      Enclosure, NewVegaD, 1050x550x193mm, 144 modules, surface-mounted, distribution

      PDF

    • Installation manual

      Image Installation manual International 2014-03-24 | Hager

      Installation manual International 2014-03-24

      PDF
      7,44 MB

    • Handbook

      Image Handbook en-GB 2022-10-10 | Hager

      Handbook en-GB 2022-10-10

      PDF
      24,05 MB
      Image Handbook en-GB 2023-07-07 | Hager

      Handbook en-GB 2023-07-07

      PDF
      11,76 MB
      Image Handbook fr-FR 2023-09-11 | Hager

      Handbook fr-FR 2023-09-11

      PDF
      11,49 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
    More documentation

    Spare part

    See more

    Discover more of this product range

      5
    • 1
      FU72AN - Enclosure, NewVegaD, 1287x550x182mm, 168 modules, flush-mounted, to complete
      FU72AN
      Enclosure, NewVegaD, 1287x550x182mm, 168 modules, flush-mounted, to complete
    • 2
      FD72PN - Plain door, NewVegaD, 1150x500mm, for 7-rows enclosure
      FD72PN
      Plain door, NewVegaD, 1150x500mm, for 7-rows enclosure
    • 3
      FD72TN - Glazed door, NewVegaD, 1150x500mm, for 7-rows enclosure
      FD72TN
      Glazed door, NewVegaD, 1150x500mm, for 7-rows enclosure
    • 4
      FU72DN - Enclosure, NewVegaD, 1287x550x150mm, 168 modules, flush-mounted, distribution
      FU72DN
      Enclosure, NewVegaD, 1287x550x150mm, 168 modules, flush-mounted, distribution
    • 5
      FD72DN - Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution
      FD72DN
      Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution
