EAN

3250612339921

Packaging

1 Piece

Time switches and relays

Multifunction stair case time lag switch EMS005

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Rated operational voltage Ue

230 - 230 V

Frequency

50 - 60 Hz

Rated current

16 A

Number of modules

1

Type of connection

quickconnect, Wire connection

Mounting on

DIN rail

Max. load fluorescent lamp parallel compensated

1,000 VA
Max. load fluorescent lamp

3,600 VA

Operating temperature

-10 - 55 °C

Cross-section flexible conductor

1.5 - 2.5 mm²
Cross-section rigid conductor

1.5 - 2.5 mm²

Time delay

30 S - 10 Min

Width

17.50 mm
Depth

64 mm

230 V incandescent and halogen lamp

2,300 W

Junction

For 3 and 4-conductor circuit (automatic detection)
Switch mode

NO contact
Installation mode

For mounting on DIN rail
Type of connection

With quickconnect plug-in terminals
Function

With switch-off advance warning: Flashing at 40, 30 seconds before switching off, With potentiometer for setting time functions: automatic/automatic With switch-off advance warning/automatic with selectable long time operation (1 h)/automatic With selectable long time operation (1 h) and switch-off advance warning

Downloads

Product Image EMS005
Product datasheet

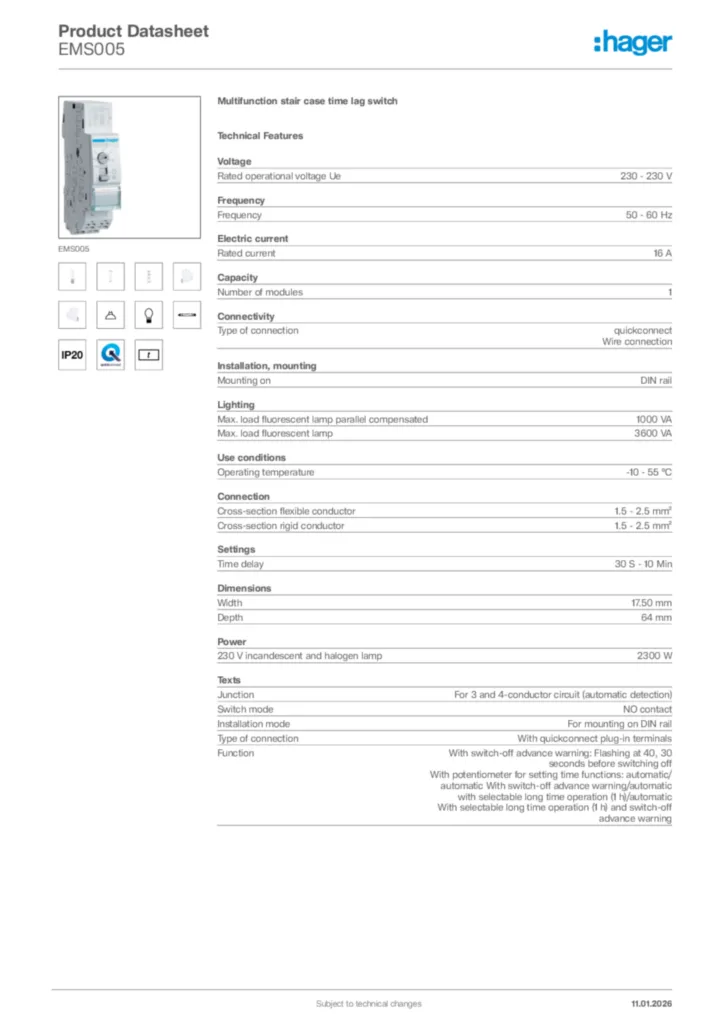

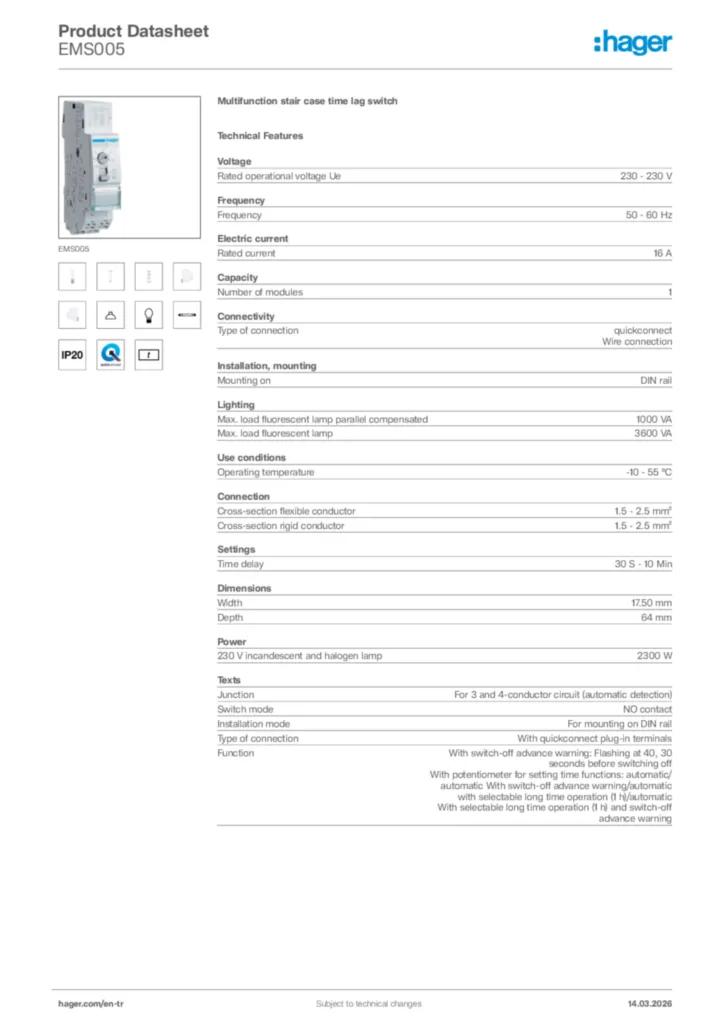

Hager Product data sheet EMS005
