Integro Insert - Socket Outlet 12V, Anthracite Matt 945172505

EAN

4011334241034

Packaging

10 Pieces

Accessories
Technical properties
Documentations
More products

Download the data sheet

Complete your system

4637

Plug 12 V, integ. Module inserts, black matt

Box for built-in mounting in the wall/ceiling 9 products available

Technical properties

Rated current

16 A

Rated voltage

12 V
Nominal voltage

24 - 24 V

Colour

Anthracite
RAL code

7021
Surface finish

Matt
Material

Thermoplastic
Treatment

Untreated

Height

55.50 mm
Number of units

1
Built-in depth

30 mm

Connector/plug type

Ring lug

Type of connection

Screw terminal
Mounting type

Built in installation, Screw mounting

Rotated central insert

No
With hinged lid

No
With signal lamp

No
With lock

No

Has labelling field

No

Number of modules

1

With enhanced contact protection

No
Impact resistance IK

IK05
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

Downloads

Product Image 945172505
Product datasheet

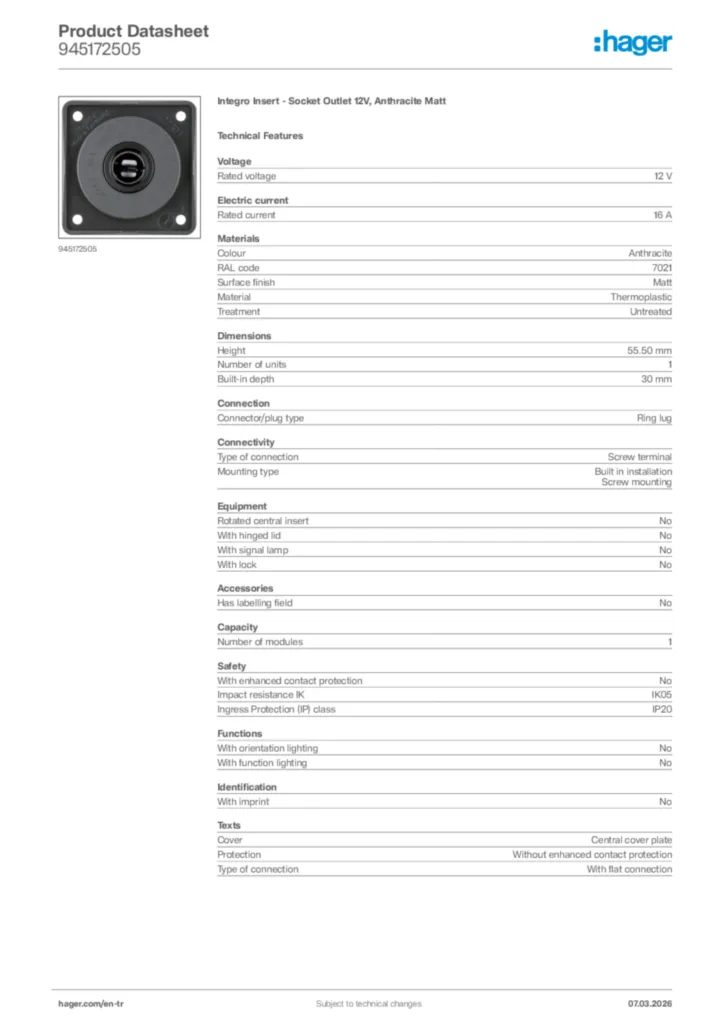

Hager Product data sheet 945172505
