Universal touch dimmer 1gang, electronics 85421200
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (78)
Compatible products
-
Referenced by 340 products available
Accessories mandatory
-
85342282IR motion detector comfort 2.2 m, S.1, white glossy
-
85342289IR motion detector comfort 2.2 m, S.1/B.3/B.7, polar white, glossy
-
85141173Button 1gang, K.5, stainless steel matt, lacq.
-
85342226IR motion det. comf 2.2 m, Q.x, ant. velvety, lacq.
-
85342279IR motion detector comfort 2.2 m, K.1, polar white glossy
-
85342229IR motion det. comf 2.2 m, Q.x, p. white velvety
-
85342231IR motion detector comfort 2.2 m, R.1/R.3/1930/R.classic, black glossy
-
85342239IR motion detector comfort 2.2 m, R.1/R.3/1930/R.classic, polar white glossy
-
85141183Button 1gang, S.1/B.7, al., matt, lacq.
-
85141185Button 1gang, S.1/B.3/B.7, ant. matt, lacq.
-
85342275IR motion detector comfort 2.2 m, K.1, anthracite matt, lacquered
-
85342277IR motion det. comf 2.2 m, K.5, al., matt, lacq.
-
85342273IR motion detector comfort 2.2 m, K.5, stainless steel matt, lacquered
-
85141182Button 1gang, S.1, white glossy
-
85141189Button 1gang, S.1/B.3/B.7, p. white glossy
-
85141129Button 1gang, Q.x, p. white velvety
-
85141126Button 1gang, Q.x, ant. velvety, lacq.
-
85141179Button 1gang, K.1, p. white glossy
-
85141175Button 1gang, K.1, ant. matt, lacq.
-
85141177Button 1gang, K.5, al., matt, lacq.
Referenced by
-
10128982Frame 2gang, S.1, white glossy
-
10136096Frame 3gang, Q.3, ant. velvety, lacq.
-
85341282IR motion detector comfort 1.1 m, S.1, white glossy
-
85341283IR motion detector comfort 1.1 m, B.7, aluminium matt, lacquered
-
85341285IR motion detector comfort 1.1 m, S.1/B.3/B.7, anthracite matt
-
85341288IR motion detector comfort 1.1 m, S.1/B.3/B.7, polar white matt
-
13096089Frame l. cut-out, Q.1, p. white velvety
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10128989Frame 2gang, S.1, p. white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10139909Frame 3gang, S.1, p. white, matt, plastic
-
10148982Frame 4gang, S.1, white glossy
-
10148989Frame 4gang, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
Technical properties
Voltage
-
Operating voltage230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
MaterialMetal, Plastic
Dimensions
-
Built-in depth32 mm
-
Height71 mm
-
Width71 mm
-
Depth33.20 mm
Architecture
-
Control/operation elementSingle push button
Power
-
Power consumption standby0.30 W
Lighting
-
Dimmable 230 V LED lamp5 - 70 W
Use conditions
-
Operating temperature-5 - 45 °C
Texts
-
Dimming principleAutomatic setting of load-dependent switching principle (autodetect process), Phase cut-on or cut-off according to load type, self-learning
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Installation modeWith spreader claws
-
Type of connectionWith screw terminals
-
Extension unit inputWith extension unit input for push-button (NO contact), single-surface operation and motion detector extension unit
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

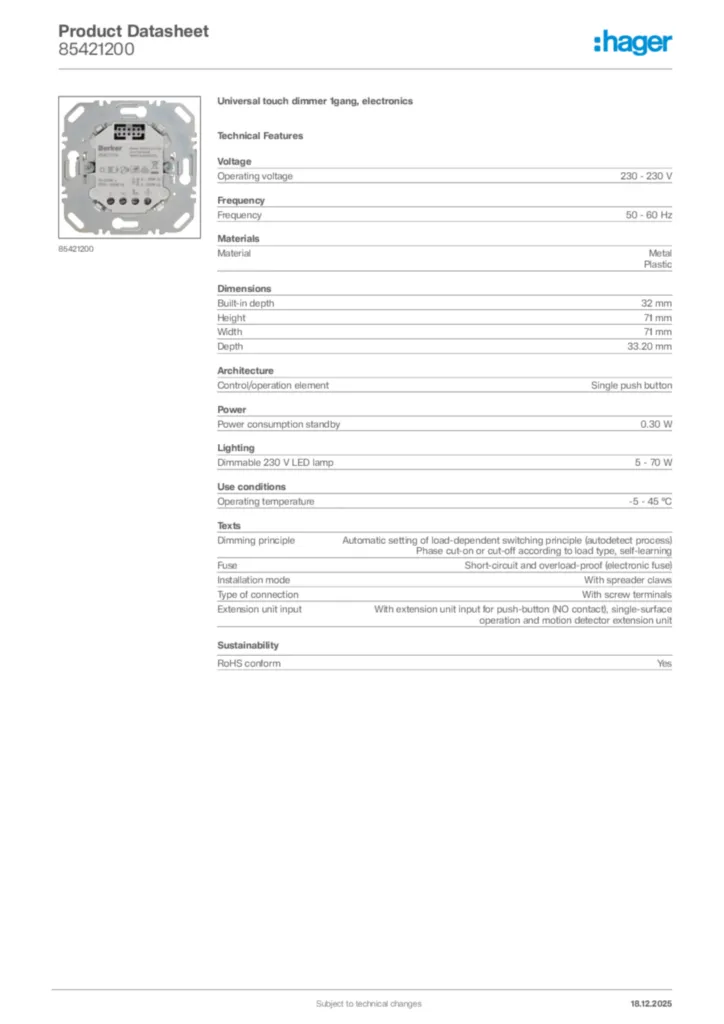

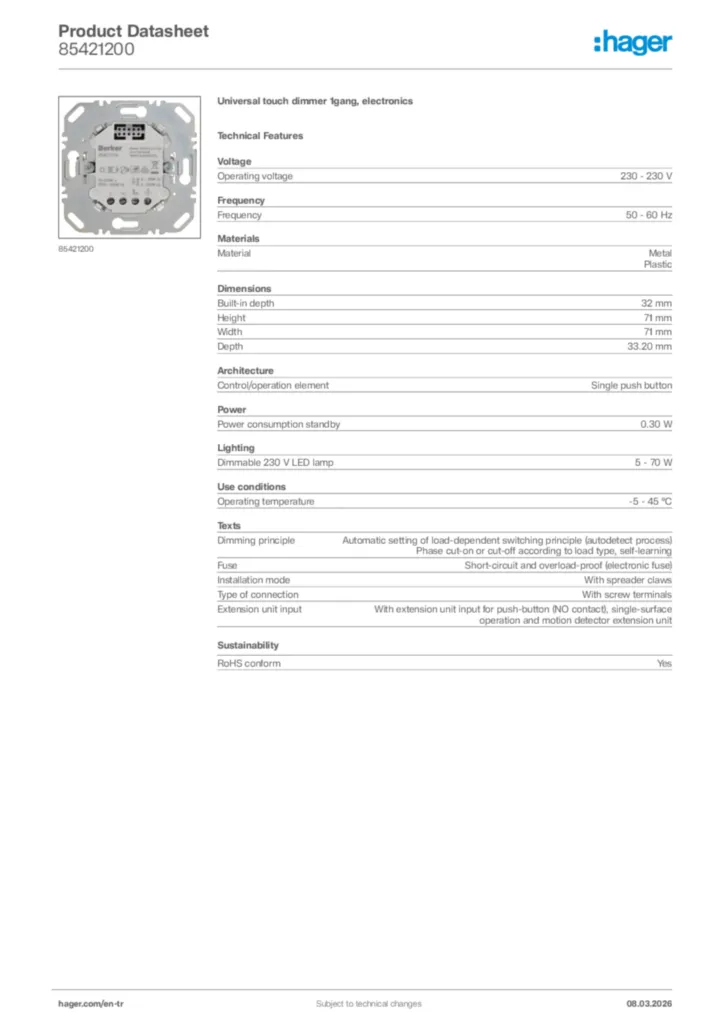

Product datasheet
Hager Product data sheet 85421200
Universal touch dimmer 1gang, electronics
PDF -
Installation manual
Manual for 85421100, 85421200 and 85422100 - Touch dimmer (R, L) and Universal touch dimmer 1-/2gang (EN-FR, 2017-11)
Installation manual en-GB, fr-FR 2012-04-03
PDF1,78 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-09-17
PDF292,67 kB
Declaration of Conformity
Declaration of conformity International 2021-09-17
PDF296,97 kB
Declaration of conformity en-GB, de-DE 2021-11-18
PDF272,57 kB
