Motion det. 2.2 m, K.1, ant. matt, lacq. 85342175
EAN
4011334374176
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 43 products available
Referenced by
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13537003Frame 5gang vert., K.5, al., al. anodised
-
13437003Frame 4gang vert., K.5, al., al. anodised
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
85421200Universal touch dimmer 1gang, electronics
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13337003Frame 3gang vert., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13737003Frame 3gang hor., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
Technical properties
Dimensions
-
Installation height2.20 - 2.20 m
-
Assembling height34 mm
Detection
-
Type of sensorMovement detector
-
Detection diameter on floor0 - 0 m
-
Detection angle adjustable45 - 90 °
Materials
-
ColourAnthracite
-
Surface finishMatt
-
TreatmentVarnished
-
MaterialThermoplastic
Reach distance
-
Max. transmission range frontally8 m
-
Max. transmission range sideways6 m
Lighting
-
Response brightness adjustable5 - 1,000 lx
Settings
-
Response brightness adjustableYes
Use conditions
-
Operating temperature-5 - 45 °C
Safety
-
Ingress Protection (IP) classIP20
Texts
-
FunctionWith memory function for presence simulation, Teach function for response brightness via button, With keylock, Party function for switching on for 2 hours
-
ProtectionWith dismantling protection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

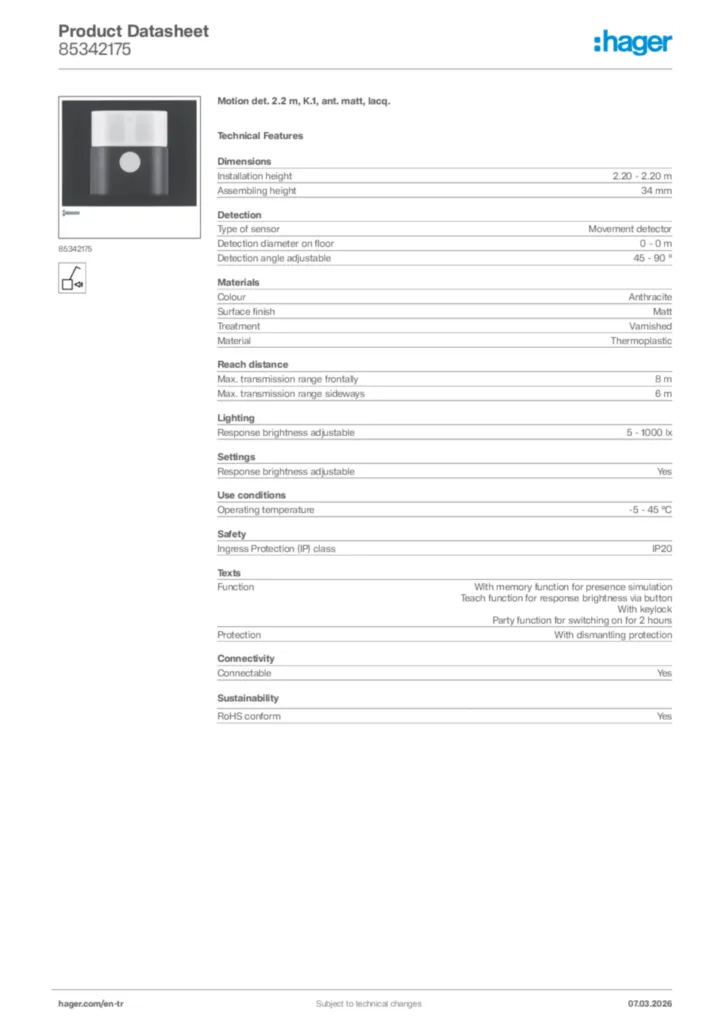

Product datasheet
Hager Product data sheet 85342175
Motion det. 2.2 m, K.1, ant. matt, lacq.
PDF -
Installation manual
Manual for 8534xx - Motion detector (EN, 2022-04)
Installation manual en-GB 2022-04-28
PDF751,25 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,01 MB
Declaration of Conformity
Declaration of conformity International 2021-02-15
PDF1,01 MB
More documentation
