    S.x KNX (TP+EASY) Movement detector module 2,20m 80262280

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    S.x KNX (TP+EASY) Movement detector module 2,20m

    80262280

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Dimen­sions
    • Recom­mended install­a­tion height
      2.20 - 2.20 m
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    • Minimal duty cycle
      10 s
    Func­tions
    • Maximal duty cycle
      30 min
    Connectivity
    • With bus system KNX radio
      No
    Voltage
    • Oper­ating voltage over bus
      21 - 32 V
    Scope of delivery
    • Bus connec­tion included
      Yes
    Elec­tric current
    • Bus current consump­tion data transfer
      10 mA
    Lighting
    • Response bright­ness adjustable
      5 - 1,000 lx
    Detec­tion
    • Detec­tion angle adjustable
      45 - 90 °
    • Detec­tion angle hori­zontal
      90 - 180
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Mater­ials
    • Material
      Metal, Plastic
    Texts
    • Push button
      With button for auto­mat­ic/per­manent ON/per­manent OFF
    • Oper­ating mode
      With 3 oper­ating modes: auto­mat­ic/per­manent ON/per­manent OFF
    • Func­tion
      Pres­ence simu­la­tion, With party func­tion
    • Install­a­tion mode
      With spreader claws, With dismant­ling protec­tion

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration 80262280
    PDF
    Hager RoHS report 80262280
    PDF

    Downloads

    • Image 80262280 | Hager

      Product Image 80262280

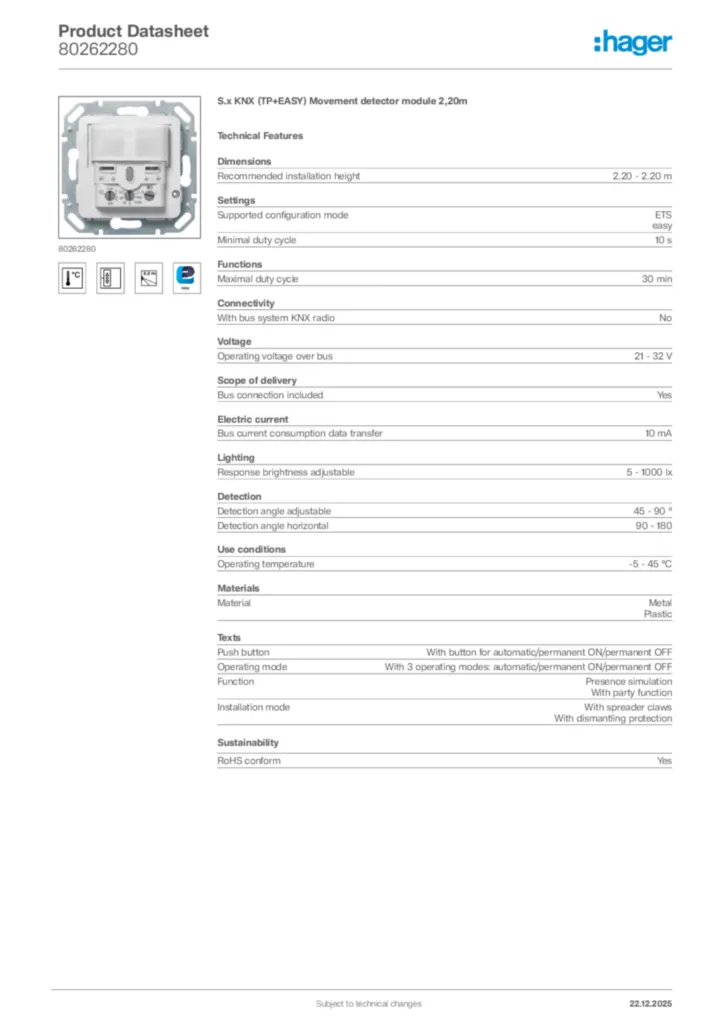

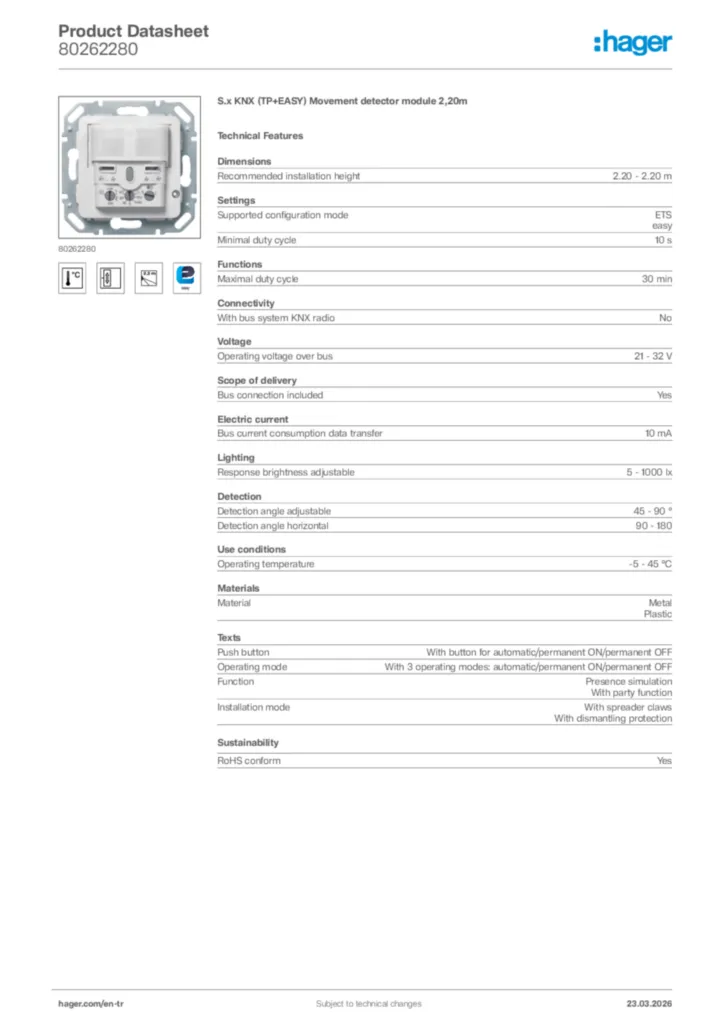

    • Product datasheet

      Image Hager Product data sheet 80262280 | Hager

      Hager Product data sheet 80262280

      S.x KNX (TP+EASY) Movement detector module 2,20m

      PDF

    • Installation manual

      Image Installation manual en-GB, tr-TR 2021-10-04 | Hager

      Installation manual en-GB, tr-TR 2021-10-04

      PDF
      1,28 MB

    • KNX product database

      Image ETS4-ETS5 (vers. 1.1) - KNX Database for KNX Motion detector with BCU | Hager

      ETS4-ETS5 (vers. 1.1) - KNX Database for KNX Motion detector with BCU

      KNX product database International 2020-01-01

      KNXPROD
      254,40 kB
      Image ETS Database for 80262xxx | Hager

      ETS Database for 80262xxx

      KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2023-08-25

      KNXPROD
      254,40 kB

    • Application Guide

      Image Application description ETS for 802621xx-802622xx - Motion detector with bus coupling unit (EN, 2016-08), easy link | Hager

      Application description ETS for 802621xx-802622xx - Motion detector with bus coupling unit (EN, 2016-08), easy link

      Application Guide en-GB, pl-PL 2016-08-04

      PDF
      2,34 MB
      Image Application description ETS for KNX Motion detector (EN, 2016-02) | Hager

      Application description ETS for KNX Motion detector (EN, 2016-02)

      Application Guide International 2016-02-09

      PDF
      2,90 MB
      Image Application description ETS for KNX Motion detector (TR, 2016-02) | Hager

      Application description ETS for KNX Motion detector (TR, 2016-02)

      Application Guide tr-TR 2016-02-19

      PDF
      4,39 MB

    • Declaration of conformity

      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-07-30

      PDF
      257,09 kB
