Push-button 1gang, + RGB LED, internal temp. sensor, KNX - K.1, ant. 80161776
EAN
3250617153492
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
80040001
Bus coupling unit flush-mtd, ext. temp. sensor, KNX
Compatible products
-
Referenced by 19 products available
Referenced by
-
13437009Frame 4gang vert., K.1, p. white glossy
-
80040001
Bus coupling unit flush-mtd, ext. temp. sensor, KNX
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
-
13637006Frame 2gang hor., K.1, ant. matt, lacq.
-
13537009Frame 5gang vert., K.1, p. white glossy
-
13337009Frame 3gang vert., K.1, p. white glossy
-
13937009Frame 5gang hor., K.1, p. white glossy
-
13837009Frame 4gang hor., K.1, p. white glossy
-
13737009Frame 3gang hor., K.1, p. white glossy
-
13237006Frame 2gang vert., K.1, ant. matt, lacq.
-
13137006Frame 1gang, K.1, ant. matt, lacq.
-
13237009Frame 2gang vert., K.1, p. white glossy
-
13137009Frame 1gang, K.1, p. white glossy
-
13637009Frame 2gang hor., K.1, p. white glossy
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerYes
Dimensions
-
Height55.10 mm
-
Width70.90 mm
-
Depth14.35 mm
Equipment
-
Number of actuation points2
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAnthracite
-
RAL code7021
-
MaterialThermoplastic
-
Surface finishGlossy, Matt
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object, Integrated temperature sensor for operation as controller extension unit
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

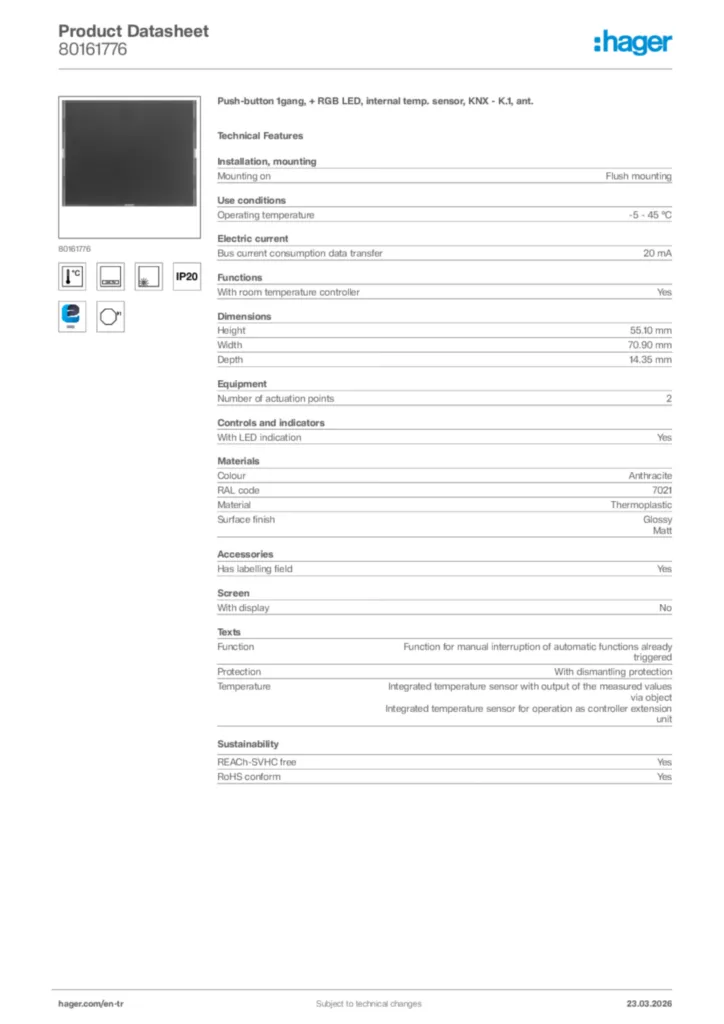

Product datasheet
