Push-button module 2gang, intg temp. sensor, intg bus coupling unit, KNX - K.1 80142170
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (6)
Compatible products
-
Referenced by 65 products available
Accessories mandatory
-
80960329Cover for 2gang for push-button module, clearlenses, Q.x, p. white velvety
-
80960326Cover f. 2gang f. push-button module, clearlenses, Q.x, ant. velvety, lacq.
-
80960379Cover for 2gang for push-button module, clearlenses, K.1, p. white glossy
-
80960375Cover for 2gang for push-button module, clearlenses, K.1, ant., matt
-
80960371Cover for 2gang for push-button module, clearlenses, K.5, al., matt, lacq.
-
80960373Cover f. 2gang f. push-button module, clearlens, K.5, stainl. steel matt, lacq.
Referenced by
-
10526099Frame 2gang vert., lab. field, Q.3, p. white velvety
-
10116045Contrast frame, 1gang Q.1 anthracite, velvety
-
10136084Frame 3gang Q.1 alu velvety, lacquered
-
10126084Frame 2gang Q.1 alu velvety, lacquered
-
10536094Frame 3gang with labelling field vertical Q.3 alu velvety, lacquered
-
10526094Frame 2gang with labelling field vertical Q.3 alu velvety, lacquered
-
10236094Frame 3gang with labelling field horizontal Q.3 alu velvety, lacquered
-
10226094Frame 2gang with labelling field horizontal Q.3 alu velvety, lacquered
-
10516094Frame 1gang with labelling field Q.3 alu velvety, lacquered
-
10536099Frame 3gang vert., lab. field, Q.3, p. white velvety
-
10116089Frame 1gang, Q.1, p. white velvety
-
10236099Frame 3gang hor., lab. field, Q.3, p. white velvety
-
10226099Frame 2gang hor., lab. field, Q.3, p. white velvety
-
10516099Frame 1gang, lab. field, Q.3, p. white velvety
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer10 mA
Functions
-
With room temperature controllerNo
Dimensions
-
Built-in depth31 mm
-
Built-in depth flush-mounted boxes34 mm
-
Height71 mm
-
Width71 mm
-
Depth42 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourLight grey
-
RAL code7035
-
MaterialMetal, Plastic
Accessories
-
Has labelling fieldNo
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

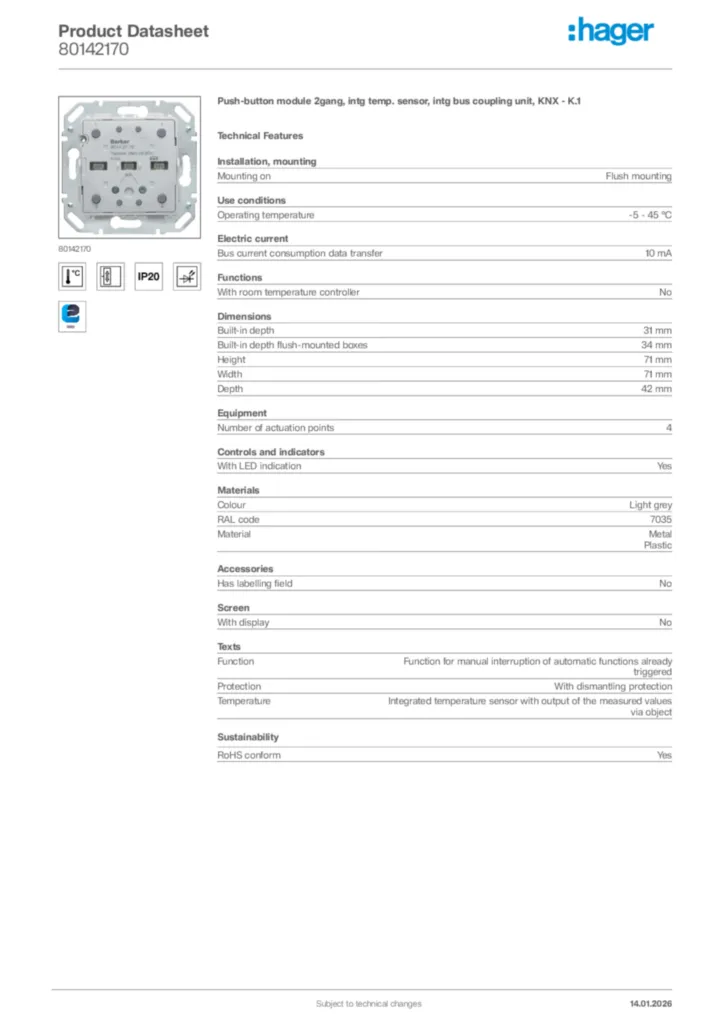

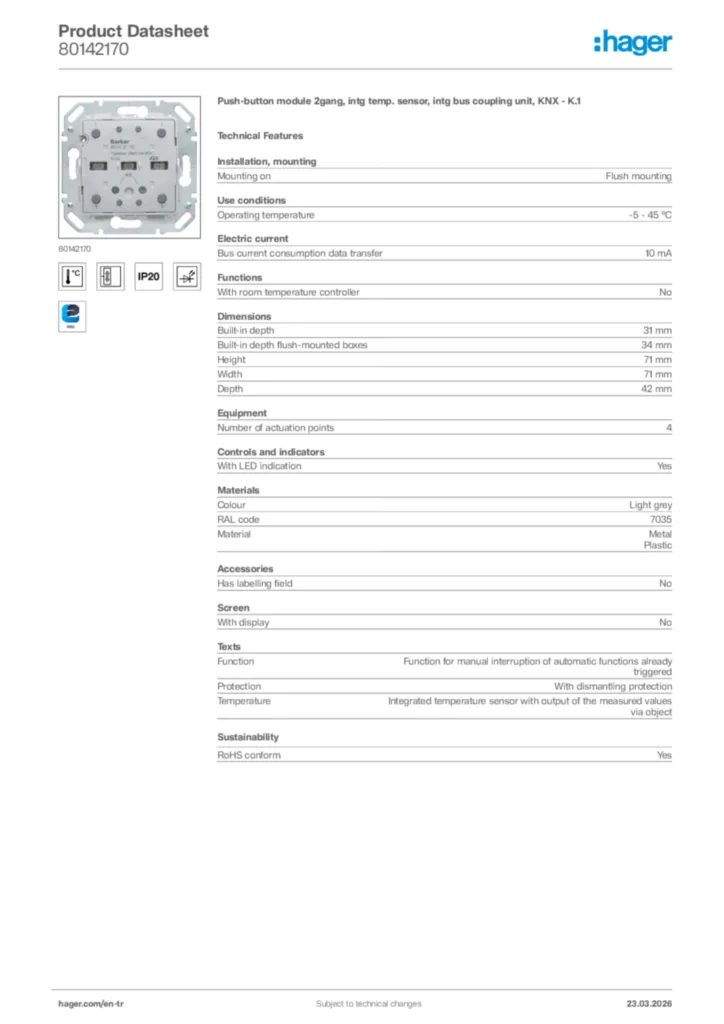

Product datasheet
Hager Product data sheet 80142170
Push-button module 2gang, intg temp. sensor, intg bus coupling unit, KNX - K.1
PDF -
Installation manual
Installation manual en-GB 2021-09-30
PDF1,32 MB
Installation manual pl-PL, ru-RU, tr-TR 2021-09-30
PDF1,36 MB -
KNX product database
ETS4-ETS5 - KNX Database for KNX Push Button xgang
KNX product database International 2020-01-01
KNXPROD558,41 kB -
Application Guide
Application description EASY for 801411XX, 801421XX - Push button 1-/2gang with bcu (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF2,11 MB
Application description ETS for 801411XX-801421XX - KNX push button module with integrated bus application unit (EN, 2021-10)
Application Guide en-GB 2021-10-12
PDF2,13 MB
Application description ETS for 801411XX-801421XX - KNX push button module with integrated bus application unit (TR, 2021-11)
Application Guide tr-TR 2021-11-29
PDF2,18 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-07-30
PDF268,69 kB
Declaration of Conformity
Declaration of conformity International 2021-07-30
PDF255,22 kB
