S.1/B.3/B.7 Push Button 3-gang, Thermostat/Label, Anthracite/Aluminium 75663785

EAN
4011334284031
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

S.1/B.3/B.7 Push Button 3-gang, Thermostat/Label, Anthracite/Aluminium

75663785

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Must-have accessories

Previous
Previous
75040001
75040001
Bus coupling unit flush-mtd, KNX
Add to a list
Add to a list

Technical properties

Install­a­tion, mounting
  • Mounting on
    Flush mounting
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Func­tions
  • With room temper­ature controller
    Yes
Dimen­sions
  • Height
    110.80 mm
  • Width
    55.80 mm
  • Depth
    13.85 mm
Equip­ment
  • Number of actu­ation points
    8
Controls and indic­ators
  • With LED indic­a­tion
    Yes
Mater­ials
  • Colour
    Anthra­cite
  • RAL code
    7021
  • Material
    Ther­mo­plastic
  • Surface finish
    Glossy
Accessories
  • Has labelling field
    Yes
Screen
  • With display
    Yes
Texts
  • Func­tion
    For switch, push-but­ton, dimmer, blind and ther­mo­stat func­tions, With valve protec­tion func­tion
  • Oper­ating mode
    Controller oper­ating modes: comfort, standby, night and frost/heat protec­tion mode
  • Protec­tion
    With dismant­ling protec­tion
  • Temper­ature
    Temper­ature meas­ure­ment via internal and/or external sensor with mean value form­a­tion

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

REACH declaration 75663785
PDF
RoHS report 75663785
PDF

Downloads

  • Image 75663785 | Hager

    Product Image 75663785

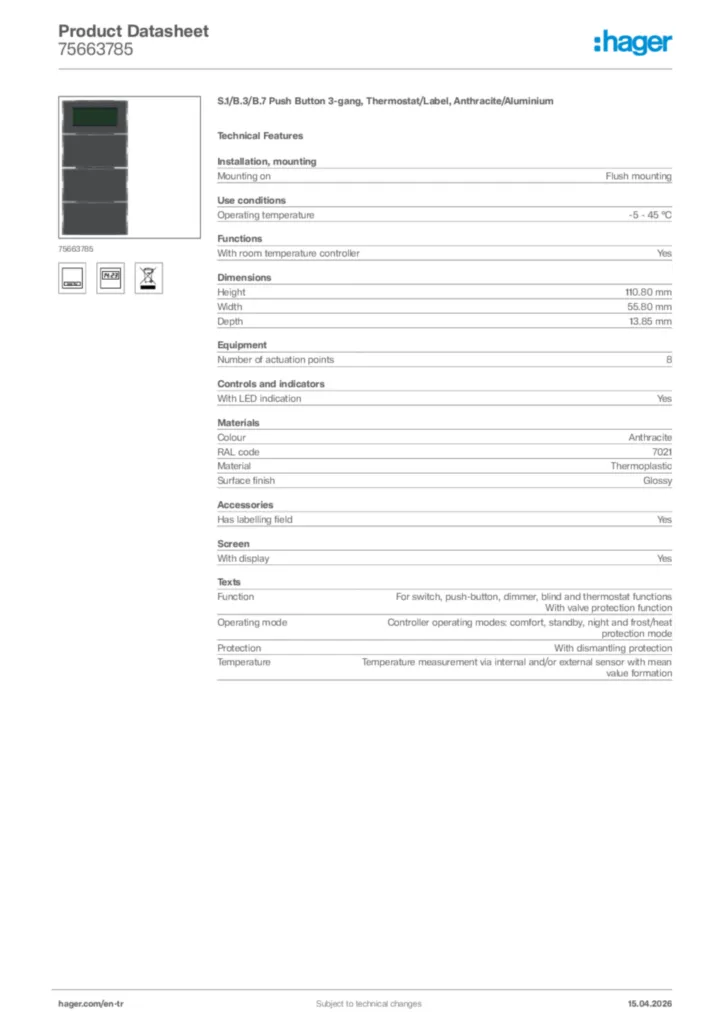

  • Product datasheet

    Image Hager Product data sheet 75663785 | Hager

    Hager Product data sheet 75663785

    S.1/B.3/B.7 Push Button 3-gang, Thermostat/Label, Anthracite/Aluminium

    PDF

  • Installation manual

    Image Manual for 756627xx-756637xx-756657xx - Push-button 2gang with thermostat (EN, 2021-12) | Hager

    Manual for 756627xx-756637xx-756657xx - Push-button 2gang with thermostat (EN, 2021-12)

    Installation manual en-GB 2022-09-12

    PDF
    1,35 MB

  • Tool

    Image Label templates (DesignPro 2000) for S.x/B.x touch sensors - 7516xx-7566xx, as from: 2013-01 | Hager

    Label templates (DesignPro 2000) for S.x/B.x touch sensors - 7516xx-7566xx, as from: 2013-01

    Tool de-DE 2023-10-30

    ZIP
    68,54 kB

  • KNX product database

    Image KNX plugin for 7566xx - Push-button with thermostat (V104) | Hager

    KNX plugin for 7566xx - Push-button with thermostat (V104)

    KNX product database International 2023-08-25

    EXE
    7,93 MB

  • Application Guide

    Image Application description ETS for 756627xx-756637xx-756657xx - Push-button with thermostat (EN, 2006-07) | Hager

    Application description ETS for 756627xx-756637xx-756657xx - Push-button with thermostat (EN, 2006-07)

    Application Guide en-GB, pl-PL 2020-01-01

    PDF
    2,04 MB

  • Declaration of conformity

    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    261,26 kB
    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    262,21 kB
